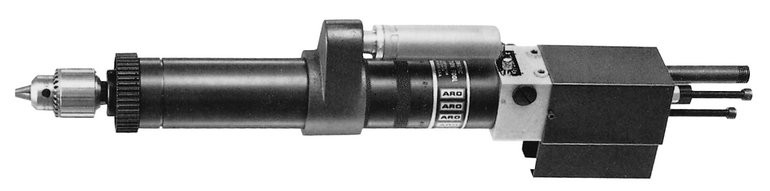

When a production drilling process calls for controlled feed with a high-speed spindle, the Ingersoll Rand 8255-172-1 provides a 0.50 HP (.37 kW) pneumatic motor, 17,000 RPM free speed, and single gear reduction in the Par-A-Matic Series. The 1-1/4 in. (32 mm) stroke configuration is suited to compact automated and fixture-mounted drilling setups where repeatable spindle travel is important. The model is listed with a 5/16 in. (7.9 mm) steel capacity, while the manufacturer's material-specific table lists a 1/64 in. capacity in SAE 1213 steel, 1/32 in. in 2024-T4 aluminum, and 1/16 in. in wood, medium or FRP.
The Par-A-Matic feed system uses compressed air for spindle rotation and feed/control functions. Its double-acting air piston provides controlled forward and retract strokes, while needle-valve controls allow adjustment of those strokes. An adjustment screw provides infinite stroke-length settings, and the built-in four-way valve supports manual or remote operation. Ball-bearing spindle support provides precision spindle guidance, while the muffled exhaust helps reduce operating noise. The 8255-172-1 produces 170 lb (756 N) thrust at 90 PSI, consumes 2.3 ft³/cycle (65 L/cycle) at working speed, and uses a 5/16 in. (7.9 mm) standard chuck.
Type: Self-Feed Air Drill | Series: Par-A-Matic | Model: 8255-172-1 | Capacity: 5/16 in. | Motor Power: 0.50 HP (.37 kW) | Free Speed: 17,000 RPM | Gear Reduction: Single | Stroke Length: 1-1/4 in. (32 mm) | Thrust: 170 lb (756 N) at 90 PSI | Air Consumption: 2.3 ft³/cycle (65 L/cycle) at working speed | Sound Level: 74 dB(A) | Standard Chuck Capacity: 5/16 in. (7.9 mm) | Air Inlet: 1/4 in. NPT Male | Control Ports: 1/8 in. NPTF Female | Spindle Thread: 1/2"-20 Male | Recommended Hose I.D.: 5/16 in. | Recommended Operating Pressure: 90 PSI (6.2 bar)
Features:
- The Par-A-Matic self-feed configuration provides controlled forward and retract movement for repeatable production drilling cycles.
- The 0.50 HP rotary-vane air motor provides spindle rotation while maintaining a pneumatic drive configuration.
- Single gear reduction provides the drive configuration specified for the 17,000 RPM model.
- The double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle-valve controls allow adjustment of the forward and retract strokes.
- The adjustment screw provides infinite stroke-length settings for application-specific feed travel.
- The built-in four-way valve permits both manual and remote operation.
- Ball-bearing spindle support provides precision spindle guidance.
- The muffled exhaust helps provide a quieter work environment during pneumatic operation.
- The 5/16 in. standard chuck accommodates compatible drill tooling within the manufacturer's specified capacity.
NON-RETURNABLE. MADE TO ORDER.
Applications:
- Production drilling — performing repeatable drilling cycles where controlled pneumatic feed and retract movement are required.
- Fixture-mounted machining — integrating the drill into dedicated fixtures where the 1-1/4 in. stroke matches the required spindle travel.
- Automated secondary machining — incorporating a self-feed drilling operation into production equipment using the built-in pneumatic controls.
- Metalworking — drilling compatible materials within the manufacturer's material-specific capacity ratings.
- Manufacturing equipment — using the manual or remote four-way valve for suitable production control arrangements.
FAQs:
- Q: What is the free speed of the 8255-172-1?
A: The 8255-172-1 has a 17,000 RPM free speed. - Q: What does the “-1” suffix indicate?
A: The -1 configuration identifies the 1-1/4 in. (32 mm) stroke version of the 8255-172 model. - Q: What does single gear reduction mean?
A: It identifies the single gear reduction configuration used in the spindle drive of this 17,000 RPM model. - Q: What is the standard chuck capacity?
A: The standard chuck capacity is 5/16 in. (7.9 mm). - Q: How much thrust does the drill provide?
A: The manufacturer specifies 170 lb (756 N) thrust at 90 PSI. - Q: What is the air consumption?
A: Air consumption is specified at 2.3 ft³/cycle (65 L/cycle) at working speed. - Q: Can the 8255-172-1 be operated remotely?
A: Yes. The built-in four-way valve permits both manual and remote operation. - Q: What are the material-specific drilling capacities?
A: The manufacturer's table lists 1/64 in. (0.4 mm) in SAE 1213 steel, 1/32 in. (0.8 mm) in 2024-T4 aluminum, and 1/16 in. (1.6 mm) in wood, medium or FRP. No Type 304 stainless-steel capacity is listed for this model.
| SKU | STROKE LENGTHS IN (MM) |
FREE SPEED RPM |
*NOMINAL DRILLING CAPACITIES | THRUST @ 90PSI LBS (N) |
AIR CONSP.‡ AT WORKING SPEED FT³/CYCLE (L/CYCLE) |
SOUND LEVEL DBA |
STANDARD CHUCK CAPACITY IN (MM) |
GEAR REDUCTION |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL TYPE 304 |
STEEL SAE 1213 |
ALUMINUM 2024-T4 |
WOOD MED. OR FRP |
||||||||
| BANT-A-MATIC SERIES | |||||||||||
| 8245-203-1* | 1-1/4” (32) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-1 | 1-1/4” (32) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-1 | 1-1/4” (32) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-1 | 1-1/4” (32) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-1 | 1-1/4” (32) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-2 | 2.0” (51) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-2 | 2.0” (51) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-2 | 2.0” (51) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-2 | 2.0” (51) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-2 | 2.0” (51) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-3 | 3.0” (76) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-3 | 3.0” (76) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-3 | 3.0” (76) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-3 | 3.0” (76) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-3 | 3.0” (76) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| PAR-A-MATIC SERIES | |||||||||||
| *8255-172-1 | 1-1/4” (32) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-1 | 1-1/4” (32) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-1 | 1-1/4” (32) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-1 | 1-1/4” (32) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-1 | 1-1/4” (32) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (7.9) | Single |
| 8255-A14-1 | 1-1/4” (32) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-1 | 1-1/4” (32) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-1 | 1-1/4” (32) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
