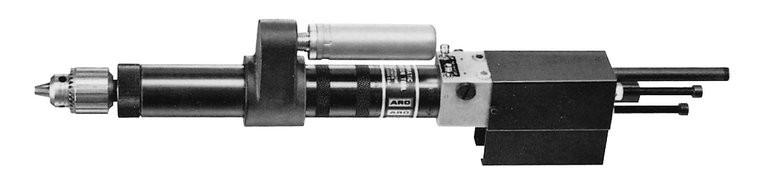

Ingersoll Rand 8245-203-1 is a Bant-A-Matic Series Self-Feed Air Drill designed for automated drilling applications where controlled spindle rotation and feed are required. This pneumatic drill combines a 0.25 HP air motor with a high 19,000 RPM free speed and single gear reduction, making it suited to small-diameter drilling in production and secondary machining operations. The model has a 3/16 in. nominal chuck capacity and a 1-1/4 in. stroke length.
The 8245-203-1 provides 90 lb (400 N) thrust and uses approximately 1.5 ft³/cycle (42 L/cycle) of air at working speed. Its self-feed design uses pneumatic feed and control functions for forward and retract movement, while needle-valve controls allow adjustment of feed and retract strokes. An adjustment screw provides infinite stroke-length settings, and ball-bearing spindle support is used for precision and service life. The tool has a 77 dB(A) sound level and a standard 1/4 in. chuck capacity.
Type: Self-Feed Air Drill | Series: Bant-A-Matic | Model: 8245-203-1 | Motor Power: 0.25 HP | Free Speed: 19,000 RPM | Gear Reduction: Single | Stroke Length: 1-1/4 in. (32 mm) | Thrust: 90 lb (400 N) | Air Consumption: 1.5 ft³/cycle (42 L/cycle) | Sound Level: 77 dB(A) | Standard Chuck Capacity: 1/4 in. (6.4 mm)
Features:
- The self-feed design provides automated forward and retract motion for production drilling applications.
- The rotary vane air motor provides the spindle rotation required for pneumatic drilling.
- Double-acting air-piston feed provides controlled forward and retract strokes.
- Needle-valve controls allow adjustment of the forward and retracting strokes.
- The adjustment screw provides infinite stroke-length settings for application-specific drilling requirements.
- Ball-bearing spindle support is designed to provide precision and long service life.
- The single gear reduction configuration provides the 19,000 RPM free speed specified for this model.
- The damped exhaust helps reduce operating noise during use.
- The 1/4 in. standard chuck accommodates the drill tooling specified for the application.
NON-RETURNABLE. MADE TO ORDER.
Applications:
- Automated drilling — integrating controlled drilling into fixtured or production machining processes.
- Secondary machining — performing repetitive drilling operations where consistent feed and retract control are required.
- Small-diameter drilling — working with the nominal drilling capacities specified for steel, aluminum, and wood or FRP materials.
- Production drilling — using the self-feed mechanism to reduce the need for manual feed control during repetitive operations.
- Fixture-based machining — incorporating a compact pneumatic drill into dedicated drilling equipment where the model's speed, stroke, thrust, and chuck capacity are appropriate.
FAQs:
- Q: What is the free speed of the 8245-203-1?
A: The 8245-203-1 has a 19,000 RPM free speed. - Q: What is the motor power?
A: This self-feed drill uses a 0.25 HP pneumatic motor. - Q: What does “single gear reduction” mean?
A: It identifies the single-stage gear reduction used in this model's spindle drive configuration. - Q: What is the stroke length?
A: The 8245-203-1 has a 1-1/4 in. (32 mm) stroke length. - Q: What is the standard chuck capacity?
A: The standard chuck capacity is 1/4 in. (6.4 mm). - Q: How much thrust does the drill provide?
A: The specified thrust is 90 lb (400 N). - Q: What is the air consumption?
A: Air consumption is specified at 1.5 ft³/cycle (42 L/cycle) at working speed. - Q: What are the nominal drilling capacities?
A: The catalog lists 1/64 in. (0.4 mm) for SAE 1213 steel, 1/32 in. (0.8 mm) for 2024-T4 aluminum, and 1/16 in. (1.6 mm) for wood, medium or FRP. No stainless-steel drilling capacity is listed for this model.
| SKU | STROKE LENGTHS IN (MM) |
FREE SPEED RPM |
*NOMINAL DRILLING CAPACITIES | THRUST @ 90PSI LBS (N) |
AIR CONSP.‡ AT WORKING SPEED FT³/CYCLE (L/CYCLE) |
SOUND LEVEL DBA |
STANDARD CHUCK CAPACITY IN (MM) |
GEAR REDUCTION |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL TYPE 304 |
STEEL SAE 1213 |
ALUMINUM 2024-T4 |
WOOD MED. OR FRP |
||||||||
| BANT-A-MATIC SERIES | |||||||||||
| 8245-203-1* | 1-1/4” (32) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-1 | 1-1/4” (32) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-1 | 1-1/4” (32) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-1 | 1-1/4” (32) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-1 | 1-1/4” (32) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-2 | 2.0” (51) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-2 | 2.0” (51) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-2 | 2.0” (51) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-2 | 2.0” (51) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-2 | 2.0” (51) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-3 | 3.0” (76) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-3 | 3.0” (76) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-3 | 3.0” (76) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-3 | 3.0” (76) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-3 | 3.0” (76) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| PAR-A-MATIC SERIES | |||||||||||
| *8255-172-1 | 1-1/4” (32) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-1 | 1-1/4” (32) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-1 | 1-1/4” (32) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-1 | 1-1/4” (32) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-1 | 1-1/4” (32) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (7.9) | Single |
| 8255-A14-1 | 1-1/4” (32) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-1 | 1-1/4” (32) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-1 | 1-1/4” (32) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
Looking for more information about Ingersoll Rand Self-Feed Air Drill? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Self-Feed Air Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Feed Drill
- RPM
- 19000
- Gear Reduction
- Single
- Stroke Length (in.)
- 1 - 1/4
- Nominal Drilling Capacities Wood Med. or FRP
- 1/16
- Nominal Drilling Capacities Steel SAE 1213
- 1/64
- Nominal Drilling Capacities Aluminum 2024-T4
- 1/32
- Capacity (in.)
- 3/16
- Power (hp)
- .25
- Air Inlet
- 1/8" NPT Male
- Hose Size (in.)
- 1/4
