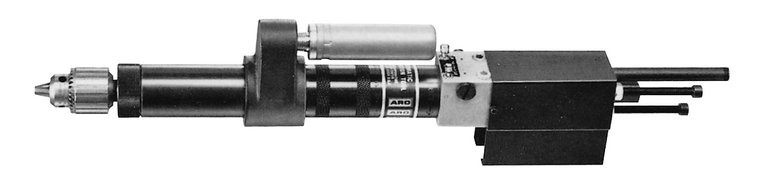

Ingersoll Rand 8245-B30-3 is a Bant-A-Matic Series Self-Feed Air Drill built for repetitive production drilling and fixture-mounted machining where controlled spindle feed and retract movement are required. This model combines a 0.25 HP pneumatic motor with a 2,700 RPM free speed and single gear reduction. The -3 configuration provides a 3 in. (76 mm) stroke, giving automated fixtures additional spindle travel for drilling cycles that require an extended feed stroke. The model is listed with a 3/16 in. capacity.
The Bant-A-Matic self-feed mechanism uses a double-acting air piston for controlled forward and retract strokes. Needle-valve controls allow adjustment of the forward and retract strokes, while the adjustment screw provides infinite stroke-length settings. A built-in four-way valve enables both manual and remote operation, making the drill suitable for integration into production equipment. Ball-bearing spindle support provides precision spindle guidance, and the muffled exhaust helps reduce operating noise. The 8245-B30-3 provides 90 lb (400 N) thrust at 90 PSI, uses 1.5 ft³/cycle (42 L/cycle) of air at working speed, and has a 1/4 in. (6.4 mm) standard chuck capacity.
Type: Self-Feed Air Drill | Series: Bant-A-Matic | Model: 8245-B30-3 | Capacity: 3/16 in. | Motor Power: 0.25 HP (.20 kW) | Free Speed: 2,700 RPM | Gear Reduction: Single | Stroke Length: 3 in. (76 mm) | Thrust: 90 lb (400 N) at 90 PSI | Air Consumption: 1.5 ft³/cycle (42 L/cycle) at working speed | Sound Level: 77 dB(A) | Standard Chuck Capacity: 1/4 in. (6.4 mm)
Features:
- The built-in four-way valve enables both manual and remote operation.
- The double-acting air piston provides smooth, controlled forward and retract strokes.
- Needle-valve controls allow adjustment of the forward and retract strokes.
- The adjustment screw provides infinite stroke-length settings for controlled feed travel.
- Ball-bearing spindle support provides precision spindle guidance.
- The muffled exhaust helps provide a quieter work environment during pneumatic operation.
- The single gear reduction configuration provides the specified 2,700 RPM free speed.
- The 3 in. stroke configuration provides additional spindle travel for compatible production fixtures.
NON-RETURNABLE. MADE TO ORDER.
Applications:
- Production drilling — performing repetitive holemaking operations where controlled pneumatic feed and retract movement are required.
- Fixture-mounted machining — integrating the drill into dedicated production fixtures where a 3 in. stroke is required.
- Metal fabrication — drilling compatible steel components within the manufacturer's material-specific capacity ratings.
- Secondary machining — adding repeatable drilling cycles to manufacturing equipment without continuous manual feed control.
- Automated drilling equipment — using the four-way valve for manual or remote operation in suitable pneumatic control systems.
FAQs:
- Q: What is the free speed of the 8245-B30-3?
A: The 8245-B30-3 has a 2,700 RPM free speed. - Q: What does the “-3” suffix indicate?
A: The -3 configuration identifies the 3 in. (76 mm) stroke version of the 8245-B30 model family. - Q: What does single gear reduction mean?
A: It identifies the single gear reduction configuration used in the spindle drive of this 2,700 RPM model. - Q: What is the drilling capacity?
A: The product is listed with a 3/16 in. capacity. The manufacturer's material-specific nominal capacities are 1/16 in. (1.6 mm) in Type 304 stainless steel, 1/8 in. (3.2 mm) in SAE 1213 steel, 3/16 in. (4.8 mm) in 2024-T4 aluminum, and 3/16 in. (4.8 mm) in wood, medium or FRP. - Q: How much thrust does the drill provide?
A: The specified thrust is 90 lb (400 N) at 90 PSI. - Q: What is the air consumption?
A: Air consumption is 1.5 ft³/cycle (42 L/cycle) at working speed. - Q: What is the standard chuck capacity?
A: The standard chuck capacity is 1/4 in. (6.4 mm). - Q: Can this drill be operated remotely?
A: Yes. The built-in four-way valve enables both manual and remote operation.
| SKU | STROKE LENGTHS IN (MM) |
FREE SPEED RPM |
*NOMINAL DRILLING CAPACITIES | THRUST @ 90PSI LBS (N) |
AIR CONSP.‡ AT WORKING SPEED FT³/CYCLE (L/CYCLE) |
SOUND LEVEL DBA |
STANDARD CHUCK CAPACITY IN (MM) |
GEAR REDUCTION |
|||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL TYPE 304 |
STEEL SAE 1213 |
ALUMINUM 2024-T4 |
WOOD MED. OR FRP |
||||||||
| BANT-A-MATIC SERIES | |||||||||||
| 8245-203-1* | 1-1/4” (32) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-1 | 1-1/4” (32) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-1 | 1-1/4” (32) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-1 | 1-1/4” (32) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-1 | 1-1/4” (32) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-2 | 2.0” (51) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-2 | 2.0” (51) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-2 | 2.0” (51) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-2 | 2.0” (51) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-2 | 2.0” (51) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| 8245-203-3 | 3.0” (76) | 19,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8245-101-3 | 3.0” (76) | 10,000 | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | Double | ||||
| 8245-B45-3 | 3.0” (76) | 4,400 | 1/32 (0.8) | 1/16 (1.6) | 1/8 (3.2) | 5/32 (4.0) | 90 (400) | 1.5 (42) | 77 | 1/4 (6.4) | Single |
| 8245-B30-3 | 3.0” (76) | 2,700 | 1/16 (1.6) | 1/8 (3.2) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8245-B8-3 | 3.0” (76) | 900 | 3/32 (2.4) | 3/16 (4.8) | 1/4 (6.4) | 5/16 (7.9) | Double | ||||
| PAR-A-MATIC SERIES | |||||||||||
| *8255-172-1 | 1-1/4” (32) | 17,000 | — | 1/64 (0.4) | 1/32 (0.8) | 1/16 (1.6) | Single | ||||
| 8255-101-1 | 1-1/4” (32) | 10,000 | — | 1/32 (0.8) | 1/16 (1.6) | 5/32 (4.0) | Double | ||||
| 8255-A50-1 | 1-1/4” (32) | 5,000 | — | 5/64 (2.0) | 3/16 (4.8) | 3/16 (4.8) | Single | ||||
| 8255-A28-1 | 1-1/4” (32) | 2,800 | 1/16 (1.6) | 9/64 (3.6) | 1/4 (6.4) | 1/4 (6.4) | Single | ||||
| 8255-A21-1 | 1-1/4” (32) | 2,100 | 7/64 (2.8) | 7/32 (5.6) | 9/32 (7.1) | 5/16 (7.9) | 170 (756) | 2.3 (65) | 74 | 5/16 (7.9) | Single |
| 8255-A14-1 | 1-1/4” (32) | 1,450 | 5/32 (4.0) | 1/4 (6.4) | 5/16 (7.9) | 3/8 (9.5) | Double | ||||
| 8255-A8-1 | 1-1/4” (32) | 850 | 11/64 (4.4) | 9/32 (7.1) | 21/64 (8.3) | 25/64 (9.9) | Double | ||||
| 8255-A5-1 | 1-1/4” (32) | 500 | 1/4 (6.4) | 5/16 (7.9) | 11/32 (8.7) | 13/32 (10.3) | Double | ||||
Looking for more information about Ingersoll Rand Self-Feed Air Drill? Click here to view the Catalog
For help choosing the correct Ingersoll Rand Self-Feed Air Drills for your application, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Feed Drill
- RPM
- 2700
- Gear Reduction
- Single
- Stroke Length (in.)
- 3
- Nominal Drilling Capacities Wood Med. or FRP
- 3/16
- Nominal Drilling Capacities Stainless Steel Type 304
- 1/16
- Nominal Drilling Capacities Steel SAE 1213
- 1/8
- Nominal Drilling Capacities Aluminum 2024-T4
- 3/16
- Capacity (in.)
- 3/16
- Power (hp)
- .25
- Air Inlet
- 1/8" NPT Male
- Hose Size (in.)
- 1/4
