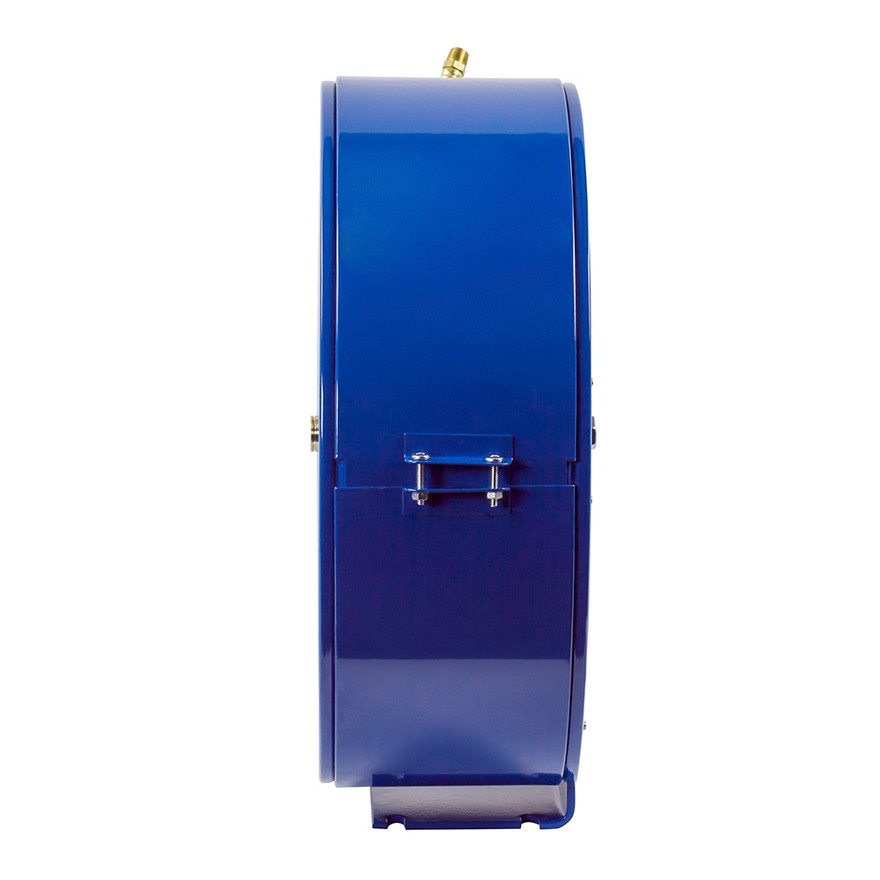

Built for medium-pressure hydraulic and fluid transfer applications, the Coxreels ENM-N-350 Spring Rewind Enclosed Hose Reel combines automatic hose retrieval with the added protection of a fully enclosed cabinet. Part of the EN Series, this reel includes 50 feet of 3/8" inside diameter hose and is rated for a maximum working pressure of 3000 PSI, making it well suited for demanding industrial service where reliable hose management and equipment protection are essential. The spring rewind mechanism (a self-retracting system that automatically rewinds the hose after use) helps reduce manual handling while keeping hoses organized and ready for the next task.
The enclosed cabinet helps protect the hose from dirt, dust, moisture, UV exposure, and incidental workplace damage, promoting cleaner operation and reducing unnecessary hose wear. With its combination of automatic rewind, enclosed protection, and medium-pressure capability, the ENM-N-350 is an excellent choice for industrial maintenance, manufacturing, and mobile service applications.
Type: Spring Rewind Enclosed Hose Reel | Series: EN Series | Hose I.D.: 3/8" | Hose Length: 50 ft | Maximum Pressure: 3000 PSI
Features:
- Automatic spring rewind mechanism provides smooth, controlled hose retraction after each use.
- Fully enclosed cabinet helps protect the hose from dirt, moisture, UV exposure, and workplace debris.
- Supplied with 50 feet of 3/8-inch inside diameter hose for immediate installation.
- Rated for working pressures up to 3000 PSI when operated within the manufacturer's specified service conditions.
- Enclosed design helps reduce hose abrasion, tangling, and accidental damage.
- Compact installation promotes a safer, cleaner, and more organized work environment.
Made in USA:
Applications:
- Medium-pressure hydraulic and fluid transfer systems in industrial facilities.
- Manufacturing plants requiring protected hose storage and automatic hose management.
- Maintenance and MRO departments servicing machinery and production equipment.
- Mobile service vehicles where enclosed hose protection improves equipment longevity.
- Industrial washdown and compatible fluid transfer applications operating within the reel's pressure rating.
FAQs:
- Q: Does this reel include a hose?
A: Yes. Since this model is not designated as "Less Hose," it is supplied with a 50-foot, 3/8-inch hose as specified by the manufacturer. - Q: What advantage does the enclosed cabinet provide?
A: The enclosed housing helps protect the hose from dirt, moisture, UV exposure, and accidental impact, helping maintain cleaner operation and reduce hose wear. - Q: Does the hose retract automatically?
A: Yes. The spring rewind mechanism automatically retracts the hose after use, improving workplace organization and reducing manual hose handling. - Q: Is this reel suitable for 3000 PSI service?
A: Yes. The ENM-N-350 is rated for a maximum working pressure of 3000 PSI when used with the supplied hose and within the manufacturer's specified operating conditions.

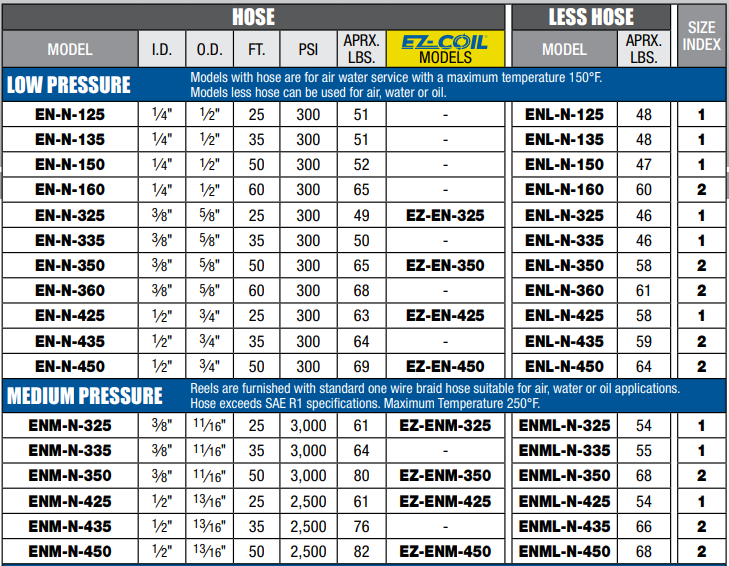

| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| EN-N-125 | 1/4" | 1/2" | 25 | 300 | 51 | - | ENL-N-125 | 48 | 1 |
| EN-N-135 | 1/4" | 1/2" | 35 | 300 | 51 | - | ENL-N-135 | 48 | 1 |
| EN-N-150 | 1/4" | 1/2" | 50 | 300 | 52 | - | ENL-N-150 | 47 | 1 |
| EN-N-160 | 1/4" | 1/2" | 60 | 300 | 65 | - | ENL-N-160 | 60 | 2 |
| EN-N-325 | 3/8" | 5/8" | 25 | 300 | 49 | EZ-EN-325 | ENL-N-325 | 46 | 1 |
| EN-N-335 | 3/8" | 5/8" | 35 | 300 | 50 | - | ENL-N-335 | 46 | 1 |
| EN-N-350 | 3/8" | 5/8" | 50 | 300 | 65 | EZ-EN-350 | ENL-N-350 | 58 | 2 |
| EN-N-360 | 3/8" | 5/8" | 60 | 300 | 68 | - | ENL-N-360 | 61 | 2 |
| EN-N-425 | 1/2" | 3/4" | 25 | 300 | 63 | EZ-EN-425 | ENL-N-425 | 58 | 1 |
| EN-N-435 | 1/2" | 3/4" | 35 | 300 | 64 | - | ENL-N-435 | 59 | 2 |
| EN-N-450 | 1/2" | 3/4" | 50 | 300 | 69 | EZ-EN-450 | ENL-N-450 | 64 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| ENM-N-325 | 3/8" | 1-1/16" | 25 | 3,000 | 61 | EZ-ENM-325 | ENML-N-325 | 54 | 1 |
| ENM-N-335 | 3/8" | 1-1/16" | 35 | 3,000 | 64 | - | ENML-N-335 | 55 | 1 |
| ENM-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 80 | EZ-ENM-350 | ENML-N-350 | 68 | 2 |
| ENM-N-425 | 1/2" | 13/16" | 25 | 2,500 | 61 | EZ-ENM-425 | ENML-N-425 | 54 | 1 |
| ENM-N-435 | 1/2" | 13/16" | 35 | 2,500 | 76 | - | ENML-N-435 | 66 | 2 |
| ENM-N-450 | 1/2" | 13/16" | 50 | 2,500 | 82 | EZ-ENM-450 | ENML-N-450 | 68 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| ENH-N-125 | 1/4" | 9/16" | 25 | 5,000 | 60 | EZ-ENH-125 | ENHL-N-125 | 54 | 1 |
| ENH-N-135 | 1/4" | 9/16" | 35 | 5,000 | 63 | - | ENHL-N-135 | 55 | 1 |
| ENH-N-150 | 1/4" | 9/16" | 50 | 5,000 | 79 | EZ-ENH-150 | ENHL-N-150 | 68 | 2 |
| ENH-N-160 | 1/4" | 9/16" | 60 | 5,000 | 85 | - | ENHL-N-160 | 71 | 2 |
| ENH-N-325 | 3/8" | 1-1/16" | 25 | 4,000 | 61 | - | ENHL-N-325 | 54 | 1 |
| ENH-N-335 | 3/8" | 1-1/16" | 35 | 4,000 | 76 | - | ENHL-N-335 | 67 | 2 |
| ENH-N-350 | 3/8" | 1-1/16" | 50 | 4,000 | 80 | EZ-ENH-350 | ENHL-N-350 | 68 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
