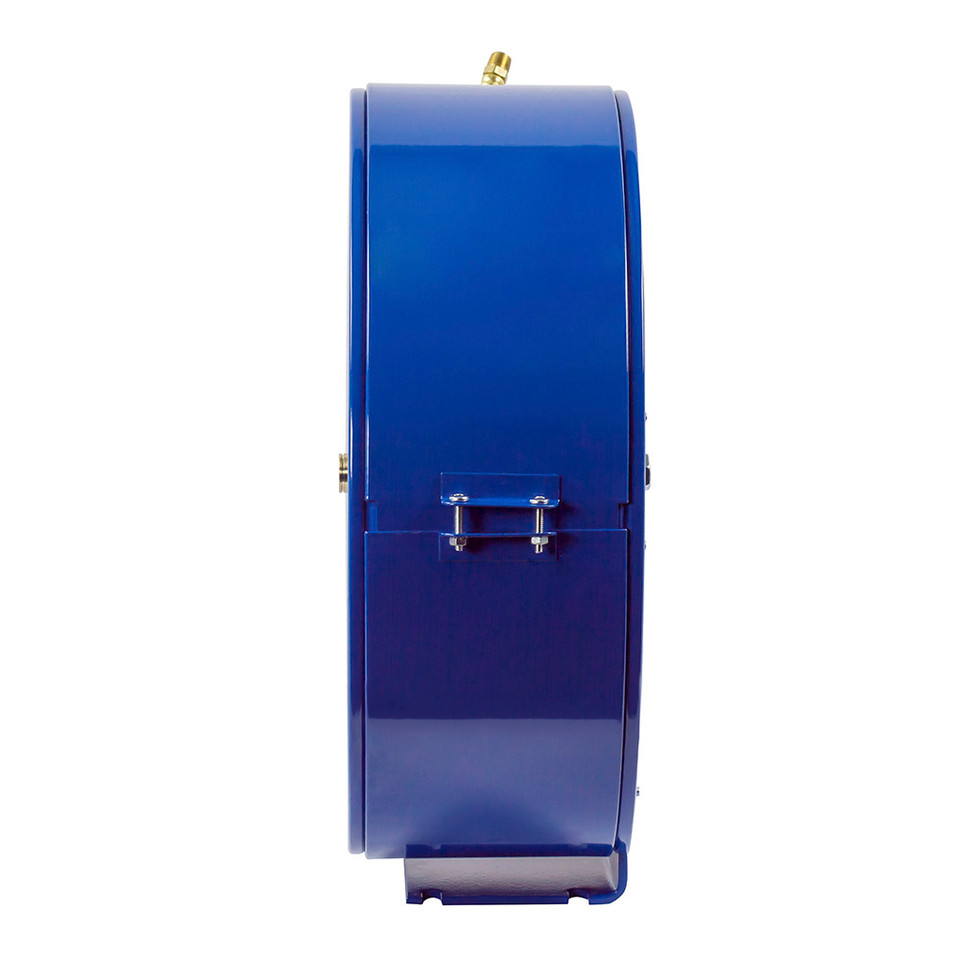

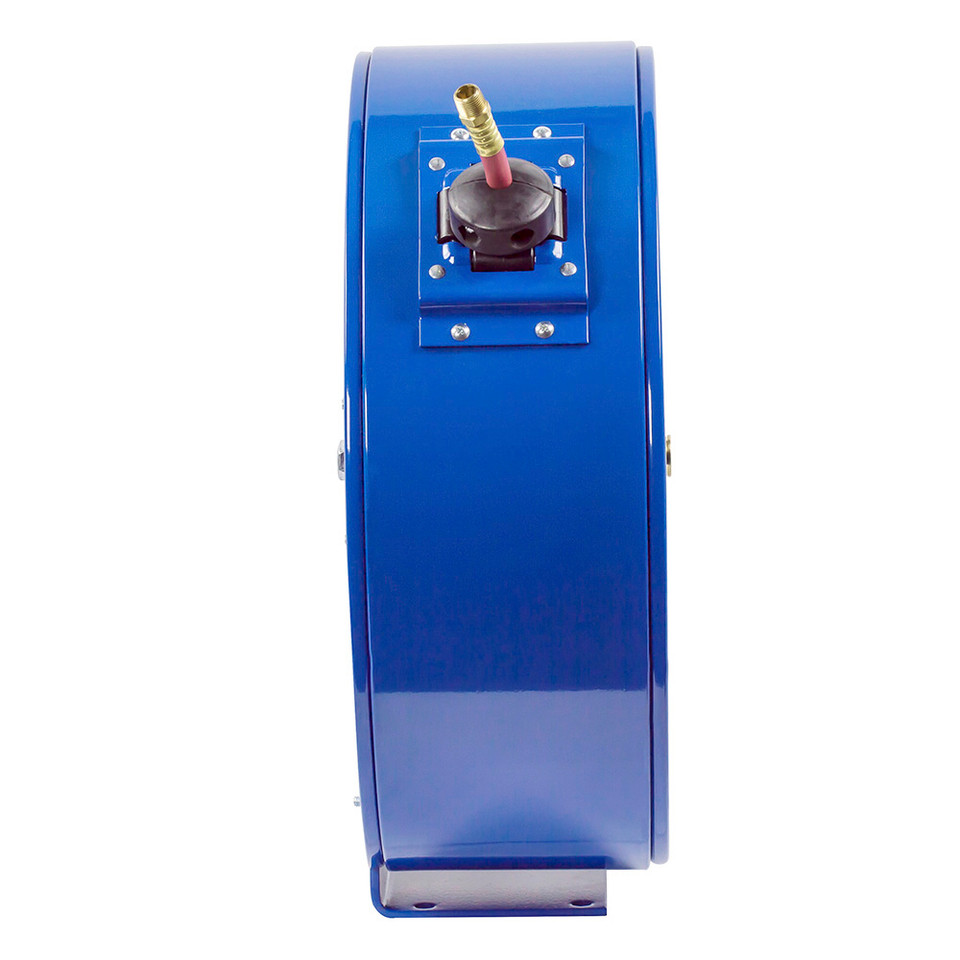

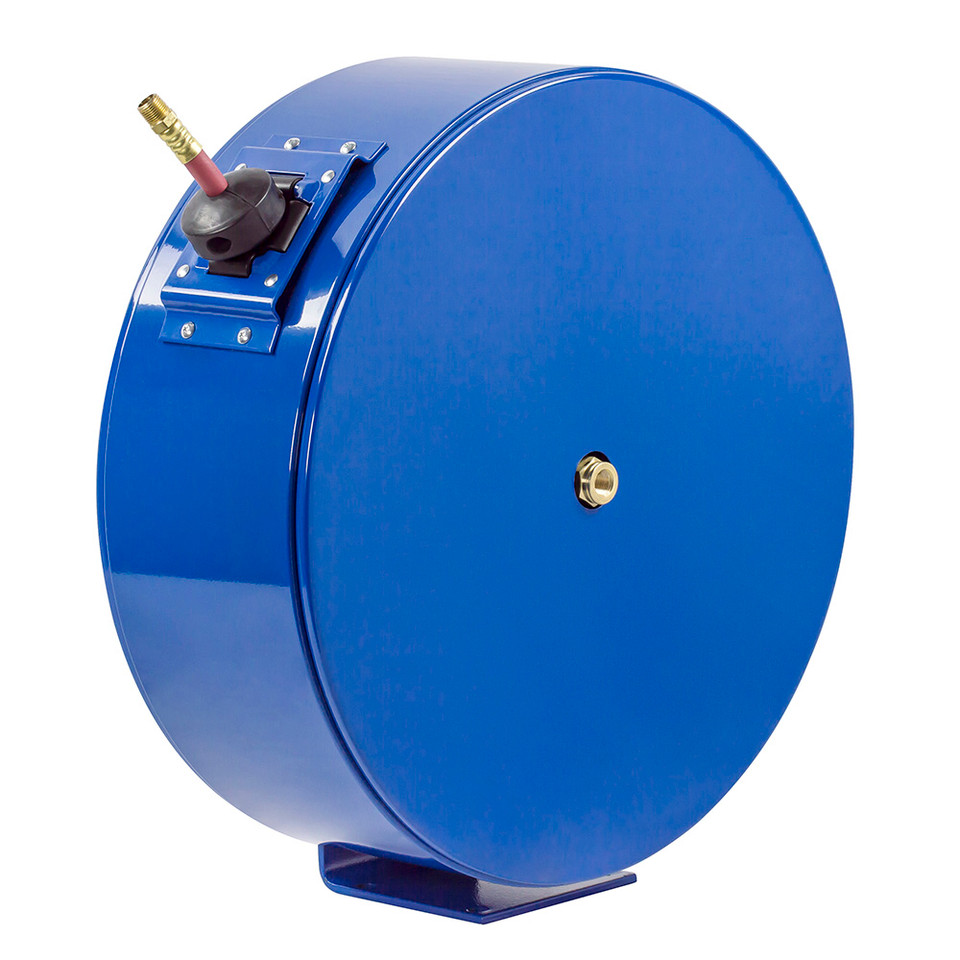

Built for protecting hose while providing fast, automatic retrieval, the Coxreels EN-N-125 Spring Rewind Enclosed Hose Reel is an excellent solution for compressed air and other low-pressure fluid applications. As part of the EN Series, this enclosed reel includes 25 feet of 1/4" inside diameter hose and is rated for a maximum working pressure of 300 PSI. The spring rewind mechanism (a self-retracting system that automatically rewinds the hose after use) helps keep hoses neatly stored, reducing clutter, minimizing trip hazards, and improving overall workplace efficiency.
Its fully enclosed housing helps protect the hose from dirt, moisture, UV exposure, and accidental impact, making it well suited for manufacturing facilities, maintenance shops, service bays, and commercial workspaces where clean, organized hose storage is important. The compact design provides convenient hose access while helping extend hose service life.
Type: Spring Rewind Enclosed Hose Reel | Series: EN Series | Hose I.D.: 1/4" | Hose Length: 25 ft | Maximum Pressure: 300 PSI
Features:
- Automatic spring rewind system delivers smooth, controlled hose retraction after each use.
- Fully enclosed cabinet helps protect the hose from dust, dirt, moisture, UV exposure, and workplace debris.
- Supplied with 25 feet of 1/4-inch inside diameter hose for ready-to-use installation.
- Rated for working pressures up to 300 PSI when used within the manufacturer's specified service conditions.
- Compact enclosed design helps minimize hose wear, tangling, and unnecessary abrasion.
- Promotes a cleaner, safer, and more organized work environment by keeping hose securely stored when not in use.
Made in USA:
Applications:
- Compressed air systems in industrial manufacturing and production facilities.
- Automotive repair shops and fleet maintenance service bays.
- Machine shops and maintenance departments requiring protected hose storage.
- Commercial workshops where automatic hose retrieval improves efficiency and safety.
- General-purpose compressed air and compatible low-pressure fluid transfer applications.
FAQs:
- Q: Does this reel include a hose?
A: Yes. Since this model is not designated as "Less Hose," it includes a 25-foot, 1/4-inch hose as specified by the manufacturer. - Q: What is the advantage of an enclosed hose reel?
A: The enclosed housing helps protect the hose from dirt, moisture, UV exposure, and accidental damage while maintaining a cleaner installation and reducing hose wear. - Q: Does the hose retract automatically?
A: Yes. The spring rewind mechanism automatically retracts the hose after use, reducing manual handling and helping keep the workspace organized. - Q: Can this reel be used for compressed air service?
A: Yes. The EN-N-125 is suitable for compressed air and other compatible low-pressure applications up to its 300 PSI maximum working pressure when used as specified by the manufacturer.
| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| EN-N-125 | 1/4" | 1/2" | 25 | 300 | 51 | - | ENL-N-125 | 48 | 1 |
| EN-N-135 | 1/4" | 1/2" | 35 | 300 | 51 | - | ENL-N-135 | 48 | 1 |
| EN-N-150 | 1/4" | 1/2" | 50 | 300 | 52 | - | ENL-N-150 | 47 | 1 |
| EN-N-160 | 1/4" | 1/2" | 60 | 300 | 65 | - | ENL-N-160 | 60 | 2 |
| EN-N-325 | 3/8" | 5/8" | 25 | 300 | 49 | EZ-EN-325 | ENL-N-325 | 46 | 1 |
| EN-N-335 | 3/8" | 5/8" | 35 | 300 | 50 | - | ENL-N-335 | 46 | 1 |
| EN-N-350 | 3/8" | 5/8" | 50 | 300 | 65 | EZ-EN-350 | ENL-N-350 | 58 | 2 |
| EN-N-360 | 3/8" | 5/8" | 60 | 300 | 68 | - | ENL-N-360 | 61 | 2 |
| EN-N-425 | 1/2" | 3/4" | 25 | 300 | 63 | EZ-EN-425 | ENL-N-425 | 58 | 1 |
| EN-N-435 | 1/2" | 3/4" | 35 | 300 | 64 | - | ENL-N-435 | 59 | 2 |
| EN-N-450 | 1/2" | 3/4" | 50 | 300 | 69 | EZ-EN-450 | ENL-N-450 | 64 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| ENM-N-325 | 3/8" | 1-1/16" | 25 | 3,000 | 61 | EZ-ENM-325 | ENML-N-325 | 54 | 1 |
| ENM-N-335 | 3/8" | 1-1/16" | 35 | 3,000 | 64 | - | ENML-N-335 | 55 | 1 |
| ENM-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 80 | EZ-ENM-350 | ENML-N-350 | 68 | 2 |
| ENM-N-425 | 1/2" | 13/16" | 25 | 2,500 | 61 | EZ-ENM-425 | ENML-N-425 | 54 | 1 |
| ENM-N-435 | 1/2" | 13/16" | 35 | 2,500 | 76 | - | ENML-N-435 | 66 | 2 |
| ENM-N-450 | 1/2" | 13/16" | 50 | 2,500 | 82 | EZ-ENM-450 | ENML-N-450 | 68 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| ENH-N-125 | 1/4" | 9/16" | 25 | 5,000 | 60 | EZ-ENH-125 | ENHL-N-125 | 54 | 1 |
| ENH-N-135 | 1/4" | 9/16" | 35 | 5,000 | 63 | - | ENHL-N-135 | 55 | 1 |
| ENH-N-150 | 1/4" | 9/16" | 50 | 5,000 | 79 | EZ-ENH-150 | ENHL-N-150 | 68 | 2 |
| ENH-N-160 | 1/4" | 9/16" | 60 | 5,000 | 85 | - | ENHL-N-160 | 71 | 2 |
| ENH-N-325 | 3/8" | 1-1/16" | 25 | 4,000 | 61 | - | ENHL-N-325 | 54 | 1 |
| ENH-N-335 | 3/8" | 1-1/16" | 35 | 4,000 | 76 | - | ENHL-N-335 | 67 | 2 |
| ENH-N-350 | 3/8" | 1-1/16" | 50 | 4,000 | 80 | EZ-ENH-350 | ENHL-N-350 | 68 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
