Built for reliable compressed air and low-pressure fluid hose management, the Coxreels EN-N-150 Spring Rewind Enclosed Hose Reel combines automatic hose retrieval with the protection of a fully enclosed cabinet. As part of the EN Series, this reel includes 50 feet of 1/4" inside diameter hose and is rated for a maximum working pressure of 300 PSI. The spring rewind mechanism (a self-retracting system that automatically rewinds the hose after use) helps improve productivity by keeping the hose neatly stored, reducing trip hazards, and minimizing hose wear between jobs.
Its enclosed housing helps protect the hose from dust, dirt, moisture, UV exposure, and accidental impact, making it well suited for industrial facilities, automotive service centers, maintenance departments, and commercial workshops. The compact enclosed design keeps the hose readily accessible while helping maintain a cleaner and more organized work environment.
Type: Spring Rewind Enclosed Hose Reel | Series: EN Series | Hose I.D.: 1/4" | Hose Length: 50 ft | Maximum Pressure: 300 PSI
Features:
- Automatic spring rewind system provides smooth, controlled hose retraction after every use.
- Fully enclosed cabinet helps shield the hose from dust, moisture, UV exposure, and workplace debris.
- Supplied with 50 feet of 1/4-inch inside diameter hose for immediate installation.
- Rated for working pressures up to 300 PSI when used within the manufacturer's specified service conditions.
- Compact enclosed design helps reduce hose abrasion, tangling, and unnecessary wear.
- Promotes a safer, cleaner workspace by keeping the hose protected and neatly stored when not in use.
Made in USA:
Applications:
- Compressed air systems in industrial manufacturing and production facilities.
- Automotive repair shops, fleet maintenance garages, and commercial service bays.
- Machine shops and maintenance departments requiring protected hose storage.
- Assembly workstations where automatic hose retrieval improves efficiency and housekeeping.
- General-purpose compressed air and compatible low-pressure fluid transfer applications.
FAQs:
- Q: Does this reel include a hose?
A: Yes. Since this model is not designated as "Less Hose," it is supplied with a 50-foot, 1/4-inch hose as specified by the manufacturer. - Q: What are the benefits of the enclosed cabinet?
A: The enclosed housing helps protect the hose from dirt, moisture, UV exposure, and accidental damage while promoting cleaner hose storage and reduced maintenance. - Q: Does the hose retract automatically?
A: Yes. The spring rewind mechanism automatically retracts the hose after use, reducing manual winding and helping maintain a safer work area. - Q: Is this reel suitable for compressed air service?
A: Yes. The EN-N-150 is designed for compressed air and other compatible low-pressure applications up to its 300 PSI maximum working pressure when operated according to the manufacturer's recommendations.

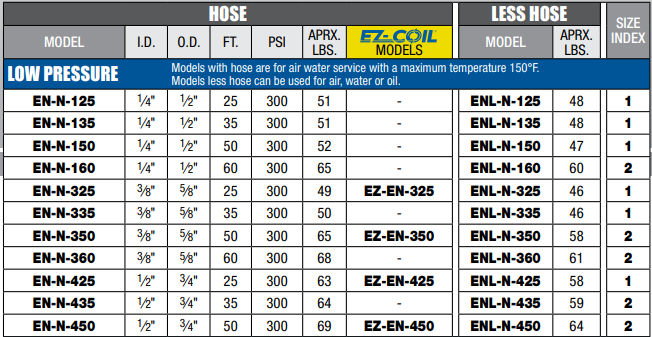

| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| EN-N-125 | 1/4" | 1/2" | 25 | 300 | 51 | - | ENL-N-125 | 48 | 1 |
| EN-N-135 | 1/4" | 1/2" | 35 | 300 | 51 | - | ENL-N-135 | 48 | 1 |
| EN-N-150 | 1/4" | 1/2" | 50 | 300 | 52 | - | ENL-N-150 | 47 | 1 |
| EN-N-160 | 1/4" | 1/2" | 60 | 300 | 65 | - | ENL-N-160 | 60 | 2 |
| EN-N-325 | 3/8" | 5/8" | 25 | 300 | 49 | EZ-EN-325 | ENL-N-325 | 46 | 1 |
| EN-N-335 | 3/8" | 5/8" | 35 | 300 | 50 | - | ENL-N-335 | 46 | 1 |
| EN-N-350 | 3/8" | 5/8" | 50 | 300 | 65 | EZ-EN-350 | ENL-N-350 | 58 | 2 |
| EN-N-360 | 3/8" | 5/8" | 60 | 300 | 68 | - | ENL-N-360 | 61 | 2 |
| EN-N-425 | 1/2" | 3/4" | 25 | 300 | 63 | EZ-EN-425 | ENL-N-425 | 58 | 1 |
| EN-N-435 | 1/2" | 3/4" | 35 | 300 | 64 | - | ENL-N-435 | 59 | 2 |
| EN-N-450 | 1/2" | 3/4" | 50 | 300 | 69 | EZ-EN-450 | ENL-N-450 | 64 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| ENM-N-325 | 3/8" | 1-1/16" | 25 | 3,000 | 61 | EZ-ENM-325 | ENML-N-325 | 54 | 1 |
| ENM-N-335 | 3/8" | 1-1/16" | 35 | 3,000 | 64 | - | ENML-N-335 | 55 | 1 |
| ENM-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 80 | EZ-ENM-350 | ENML-N-350 | 68 | 2 |
| ENM-N-425 | 1/2" | 13/16" | 25 | 2,500 | 61 | EZ-ENM-425 | ENML-N-425 | 54 | 1 |
| ENM-N-435 | 1/2" | 13/16" | 35 | 2,500 | 76 | - | ENML-N-435 | 66 | 2 |
| ENM-N-450 | 1/2" | 13/16" | 50 | 2,500 | 82 | EZ-ENM-450 | ENML-N-450 | 68 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| ENH-N-125 | 1/4" | 9/16" | 25 | 5,000 | 60 | EZ-ENH-125 | ENHL-N-125 | 54 | 1 |
| ENH-N-135 | 1/4" | 9/16" | 35 | 5,000 | 63 | - | ENHL-N-135 | 55 | 1 |
| ENH-N-150 | 1/4" | 9/16" | 50 | 5,000 | 79 | EZ-ENH-150 | ENHL-N-150 | 68 | 2 |
| ENH-N-160 | 1/4" | 9/16" | 60 | 5,000 | 85 | - | ENHL-N-160 | 71 | 2 |
| ENH-N-325 | 3/8" | 1-1/16" | 25 | 4,000 | 61 | - | ENHL-N-325 | 54 | 1 |
| ENH-N-335 | 3/8" | 1-1/16" | 35 | 4,000 | 76 | - | ENHL-N-335 | 67 | 2 |
| ENH-N-350 | 3/8" | 1-1/16" | 50 | 4,000 | 80 | EZ-ENH-350 | ENHL-N-350 | 68 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
