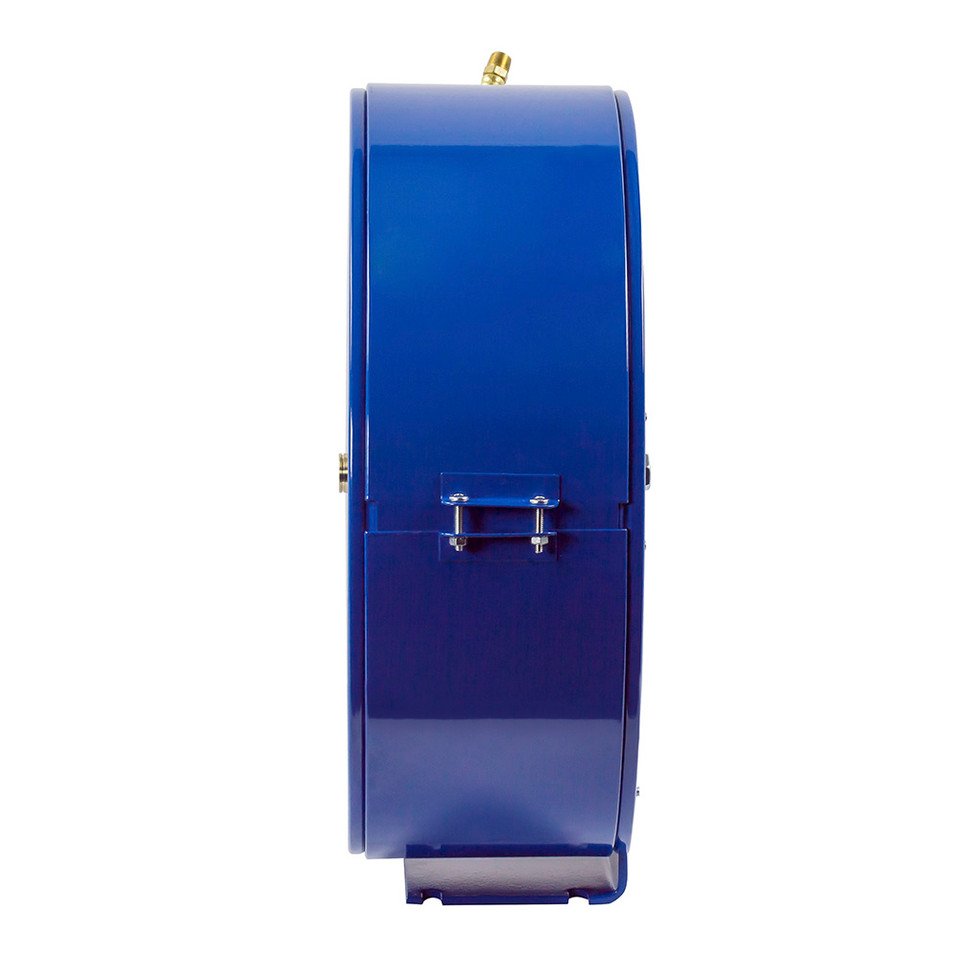

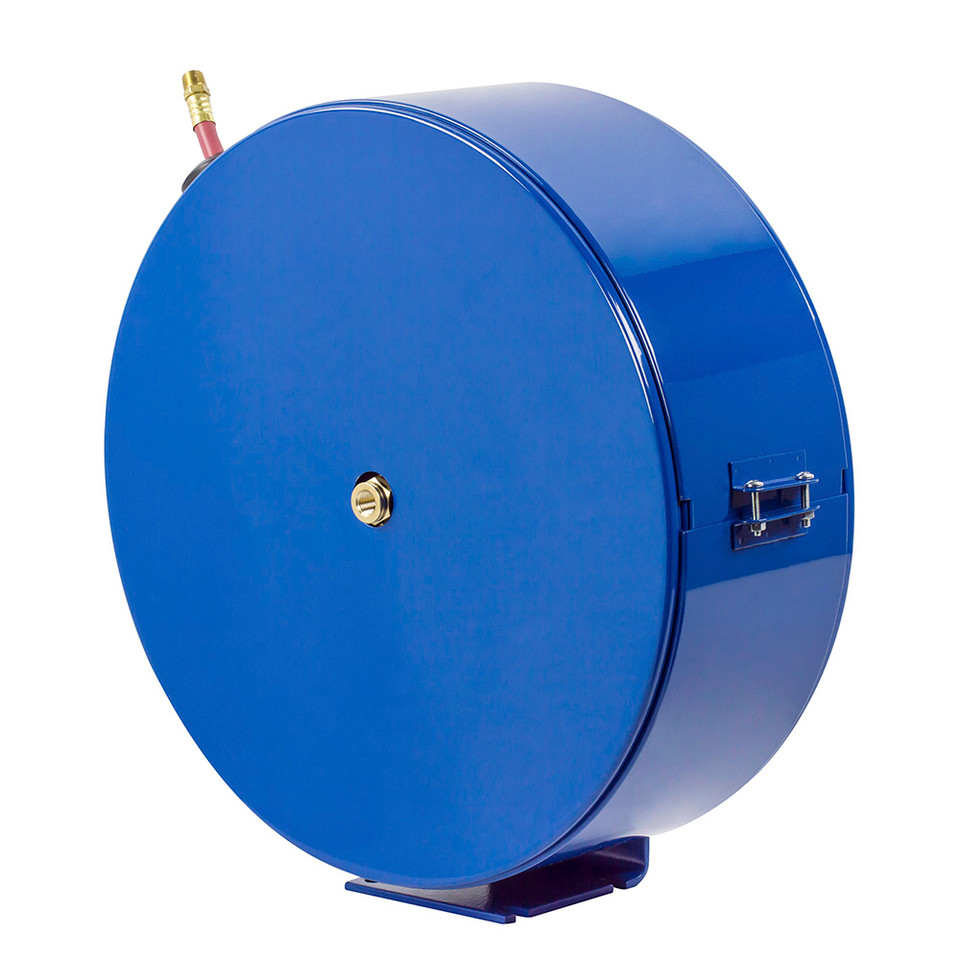

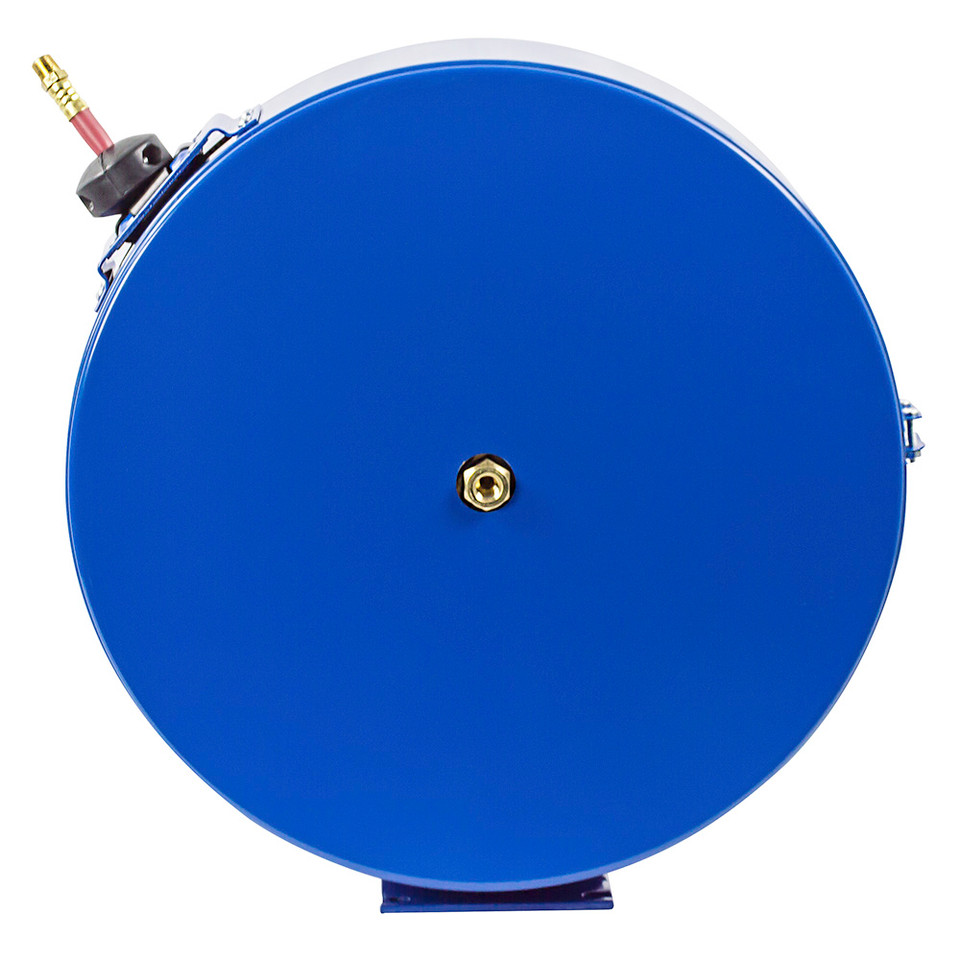

Designed for dependable compressed air and low-pressure fluid hose management, the Coxreels EN-N-425 Spring Rewind Enclosed Hose Reel combines automatic hose retrieval with the protection of a durable enclosed cabinet. As part of the EN Series, this reel comes equipped with 25 feet of 1/2" inside diameter hose and is rated for a maximum working pressure of 300 PSI. The spring rewind mechanism (a self-retracting system that automatically rewinds the hose after use) helps reduce manual hose handling while keeping the hose neatly stored, improving workplace safety and maintaining a clean, organized work environment.
Its fully enclosed housing helps protect the hose from dirt, dust, moisture, UV exposure, and accidental impact, making it ideal for industrial facilities, maintenance shops, automotive service centers, and commercial workspaces. The compact design provides quick hose access while helping extend hose service life through protected storage.
Type: Spring Rewind Enclosed Hose Reel | Series: EN Series | Hose I.D.: 1/2" | Hose Length: 25 ft | Maximum Pressure: 300 PSI
Features:
- Automatic spring rewind system provides smooth, controlled hose retraction after each use.
- Fully enclosed cabinet helps protect the hose from dirt, moisture, UV exposure, and workplace debris.
- Supplied with 25 feet of 1/2-inch inside diameter hose for immediate installation and operation.
- Rated for working pressures up to 300 PSI when operated within the manufacturer's specified service conditions.
- Enclosed design helps reduce hose abrasion, tangling, and kinking while promoting longer hose service life.
- Keeps hoses organized and readily accessible while improving workplace safety and housekeeping.
Made in USA:
Applications:
- Compressed air systems in manufacturing plants and industrial facilities.
- Automotive repair shops, fleet maintenance garages, and commercial service bays.
- Machine shops and maintenance departments requiring protected hose storage.
- Production and assembly workstations where automatic hose retrieval improves efficiency.
- General-purpose compressed air and compatible low-pressure fluid transfer applications.
FAQs:
- Q: Does this reel include a hose?
A: Yes. Since this model is not designated as "Less Hose," it includes a 25-foot, 1/2-inch hose as specified by the manufacturer. - Q: What are the benefits of the enclosed cabinet?
A: The enclosed housing helps protect the hose from dust, dirt, moisture, UV exposure, and accidental damage while promoting cleaner storage and reducing hose wear. - Q: Does the hose retract automatically?
A: Yes. The spring rewind mechanism automatically retracts the hose after use, helping reduce manual winding and maintain a cleaner, safer workspace. - Q: Can this reel be used for compressed air applications?
A: Yes. The EN-N-425 is suitable for compressed air and other compatible low-pressure services up to its 300 PSI maximum working pressure when used according to the manufacturer's recommendations.

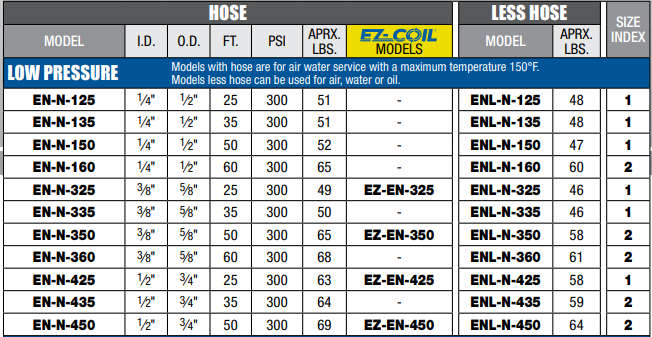

| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| EN-N-125 | 1/4" | 1/2" | 25 | 300 | 51 | - | ENL-N-125 | 48 | 1 |
| EN-N-135 | 1/4" | 1/2" | 35 | 300 | 51 | - | ENL-N-135 | 48 | 1 |
| EN-N-150 | 1/4" | 1/2" | 50 | 300 | 52 | - | ENL-N-150 | 47 | 1 |
| EN-N-160 | 1/4" | 1/2" | 60 | 300 | 65 | - | ENL-N-160 | 60 | 2 |
| EN-N-325 | 3/8" | 5/8" | 25 | 300 | 49 | EZ-EN-325 | ENL-N-325 | 46 | 1 |
| EN-N-335 | 3/8" | 5/8" | 35 | 300 | 50 | - | ENL-N-335 | 46 | 1 |
| EN-N-350 | 3/8" | 5/8" | 50 | 300 | 65 | EZ-EN-350 | ENL-N-350 | 58 | 2 |
| EN-N-360 | 3/8" | 5/8" | 60 | 300 | 68 | - | ENL-N-360 | 61 | 2 |
| EN-N-425 | 1/2" | 3/4" | 25 | 300 | 63 | EZ-EN-425 | ENL-N-425 | 58 | 1 |
| EN-N-435 | 1/2" | 3/4" | 35 | 300 | 64 | - | ENL-N-435 | 59 | 2 |
| EN-N-450 | 1/2" | 3/4" | 50 | 300 | 69 | EZ-EN-450 | ENL-N-450 | 64 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| ENM-N-325 | 3/8" | 1-1/16" | 25 | 3,000 | 61 | EZ-ENM-325 | ENML-N-325 | 54 | 1 |
| ENM-N-335 | 3/8" | 1-1/16" | 35 | 3,000 | 64 | - | ENML-N-335 | 55 | 1 |
| ENM-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 80 | EZ-ENM-350 | ENML-N-350 | 68 | 2 |
| ENM-N-425 | 1/2" | 13/16" | 25 | 2,500 | 61 | EZ-ENM-425 | ENML-N-425 | 54 | 1 |
| ENM-N-435 | 1/2" | 13/16" | 35 | 2,500 | 76 | - | ENML-N-435 | 66 | 2 |
| ENM-N-450 | 1/2" | 13/16" | 50 | 2,500 | 82 | EZ-ENM-450 | ENML-N-450 | 68 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| ENH-N-125 | 1/4" | 9/16" | 25 | 5,000 | 60 | EZ-ENH-125 | ENHL-N-125 | 54 | 1 |
| ENH-N-135 | 1/4" | 9/16" | 35 | 5,000 | 63 | - | ENHL-N-135 | 55 | 1 |
| ENH-N-150 | 1/4" | 9/16" | 50 | 5,000 | 79 | EZ-ENH-150 | ENHL-N-150 | 68 | 2 |
| ENH-N-160 | 1/4" | 9/16" | 60 | 5,000 | 85 | - | ENHL-N-160 | 71 | 2 |
| ENH-N-325 | 3/8" | 1-1/16" | 25 | 4,000 | 61 | - | ENHL-N-325 | 54 | 1 |
| ENH-N-335 | 3/8" | 1-1/16" | 35 | 4,000 | 76 | - | ENHL-N-335 | 67 | 2 |
| ENH-N-350 | 3/8" | 1-1/16" | 50 | 4,000 | 80 | EZ-ENH-350 | ENHL-N-350 | 68 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
