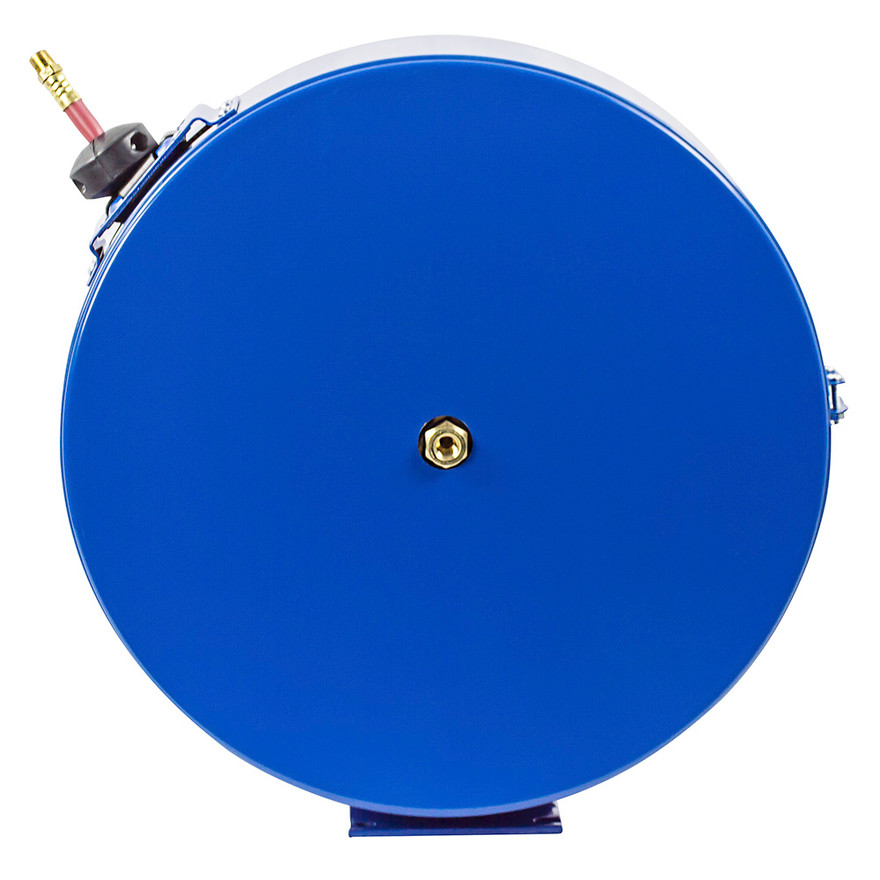

Built for compact hose management in compressed air and low-pressure fluid service, the Coxreels ENL-N-325 Spring Rewind Enclosed Hose Reel combines automatic hose retrieval with the added protection of a fully enclosed cabinet. As part of the EN Series, this reel is configured for 25 feet of 3/8" inside diameter hose and is rated for a maximum working pressure of 300 PSI. Its spring rewind mechanism (a self-retracting system that automatically rewinds the hose after use) helps keep work areas organized while reducing hose wear, tangling, and trip hazards.
This model is supplied in a Less Hose configuration, allowing users to install the hose best suited to their application. The enclosed housing helps shield the hose compartment from dirt, dust, moisture, and incidental damage, making the reel well suited for workshops, maintenance facilities, manufacturing plants, and commercial service environments.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Enclosed Hose Reel | Series: EN Series | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 25 ft | Maximum Pressure: 300 PSI
Features:
- Automatic spring rewind system provides smooth, controlled hose retrieval after each use.
- Fully enclosed housing helps protect the hose compartment from dirt, moisture, and workplace debris.
- Less hose configuration allows installation of a compatible 3/8-inch hose selected for the intended service.
- Designed to accommodate up to 25 feet of 3/8-inch inside diameter hose.
- 300 PSI maximum working pressure supports compressed air and other compatible low-pressure applications.
- Helps minimize hose kinking, abrasion, and clutter while maintaining a cleaner work area.
Made in USA:
Applications:
- Compressed air distribution in industrial maintenance and manufacturing facilities.
- Automotive service bays and fleet maintenance shops requiring organized hose storage.
- Commercial garages and workshops where enclosed hose protection improves equipment longevity.
- Machine shops and production areas using customer-supplied compressed air hose assemblies.
- General-purpose air and low-pressure fluid transfer applications compatible with a 300 PSI system.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without a hose installed, allowing you to select a compatible 3/8-inch hose that matches your application's pressure and service requirements. - Q: Does this reel automatically rewind the hose?
A: Yes. The spring rewind mechanism automatically retracts the hose after use for quicker cleanup and improved workplace safety. - Q: What is the benefit of the enclosed cabinet?
A: The enclosed housing helps protect the reel and hose from dust, moisture, dirt, and incidental damage while maintaining a cleaner installation. - Q: Can this reel be used for compressed air service?
A: Yes. When equipped with a compatible hose and fittings, the ENL-N-325 is suitable for compressed air and other compatible low-pressure applications up to its 300 PSI maximum working pressure.

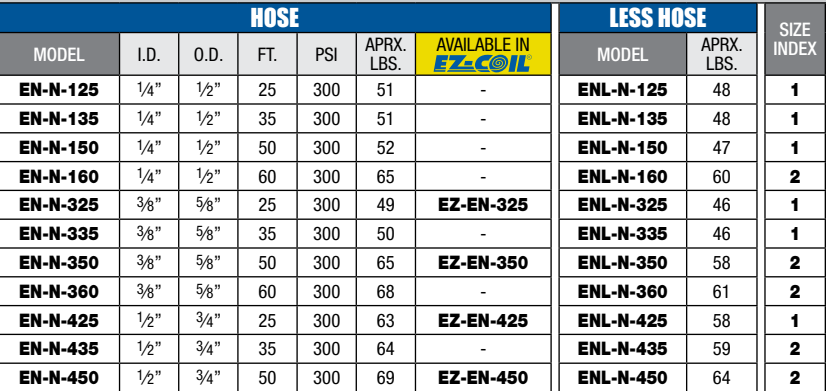

| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| EN-N-125 | 1/4" | 1/2" | 25 | 300 | 51 | - | ENL-N-125 | 48 | 1 |
| EN-N-135 | 1/4" | 1/2" | 35 | 300 | 51 | - | ENL-N-135 | 48 | 1 |
| EN-N-150 | 1/4" | 1/2" | 50 | 300 | 52 | - | ENL-N-150 | 47 | 1 |
| EN-N-160 | 1/4" | 1/2" | 60 | 300 | 65 | - | ENL-N-160 | 60 | 2 |
| EN-N-325 | 3/8" | 5/8" | 25 | 300 | 49 | EZ-EN-325 | ENL-N-325 | 46 | 1 |
| EN-N-335 | 3/8" | 5/8" | 35 | 300 | 50 | - | ENL-N-335 | 46 | 1 |
| EN-N-350 | 3/8" | 5/8" | 50 | 300 | 65 | EZ-EN-350 | ENL-N-350 | 58 | 2 |
| EN-N-360 | 3/8" | 5/8" | 60 | 300 | 68 | - | ENL-N-360 | 61 | 2 |
| EN-N-425 | 1/2" | 3/4" | 25 | 300 | 63 | EZ-EN-425 | ENL-N-425 | 58 | 1 |
| EN-N-435 | 1/2" | 3/4" | 35 | 300 | 64 | - | ENL-N-435 | 59 | 2 |
| EN-N-450 | 1/2" | 3/4" | 50 | 300 | 69 | EZ-EN-450 | ENL-N-450 | 64 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| ENM-N-325 | 3/8" | 1-1/16" | 25 | 3,000 | 61 | EZ-ENM-325 | ENML-N-325 | 54 | 1 |
| ENM-N-335 | 3/8" | 1-1/16" | 35 | 3,000 | 64 | - | ENML-N-335 | 55 | 1 |
| ENM-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 80 | EZ-ENM-350 | ENML-N-350 | 68 | 2 |
| ENM-N-425 | 1/2" | 13/16" | 25 | 2,500 | 61 | EZ-ENM-425 | ENML-N-425 | 54 | 1 |
| ENM-N-435 | 1/2" | 13/16" | 35 | 2,500 | 76 | - | ENML-N-435 | 66 | 2 |
| ENM-N-450 | 1/2" | 13/16" | 50 | 2,500 | 82 | EZ-ENM-450 | ENML-N-450 | 68 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| ENH-N-125 | 1/4" | 9/16" | 25 | 5,000 | 60 | EZ-ENH-125 | ENHL-N-125 | 54 | 1 |
| ENH-N-135 | 1/4" | 9/16" | 35 | 5,000 | 63 | - | ENHL-N-135 | 55 | 1 |
| ENH-N-150 | 1/4" | 9/16" | 50 | 5,000 | 79 | EZ-ENH-150 | ENHL-N-150 | 68 | 2 |
| ENH-N-160 | 1/4" | 9/16" | 60 | 5,000 | 85 | - | ENHL-N-160 | 71 | 2 |
| ENH-N-325 | 3/8" | 1-1/16" | 25 | 4,000 | 61 | - | ENHL-N-325 | 54 | 1 |
| ENH-N-335 | 3/8" | 1-1/16" | 35 | 4,000 | 76 | - | ENHL-N-335 | 67 | 2 |
| ENH-N-350 | 3/8" | 1-1/16" | 50 | 4,000 | 80 | EZ-ENH-350 | ENHL-N-350 | 68 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
