Designed for efficient compressed air and low-pressure fluid hose management, the Coxreels EN-N-335 Spring Rewind Enclosed Hose Reel combines dependable automatic hose retrieval with the added protection of a fully enclosed cabinet. As part of the EN Series, this reel comes equipped with 35 feet of 3/8" inside diameter hose and is rated for a maximum working pressure of 300 PSI. Its spring rewind mechanism (a self-retracting system that automatically rewinds the hose after use) helps keep the hose neatly stored, reducing manual handling, trip hazards, and unnecessary hose wear while maintaining a cleaner work area.
The enclosed housing helps shield the hose from dirt, dust, moisture, UV exposure, and incidental damage, making it well suited for manufacturing facilities, maintenance departments, automotive service centers, and commercial workshops. The 35-foot hose provides additional working reach while preserving the convenience and protection of an enclosed reel design.
Type: Spring Rewind Enclosed Hose Reel | Series: EN Series | Hose I.D.: 3/8" | Hose Length: 35 ft | Maximum Pressure: 300 PSI
Features:
- Automatic spring rewind system provides smooth, controlled hose retraction after every use.
- Fully enclosed cabinet helps protect the hose from dirt, moisture, UV exposure, and workplace debris.
- Supplied with 35 feet of 3/8-inch inside diameter hose for convenient installation and immediate operation.
- Rated for working pressures up to 300 PSI when operated within the manufacturer's specified service conditions.
- Extended hose length provides greater working coverage while maintaining organized hose storage.
- Helps minimize hose abrasion, tangling, and kinking to support longer hose service life.
Made in USA:
Applications:
- Compressed air systems in manufacturing plants and industrial production facilities.
- Automotive repair shops, fleet maintenance garages, and commercial service bays.
- Machine shops and maintenance departments requiring protected hose storage.
- Assembly and fabrication workstations where automatic hose retrieval improves efficiency.
- General-purpose compressed air and compatible low-pressure fluid transfer applications.
FAQs:
- Q: Does this reel include a hose?
A: Yes. Since this model is not designated as "Less Hose," it includes a 35-foot, 3/8-inch hose as specified by the manufacturer. - Q: Why choose an enclosed hose reel?
A: The enclosed housing helps protect the hose from dirt, dust, moisture, UV exposure, and accidental damage while promoting cleaner hose storage and reduced maintenance. - Q: Does the hose retract automatically?
A: Yes. The spring rewind mechanism automatically retracts the hose after use, reducing manual winding while helping keep the work area organized. - Q: Is this reel suitable for compressed air applications?
A: Yes. The EN-N-335 is designed for compressed air and other compatible low-pressure services up to its 300 PSI maximum working pressure when used according to the manufacturer's recommendations.

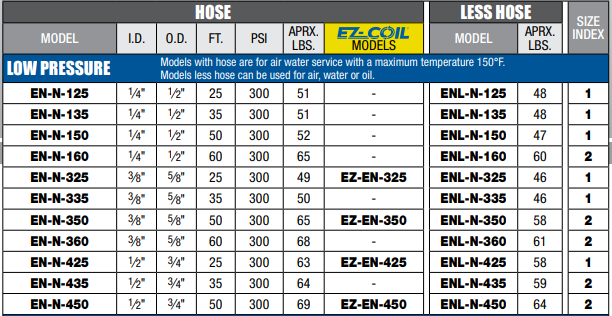

| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| EN-N-125 | 1/4" | 1/2" | 25 | 300 | 51 | - | ENL-N-125 | 48 | 1 |
| EN-N-135 | 1/4" | 1/2" | 35 | 300 | 51 | - | ENL-N-135 | 48 | 1 |
| EN-N-150 | 1/4" | 1/2" | 50 | 300 | 52 | - | ENL-N-150 | 47 | 1 |
| EN-N-160 | 1/4" | 1/2" | 60 | 300 | 65 | - | ENL-N-160 | 60 | 2 |
| EN-N-325 | 3/8" | 5/8" | 25 | 300 | 49 | EZ-EN-325 | ENL-N-325 | 46 | 1 |
| EN-N-335 | 3/8" | 5/8" | 35 | 300 | 50 | - | ENL-N-335 | 46 | 1 |
| EN-N-350 | 3/8" | 5/8" | 50 | 300 | 65 | EZ-EN-350 | ENL-N-350 | 58 | 2 |
| EN-N-360 | 3/8" | 5/8" | 60 | 300 | 68 | - | ENL-N-360 | 61 | 2 |
| EN-N-425 | 1/2" | 3/4" | 25 | 300 | 63 | EZ-EN-425 | ENL-N-425 | 58 | 1 |
| EN-N-435 | 1/2" | 3/4" | 35 | 300 | 64 | - | ENL-N-435 | 59 | 2 |
| EN-N-450 | 1/2" | 3/4" | 50 | 300 | 69 | EZ-EN-450 | ENL-N-450 | 64 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| ENM-N-325 | 3/8" | 1-1/16" | 25 | 3,000 | 61 | EZ-ENM-325 | ENML-N-325 | 54 | 1 |
| ENM-N-335 | 3/8" | 1-1/16" | 35 | 3,000 | 64 | - | ENML-N-335 | 55 | 1 |
| ENM-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 80 | EZ-ENM-350 | ENML-N-350 | 68 | 2 |
| ENM-N-425 | 1/2" | 13/16" | 25 | 2,500 | 61 | EZ-ENM-425 | ENML-N-425 | 54 | 1 |
| ENM-N-435 | 1/2" | 13/16" | 35 | 2,500 | 76 | - | ENML-N-435 | 66 | 2 |
| ENM-N-450 | 1/2" | 13/16" | 50 | 2,500 | 82 | EZ-ENM-450 | ENML-N-450 | 68 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| ENH-N-125 | 1/4" | 9/16" | 25 | 5,000 | 60 | EZ-ENH-125 | ENHL-N-125 | 54 | 1 |
| ENH-N-135 | 1/4" | 9/16" | 35 | 5,000 | 63 | - | ENHL-N-135 | 55 | 1 |
| ENH-N-150 | 1/4" | 9/16" | 50 | 5,000 | 79 | EZ-ENH-150 | ENHL-N-150 | 68 | 2 |
| ENH-N-160 | 1/4" | 9/16" | 60 | 5,000 | 85 | - | ENHL-N-160 | 71 | 2 |
| ENH-N-325 | 3/8" | 1-1/16" | 25 | 4,000 | 61 | - | ENHL-N-325 | 54 | 1 |
| ENH-N-335 | 3/8" | 1-1/16" | 35 | 4,000 | 76 | - | ENHL-N-335 | 67 | 2 |
| ENH-N-350 | 3/8" | 1-1/16" | 50 | 4,000 | 80 | EZ-ENH-350 | ENHL-N-350 | 68 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
