Built for efficient compressed air and low-pressure fluid hose management, the Coxreels ENL-N-350 Spring Rewind Enclosed Hose Reel combines automatic hose retrieval with the added protection of a fully enclosed cabinet. Part of the EN Series, this reel is designed to accommodate 50 feet of 3/8" inside diameter hose and is rated for a maximum working pressure of 300 PSI. The spring rewind mechanism (a self-retracting system that automatically rewinds the hose after use) helps keep hoses neatly stored, reducing clutter, minimizing trip hazards, and promoting a more organized workspace.
Supplied in a Less Hose configuration, the ENL-N-350 gives users the flexibility to install the hose that best suits their application requirements. Its enclosed housing helps shield the hose compartment from dirt, dust, moisture, and accidental impact, making it an excellent choice for industrial facilities, commercial shops, and maintenance operations where clean hose storage is essential.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Enclosed Hose Reel | Series: EN Series | Configuration: Less Hose | Hose I.D.: 3/8" | Hose Capacity: 50 ft | Maximum Pressure: 300 PSI
Features:
- Automatic spring rewind system delivers smooth, controlled hose retraction after each use.
- Fully enclosed cabinet helps protect the hose compartment from dirt, moisture, UV exposure, and workplace debris.
- Less hose configuration allows installation of a compatible 3/8-inch hose selected for the intended application.
- Designed to accommodate up to 50 feet of 3/8-inch inside diameter hose.
- Rated for a maximum working pressure of 300 PSI when used with compatible hose and fittings.
- Helps reduce hose kinking, abrasion, and unnecessary wear while maintaining a cleaner, safer work environment.
Made in USA:
Applications:
- Compressed air systems in manufacturing plants and industrial maintenance facilities.
- Automotive repair shops and fleet maintenance service bays requiring organized hose storage.
- Commercial garages and workshops where enclosed hose protection helps extend hose life.
- Machine shops and production environments using customer-supplied compressed air hose assemblies.
- General-purpose air and compatible low-pressure fluid transfer applications up to 300 PSI.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without a hose installed, allowing you to select a compatible 3/8-inch hose that meets your specific application and pressure requirements. - Q: Does the hose retract automatically?
A: Yes. The spring rewind mechanism automatically retracts the hose after use, helping keep the work area organized and reducing manual hose handling. - Q: Why choose an enclosed hose reel?
A: The enclosed housing helps protect the hose from dirt, dust, moisture, and accidental damage while maintaining a cleaner installation and reducing hose wear. - Q: Can this reel be used for compressed air systems?
A: Yes. When equipped with a properly rated hose and fittings, the ENL-N-350 is suitable for compressed air and other compatible low-pressure applications up to its 300 PSI maximum working pressure.

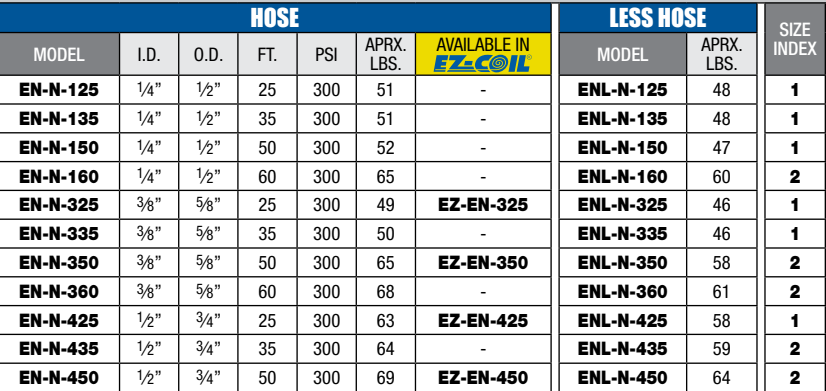

| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| EN-N-125 | 1/4" | 1/2" | 25 | 300 | 51 | - | ENL-N-125 | 48 | 1 |
| EN-N-135 | 1/4" | 1/2" | 35 | 300 | 51 | - | ENL-N-135 | 48 | 1 |
| EN-N-150 | 1/4" | 1/2" | 50 | 300 | 52 | - | ENL-N-150 | 47 | 1 |
| EN-N-160 | 1/4" | 1/2" | 60 | 300 | 65 | - | ENL-N-160 | 60 | 2 |
| EN-N-325 | 3/8" | 5/8" | 25 | 300 | 49 | EZ-EN-325 | ENL-N-325 | 46 | 1 |
| EN-N-335 | 3/8" | 5/8" | 35 | 300 | 50 | - | ENL-N-335 | 46 | 1 |
| EN-N-350 | 3/8" | 5/8" | 50 | 300 | 65 | EZ-EN-350 | ENL-N-350 | 58 | 2 |
| EN-N-360 | 3/8" | 5/8" | 60 | 300 | 68 | - | ENL-N-360 | 61 | 2 |
| EN-N-425 | 1/2" | 3/4" | 25 | 300 | 63 | EZ-EN-425 | ENL-N-425 | 58 | 1 |
| EN-N-435 | 1/2" | 3/4" | 35 | 300 | 64 | - | ENL-N-435 | 59 | 2 |
| EN-N-450 | 1/2" | 3/4" | 50 | 300 | 69 | EZ-EN-450 | ENL-N-450 | 64 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| ENM-N-325 | 3/8" | 1-1/16" | 25 | 3,000 | 61 | EZ-ENM-325 | ENML-N-325 | 54 | 1 |
| ENM-N-335 | 3/8" | 1-1/16" | 35 | 3,000 | 64 | - | ENML-N-335 | 55 | 1 |
| ENM-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 80 | EZ-ENM-350 | ENML-N-350 | 68 | 2 |
| ENM-N-425 | 1/2" | 13/16" | 25 | 2,500 | 61 | EZ-ENM-425 | ENML-N-425 | 54 | 1 |
| ENM-N-435 | 1/2" | 13/16" | 35 | 2,500 | 76 | - | ENML-N-435 | 66 | 2 |
| ENM-N-450 | 1/2" | 13/16" | 50 | 2,500 | 82 | EZ-ENM-450 | ENML-N-450 | 68 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| ENH-N-125 | 1/4" | 9/16" | 25 | 5,000 | 60 | EZ-ENH-125 | ENHL-N-125 | 54 | 1 |
| ENH-N-135 | 1/4" | 9/16" | 35 | 5,000 | 63 | - | ENHL-N-135 | 55 | 1 |
| ENH-N-150 | 1/4" | 9/16" | 50 | 5,000 | 79 | EZ-ENH-150 | ENHL-N-150 | 68 | 2 |
| ENH-N-160 | 1/4" | 9/16" | 60 | 5,000 | 85 | - | ENHL-N-160 | 71 | 2 |
| ENH-N-325 | 3/8" | 1-1/16" | 25 | 4,000 | 61 | - | ENHL-N-325 | 54 | 1 |
| ENH-N-335 | 3/8" | 1-1/16" | 35 | 4,000 | 76 | - | ENHL-N-335 | 67 | 2 |
| ENH-N-350 | 3/8" | 1-1/16" | 50 | 4,000 | 80 | EZ-ENH-350 | ENHL-N-350 | 68 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
