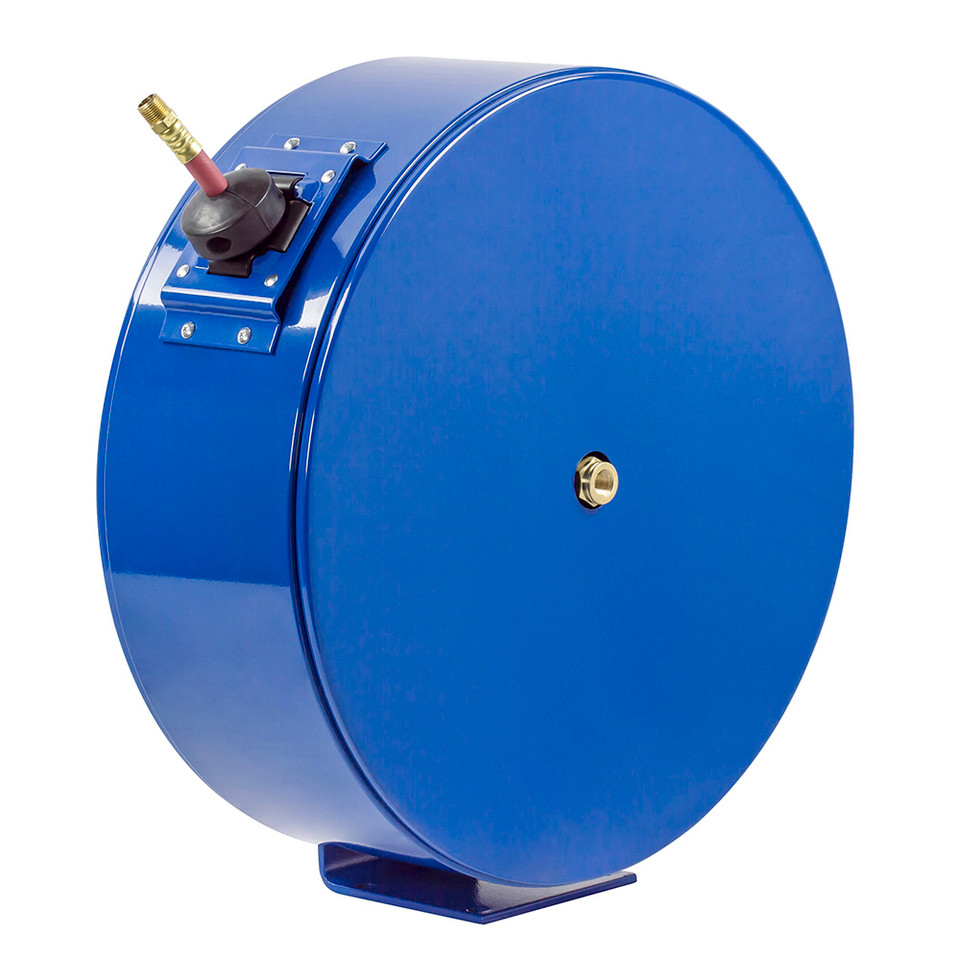

Built for dependable compressed air and low-pressure fluid hose management, the Coxreels ENL-N-450 Spring Rewind Enclosed Hose Reel combines automatic hose retrieval with the added protection of a fully enclosed cabinet. Part of the EN Series, this reel is designed to accommodate 50 feet of 1/2" inside diameter hose and is rated for a maximum working pressure of 300 PSI. The spring rewind mechanism (a self-retracting system that automatically rewinds the hose after use) helps reduce hose handling time, minimizes trip hazards, and keeps workspaces clean and organized.
Supplied in a Less Hose configuration, the ENL-N-450 allows users to install the hose best suited to their specific air or fluid service requirements. Its enclosed housing helps protect the hose compartment from dirt, dust, moisture, and incidental damage, making it an excellent choice for manufacturing facilities, maintenance departments, commercial garages, and other demanding work environments.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Spring Rewind Enclosed Hose Reel | Series: EN Series | Configuration: Less Hose | Hose I.D.: 1/2" | Hose Capacity: 50 ft | Maximum Pressure: 300 PSI
Features:
- Automatic spring rewind system provides smooth, reliable hose retrieval after every use.
- Fully enclosed cabinet helps protect the hose compartment from dust, moisture, UV exposure, and workplace debris.
- Less hose configuration allows installation of a compatible 1/2-inch hose selected for the intended application.
- Designed to accommodate up to 50 feet of 1/2-inch inside diameter hose.
- Rated for working pressures up to 300 PSI when used with compatible hose and fittings.
- Helps reduce hose kinking, abrasion, and clutter while improving workplace safety and organization.
Made in USA:
Applications:
- Compressed air distribution systems in industrial manufacturing facilities.
- Automotive repair shops, fleet maintenance facilities, and commercial service bays.
- Machine shops and maintenance departments requiring protected hose storage.
- Production workstations where automatic hose retrieval improves efficiency.
- General-purpose compressed air and compatible low-pressure fluid applications using customer-supplied hose assemblies.
FAQs:
- Q: What does "Less Hose" mean?
A: This reel is supplied without a hose, allowing you to install a compatible 1/2-inch hose that matches your operating requirements. - Q: How does the spring rewind system work?
A: The spring-powered mechanism automatically retracts the hose after use, helping reduce manual winding while keeping the hose neatly stored. - Q: What are the advantages of the enclosed housing?
A: The enclosed cabinet helps protect the hose from dirt, moisture, UV exposure, and accidental damage, contributing to cleaner operation and reduced hose wear. - Q: Is this reel suitable for compressed air service?
A: Yes. When paired with a properly rated hose and compatible fittings, the ENL-N-450 is suitable for compressed air and other compatible low-pressure applications up to its 300 PSI maximum working pressure.

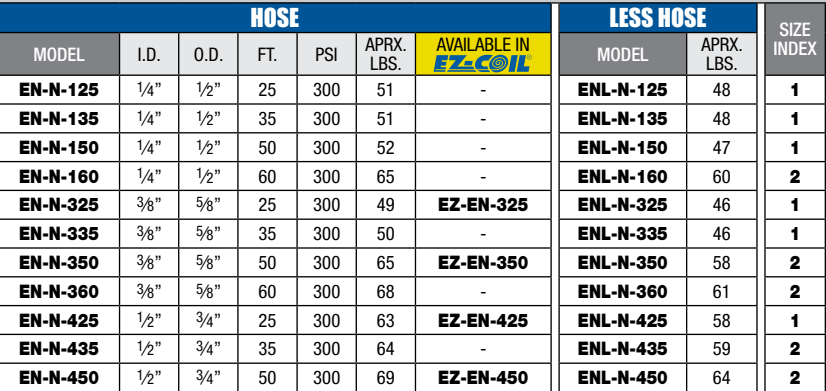

| HOSE | LESS HOSE | SIZE INDEX |
|||||||
|---|---|---|---|---|---|---|---|---|---|
| SKU | I.D. | O.D. | FT. | PSI | APRX. LBS. |
EZ-COIL SKU | LESS HOSE SKU | APRX. LBS. |
|
|
LOW PRESSURE Models with hose are for air water service with a maximum temperature 150°F.
Models less hose can be used for air, water or oil. |
|||||||||
| EN-N-125 | 1/4" | 1/2" | 25 | 300 | 51 | - | ENL-N-125 | 48 | 1 |
| EN-N-135 | 1/4" | 1/2" | 35 | 300 | 51 | - | ENL-N-135 | 48 | 1 |
| EN-N-150 | 1/4" | 1/2" | 50 | 300 | 52 | - | ENL-N-150 | 47 | 1 |
| EN-N-160 | 1/4" | 1/2" | 60 | 300 | 65 | - | ENL-N-160 | 60 | 2 |
| EN-N-325 | 3/8" | 5/8" | 25 | 300 | 49 | EZ-EN-325 | ENL-N-325 | 46 | 1 |
| EN-N-335 | 3/8" | 5/8" | 35 | 300 | 50 | - | ENL-N-335 | 46 | 1 |
| EN-N-350 | 3/8" | 5/8" | 50 | 300 | 65 | EZ-EN-350 | ENL-N-350 | 58 | 2 |
| EN-N-360 | 3/8" | 5/8" | 60 | 300 | 68 | - | ENL-N-360 | 61 | 2 |
| EN-N-425 | 1/2" | 3/4" | 25 | 300 | 63 | EZ-EN-425 | ENL-N-425 | 58 | 1 |
| EN-N-435 | 1/2" | 3/4" | 35 | 300 | 64 | - | ENL-N-435 | 59 | 2 |
| EN-N-450 | 1/2" | 3/4" | 50 | 300 | 69 | EZ-EN-450 | ENL-N-450 | 64 | 2 |
|
MEDIUM PRESSURE Reels are furnished with standard one wire braid hose suitable for air, water or oil applications.
Hose exceeds SAE R1 specifications. Maximum Temperature 250°F. |
|||||||||
| ENM-N-325 | 3/8" | 1-1/16" | 25 | 3,000 | 61 | EZ-ENM-325 | ENML-N-325 | 54 | 1 |
| ENM-N-335 | 3/8" | 1-1/16" | 35 | 3,000 | 64 | - | ENML-N-335 | 55 | 1 |
| ENM-N-350 | 3/8" | 1-1/16" | 50 | 3,000 | 80 | EZ-ENM-350 | ENML-N-350 | 68 | 2 |
| ENM-N-425 | 1/2" | 13/16" | 25 | 2,500 | 61 | EZ-ENM-425 | ENML-N-425 | 54 | 1 |
| ENM-N-435 | 1/2" | 13/16" | 35 | 2,500 | 76 | - | ENML-N-435 | 66 | 2 |
| ENM-N-450 | 1/2" | 13/16" | 50 | 2,500 | 82 | EZ-ENM-450 | ENML-N-450 | 68 | 2 |
|
HIGH PRESSURE Reels are furnished standard with S.A.E. 100R16 #1 or #2 wire braid hose suitable for grease and hydraulic oil applications. Maximum Temperature 250°F.
|
|||||||||
| ENH-N-125 | 1/4" | 9/16" | 25 | 5,000 | 60 | EZ-ENH-125 | ENHL-N-125 | 54 | 1 |
| ENH-N-135 | 1/4" | 9/16" | 35 | 5,000 | 63 | - | ENHL-N-135 | 55 | 1 |
| ENH-N-150 | 1/4" | 9/16" | 50 | 5,000 | 79 | EZ-ENH-150 | ENHL-N-150 | 68 | 2 |
| ENH-N-160 | 1/4" | 9/16" | 60 | 5,000 | 85 | - | ENHL-N-160 | 71 | 2 |
| ENH-N-325 | 3/8" | 1-1/16" | 25 | 4,000 | 61 | - | ENHL-N-325 | 54 | 1 |
| ENH-N-335 | 3/8" | 1-1/16" | 35 | 4,000 | 76 | - | ENHL-N-335 | 67 | 2 |
| ENH-N-350 | 3/8" | 1-1/16" | 50 | 4,000 | 80 | EZ-ENH-350 | ENHL-N-350 | 68 | 2 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
