Coxreels 117WL-1-200 Welding Hand Crank Hose Reel | 100W Series | 1/4" Hose Diameter | 200' Hose Length | 200 Max PSI | Less Hose

Built for welding operations that require organized storage for long oxy-acetylene hose runs, the Coxreels 117WL-1-200 Welding Hand Crank Hose Reel provides capacity for 200 ft of 1/4" I.D. hose. This 100W Series model is supplied less hose and carries a maximum pressure rating of 200 PSI. Its direct hand crank provides manual hose retrieval, while the adjustable tension brake helps prevent free-wheeling during operation, transport, and storage. The 200-foot capacity supports larger welding areas where additional hose reach is required between the reel location and the work area.

The 117WL-1-200 features a compact, solid one-piece heavy-gauge steel U-shaped frame with an open drum design. An external 90-degree full-flow dual-ported brass swivel provides both connections from the same side of the reel, while VITON swivel seals and a composite bearing support the reel's welding-service configuration and smooth rotation. Coxreels also applies its proprietary CPC powder coat process and uses rolled edges and ribbed discs to add strength and safety to the reel structure.

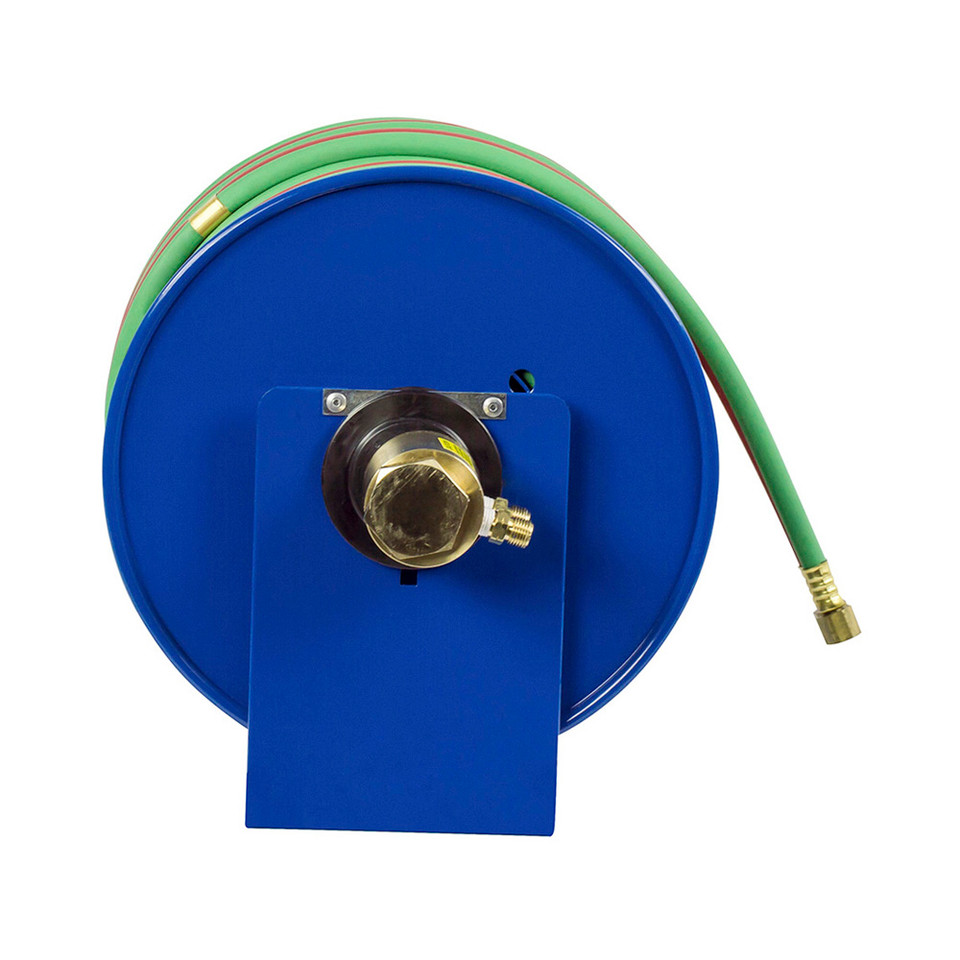

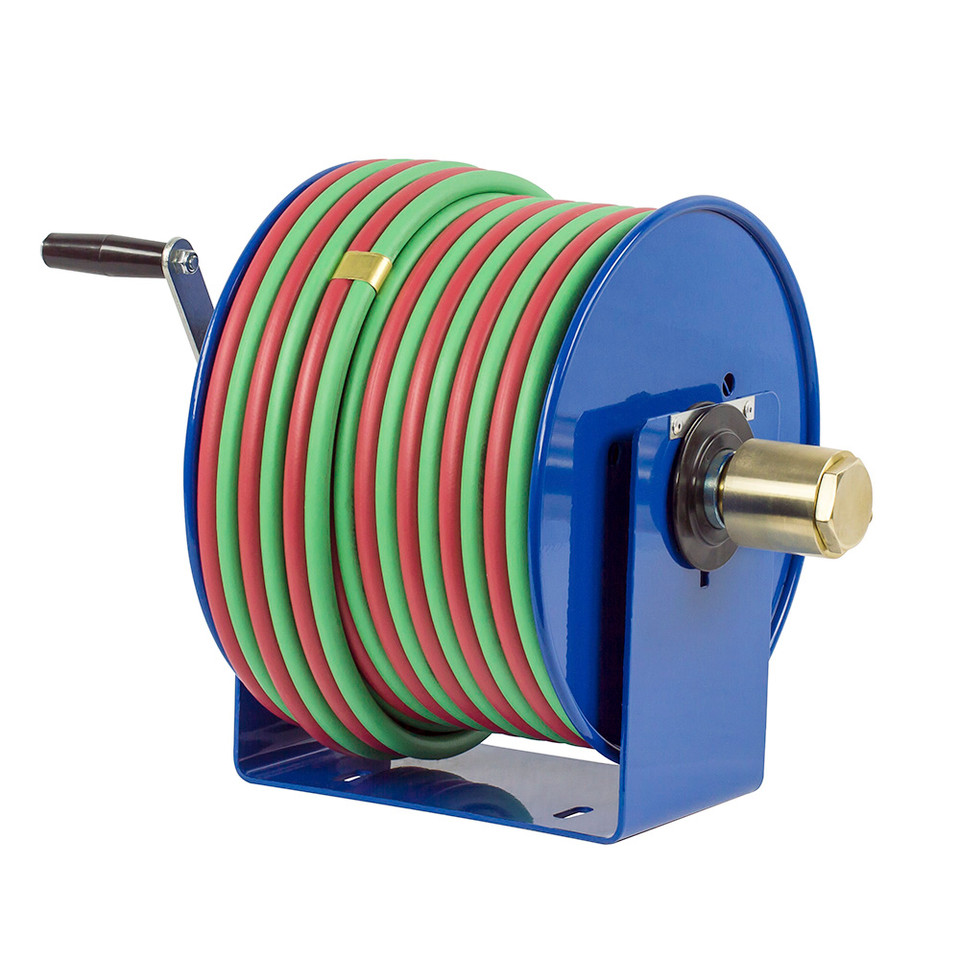

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Welding Hand Crank Hose Reel | Series: 100W Series | Hose I.D.: 1/4" | Hose Length: 200 ft | Hose Included: No | Max Pressure: 200 PSI

Features:

• External 90-degree full-flow dual-ported brass swivel provides both connections from the same side of the reel.
• VITON swivel seals support the 100W Series welding reel configuration.
• Compact, solid one-piece heavy-gauge steel U-shaped frame with an open drum design.
• Composite bearing promotes smooth reel rotation during hose payout and rewind.
• Adjustable tension brake helps prevent free-wheeling during operation, transport, or storage.
• Direct hand crank rewind provides straightforward manual hose retrieval.
• Durable proprietary CPC powder coat process helps protect the steel reel construction.
• Rolled edges and ribbed discs provide added strength and safety.

Made in USA:

2 Year Warranty

Applications:

• Manufacturing plants and facilities requiring organized welding hose storage.
• Maintenance, repair, and operations departments managing oxy-acetylene welding hose.
• Welding and service trucks that need manually controlled storage for extended hose runs.
• Welding shops, automotive facilities, and fleet maintenance operations.
• Garage settings, pipelines, mining, construction, railroad operations, and marine or shipbuilding applications.

FAQs:

• Q: Does the Coxreels 117WL-1-200 include welding hose?
  A: No. The 117WL-1-200 is the less-hose model and is supplied without hose. It is sized for up to 200 feet of 1/4-inch I.D. hose.
• Q: What type of welding hose is this reel sized for?
  A: Coxreels lists the 117WL-1-200 in the oxygen-acetylene section of the 100W Series. The corresponding hose-equipped models use oxy-acetylene welding hose with 9/16"-18 UNF welding hose fittings.
• Q: Is the 117WL-1-200 a spring rewind reel?
  A: No. The 100W Series uses direct hand crank rewind, allowing the operator to manually retrieve the hose onto the reel.
• Q: How does the reel help control unwanted drum rotation?
  A: An adjustable tension brake helps prevent free-wheeling during operation, transportation, and storage.
• Q: What is the maximum pressure rating of this reel?
  A: The Coxreels 117WL-1-200 is rated for a maximum pressure of 200 PSI.
