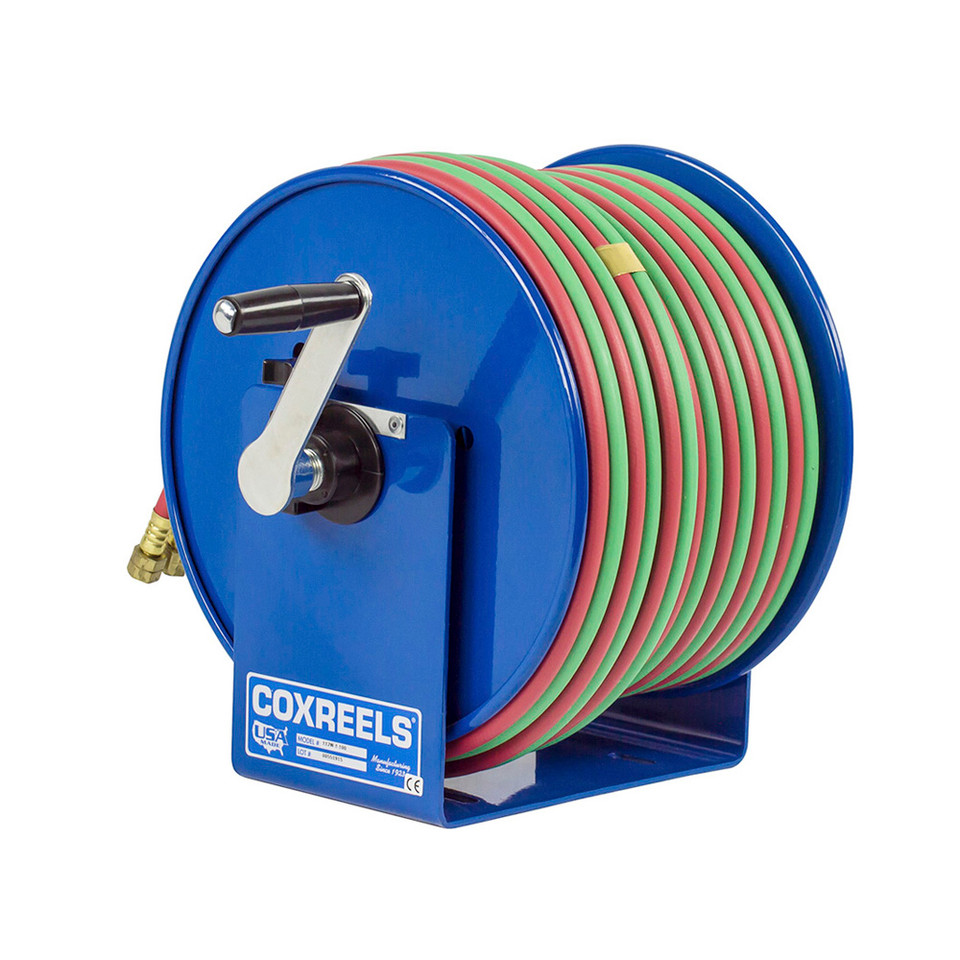

Coxreels 112W-1-100 Welding Hand Crank Hose Reel | 100W Series | 1/4" Hose Diameter | 100' Hose Length | 200 Max PSI

Built for organized oxygen-acetylene welding hose handling, the Coxreels 112W-1-100 Welding Hand Crank Hose Reel combines a 100 ft hose length with a 1/4" hose I.D. for extended reach around welding bays, fabrication areas, maintenance shops, and mobile service setups. Part of the 100W Series, this manually operated reel is rated for a maximum pressure of 200 PSI. The direct hand crank gives the operator control over hose retrieval, while the adjustable tension brake helps limit unwanted free-wheeling during use, transport, and storage.

The 112W-1-100 uses a compact, one-piece heavy-gauge steel "U"-shaped frame with an open drum design for accessible hose management. An external 90-degree full-flow dual-ported brass swivel positions both connections on the same side of the reel, helping simplify routing in space-conscious installations. A composite bearing supports smooth drum rotation, while rolled edges and ribbed discs reinforce the reel structure for routine welding environments. Unlike the less-hose 112WL-1-100 configuration, the 112W-1-100 is supplied with hose.

Type: Welding Hand Crank Hose Reel | Series: 100W Series | Hose I.D.: 1/4" | Hose Length: 100 ft | Hose Included: Yes | Max Pressure: 200 PSI

Features:

• Direct hand crank rewind provides controlled manual hose retrieval without a spring or powered rewind mechanism.
• Supplied with 100 feet of 1/4-inch I.D. twin welding hose for extended working reach.
• External 90-degree full-flow dual-ported brass swivel places both connections on the same side of the reel.
• Compact, one-piece heavy-gauge steel "U"-shaped frame supports efficient installation in welding and service areas.
• Adjustable tension brake helps prevent unwanted free-wheeling during operation, transportation, and storage.
• Composite bearing supports smooth drum rotation during hose payout and manual rewind.
• Rolled edges and ribbed discs add strength to the reel structure while supporting hose handling.
• CPC powder coat finish provides a durable protective coating for the steel reel components.

Made in USA:

2 Year Warranty

Applications:

• Welding and fabrication shops managing oxygen-acetylene hose around workstations and welding bays.
• Mobile welding and service vehicles requiring organized storage for longer welding hose runs between jobs.
• Manufacturing and plant maintenance departments performing oxy-fuel welding, cutting, heating, and brazing work.
• Automotive and fleet repair facilities handling routine metal repair and fabrication tasks.
• Construction and field service operations where controlled manual hose storage helps keep welding equipment organized.

FAQs:

• Q: Does the Coxreels 112W-1-100 include hose?
  A: Yes. The 112W-1-100 is the hose-equipped configuration and is supplied with 100 feet of 1/4-inch I.D. twin welding hose.
• Q: What is the difference between the 112W-1-100 and 112WL-1-100?
  A: The 112W-1-100 is supplied with hose, while the 112WL-1-100 is the less-hose reel configuration. Both models provide capacity for the same 1/4-inch I.D., 100-foot hose size.
• Q: Is the 112W-1-100 a spring rewind reel?
  A: No. This model uses a direct hand crank, allowing the operator to manually retrieve the hose onto the reel. An adjustable tension brake helps control unwanted drum movement.
• Q: What type of service is this welding hose reel intended for?
  A: The Coxreels 112W-1-100 is configured for oxygen-acetylene welding hose service and has a maximum pressure rating of 200 PSI.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
