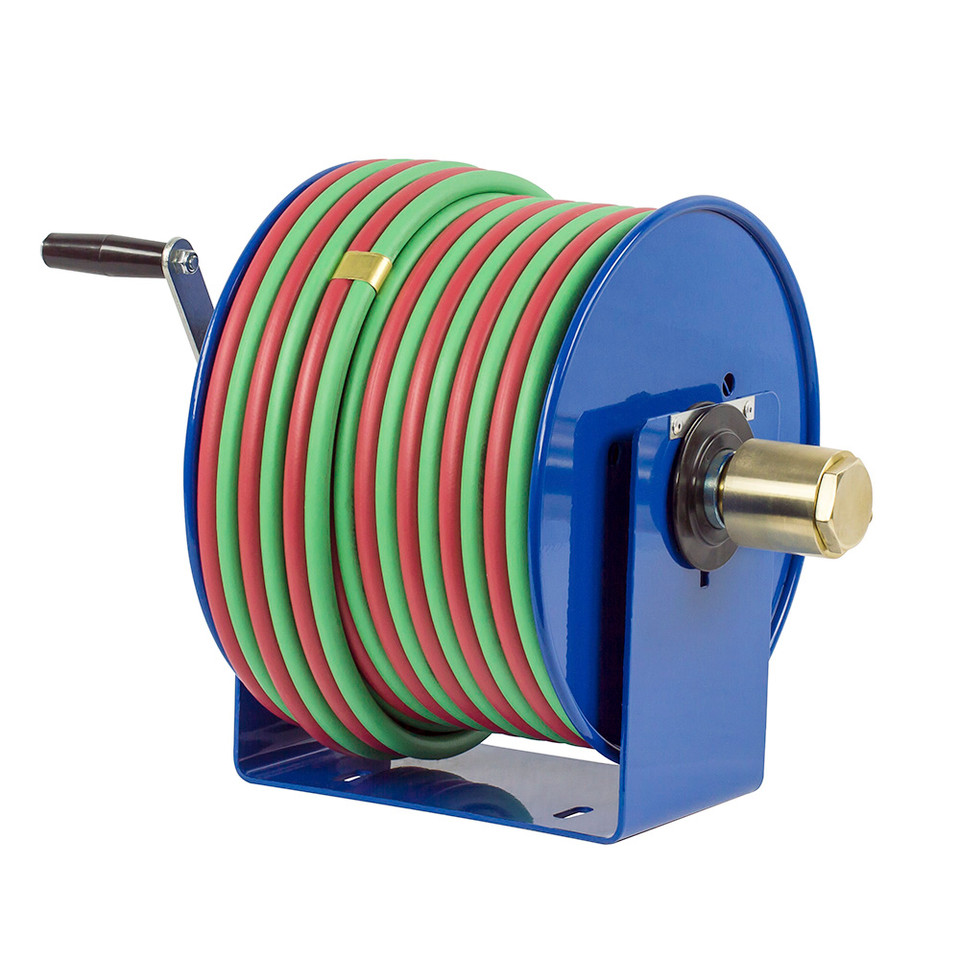

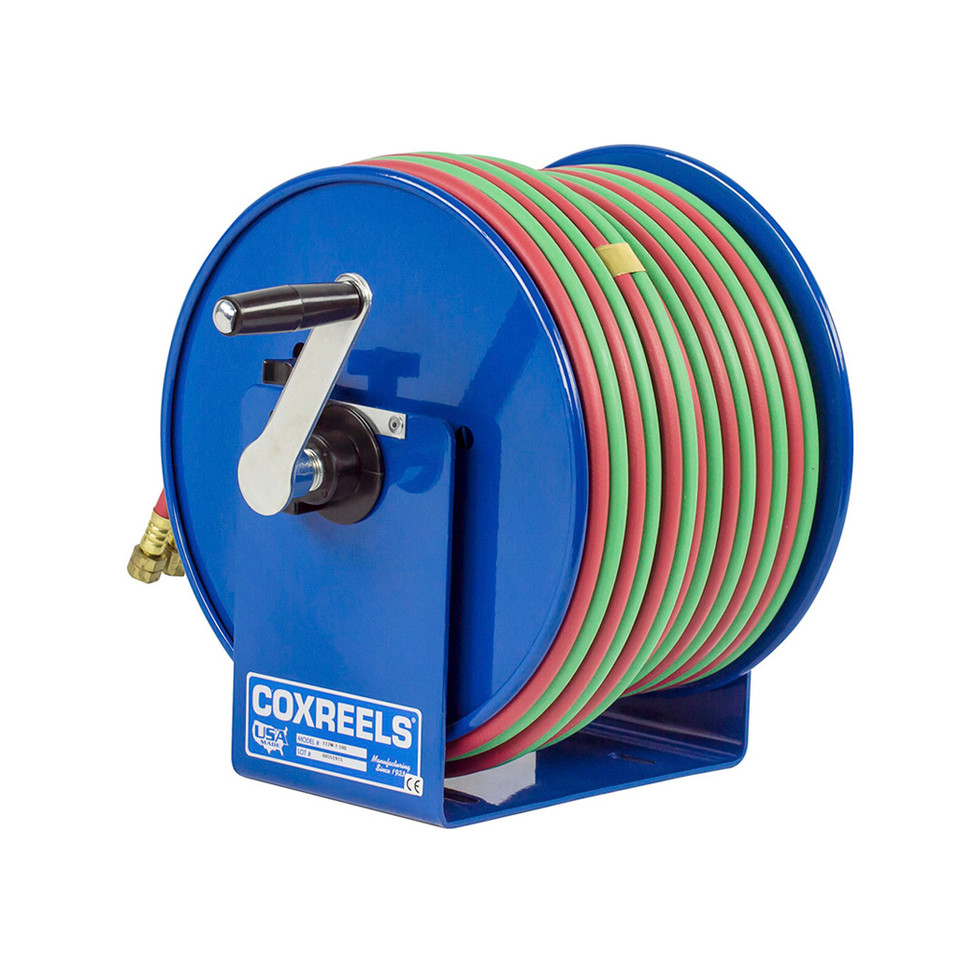

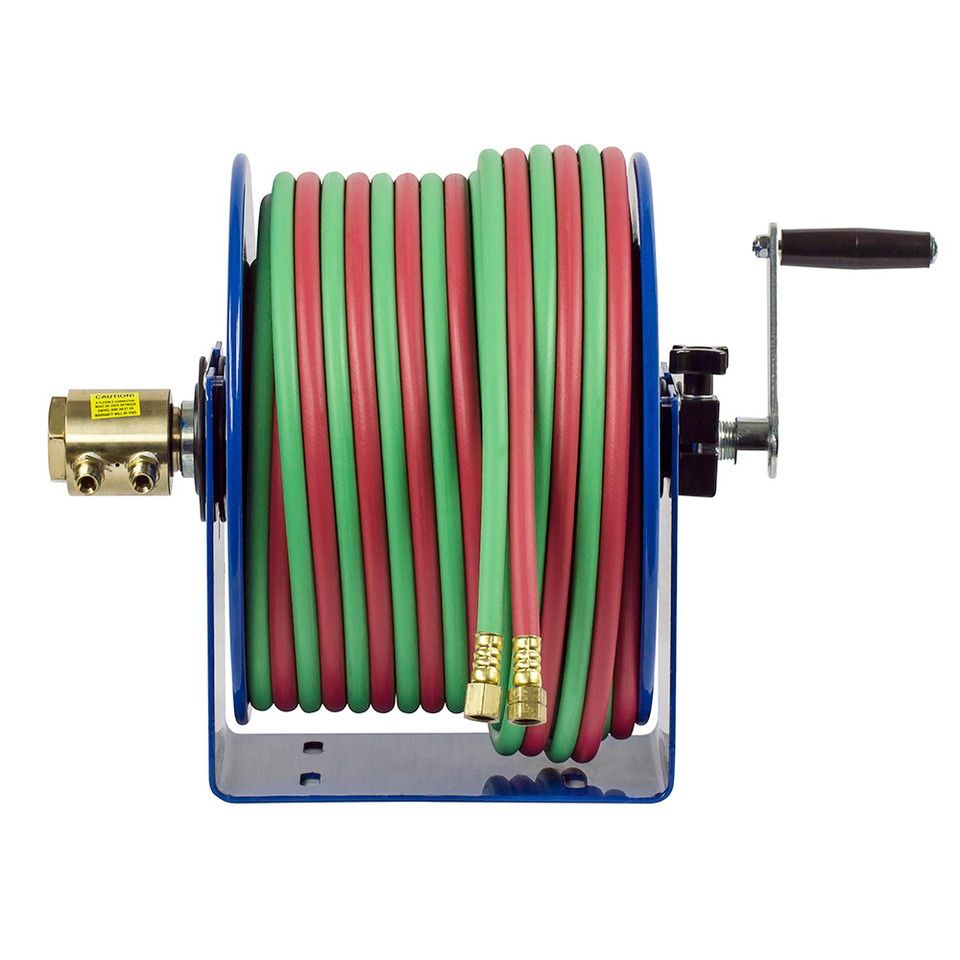

Coxreels 112W-1-50 Welding Hand Crank Hose Reel | 100W Series | 1/4" Hose Diameter | 50' Hose Length | 200 Max PSI

Built for managing oxygen-acetylene welding hose in fabrication shops, maintenance areas, service vehicles, and other welding workspaces, the Coxreels 112W-1-50 Welding Hand Crank Hose Reel comes equipped with 50 ft of 1/4" I.D. welding hose. Part of the compact 100W Series, this reel carries a maximum pressure rating of 200 PSI and uses a direct hand crank for controlled mechanical hose retrieval. The 50-foot hose length provides practical working reach while keeping the reel footprint smaller than longer-capacity models in the series.

The 112W-1-50 features an external 90-degree full-flow dual-ported brass swivel with VITON seals, placing both welding gas connections on the same side of the reel for convenient access. Its one-piece heavy-gauge steel U-shaped frame combines a compact layout with an open drum design, while CNC-spun ribbed discs with rolled edges add structural strength and help protect the hose. An adjustable tension brake lets the operator control drum movement and helps prevent unwanted free-wheeling during operation, transport, or storage.

Type: Welding Hand Crank Hose Reel | Series: 100W Series | Hose I.D.: 1/4" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 200 PSI

Features:

• Supplied with 50 feet of 1/4-inch I.D. oxygen-acetylene welding hose for a ready-to-use hose management setup.
• External 90-degree full-flow dual-ported brass swivel places both connections on the same side of the reel for accessible plumbing connections.
• VITON swivel seals support the reel's welding gas service configuration.
• Direct hand crank rewind gives the operator mechanical control over hose retrieval and storage.
• Adjustable tension brake controls drum movement and helps prevent free-wheeling during operation, transportation, or storage.
• Solid one-piece heavy-gauge steel U-shaped frame provides a compact mounting footprint.
• CNC-spun ribbed discs with rolled edges add strength while helping protect the hose during handling.
• Chip-resistant and rust-inhibiting CPC powder coat finish helps protect the steel reel structure.

Made in USA:

2 Year Warranty

Applications:

• Welding and fabrication shops managing oxygen-acetylene hose around individual workstations and welding bays.
• Mobile welding and service vehicles where a compact 50-foot hose reel helps keep equipment organized between jobs.
• Industrial maintenance and MRO departments performing routine oxy-fuel welding, cutting, heating, and brazing work.
• Automotive and fleet repair facilities handling metal repair, fabrication, and related welding tasks.
• Construction and field service operations requiring controlled storage and manual retrieval of welding hose.

FAQs:

• Q: Does the Coxreels 112W-1-50 include welding hose?
  A: Yes. This model is supplied with 50 feet of 1/4-inch I.D. oxygen-acetylene welding hose. The hose uses 9/16"-18 UNF welding hose fittings.
• Q: What is the difference between the 112W-1-50 and 112WL-1-50?
  A: The 112W-1-50 includes 50 feet of welding hose, while the 112WL-1-50 is the less-hose version. Both models share the same basic reel size and 200 PSI maximum pressure rating.
• Q: Is the 112W-1-50 a spring rewind reel?
  A: No. This model uses a direct hand crank for manual hose retrieval. The adjustable tension brake helps control drum rotation and prevent unwanted free-wheeling.
• Q: How much mounting space does the 112W-1-50 require?
  A: The reel measures 15.5 inches wide by 13 inches high by 12 inches long. It has a 6-inch by 6-inch base and a 4-inch by 3-inch mounting pattern, which should be checked against the available installation area before mounting.
