Coxreels 112WL-1-100 Welding Hand Crank Hose Reel | 100W Series | 1/4" Hose Diameter | 100' Hose Length | 200 Max PSI | Less Hose

Built for organized oxygen-acetylene welding hose storage and handling, the Coxreels 112WL-1-100 Welding Hand Crank Hose Reel provides capacity for up to 100 ft of 1/4" I.D. twin welding hose. Part of the 100W Series, this manual rewind reel is rated for a maximum pressure of 200 PSI and gives welding shops, fabrication facilities, maintenance departments, and service vehicles a practical way to manage long hose runs. The direct hand crank allows controlled manual retrieval, while the adjustable tension brake helps reduce unwanted free-wheeling during operation, transport, and storage.

The 112WL-1-100 features a compact, one-piece heavy-gauge steel "U"-shaped frame and an open drum design for straightforward hose access. Its external 90-degree full-flow dual-ported brass swivel places both connections on the same side of the reel, helping simplify connection routing in compact installations. A composite bearing supports smooth drum rotation, while rolled edges and ribbed discs reinforce the reel structure. This model is supplied less hose, allowing the buyer to select and install compatible 1/4-inch I.D. twin welding hose separately.

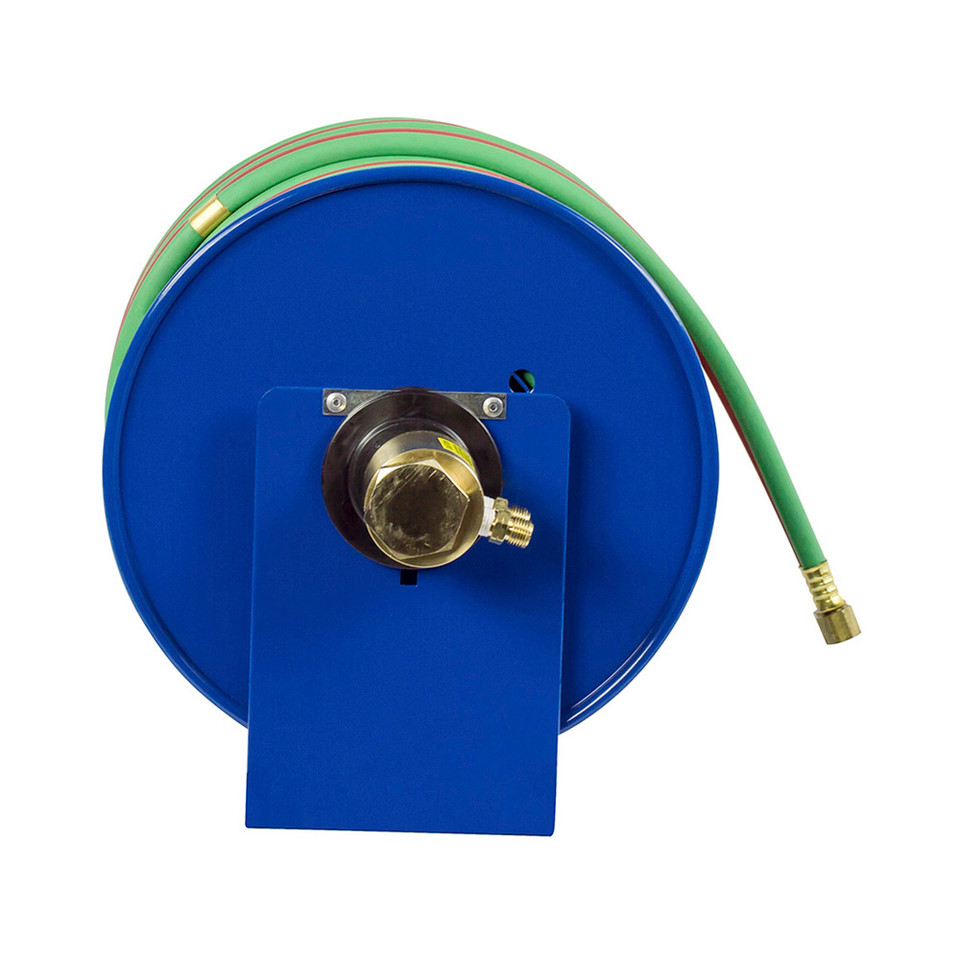

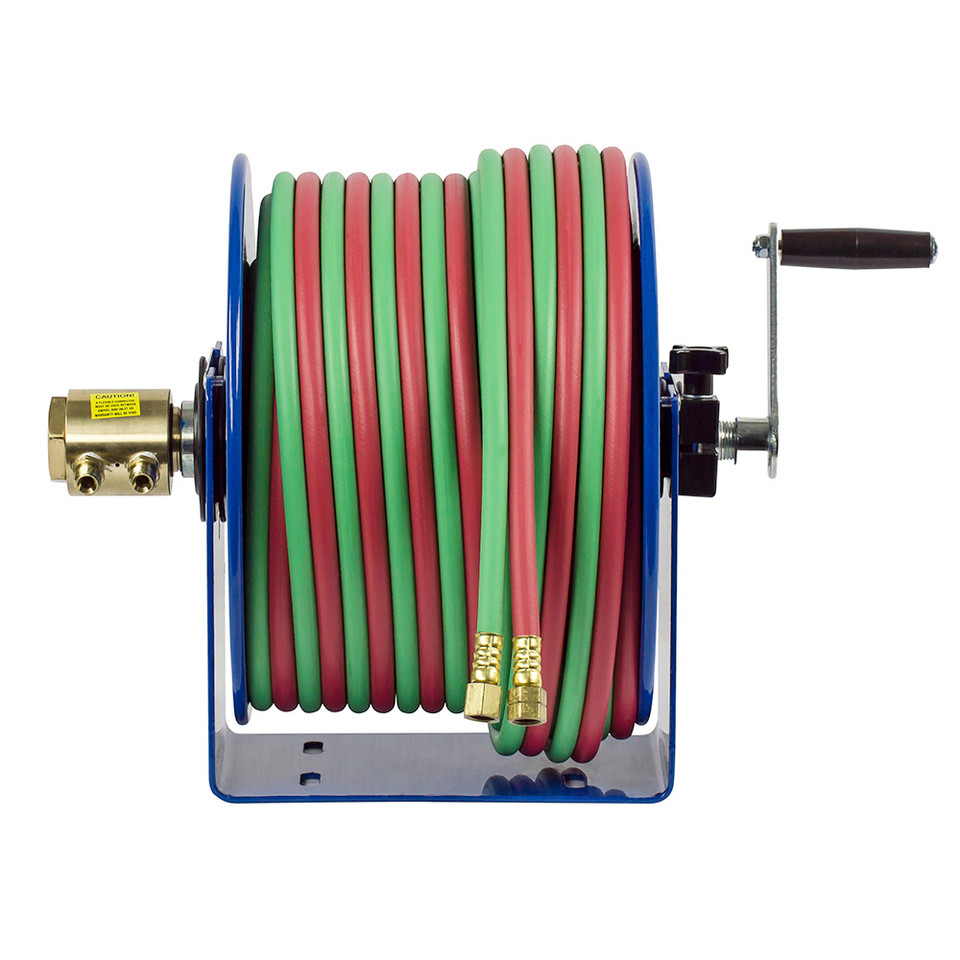

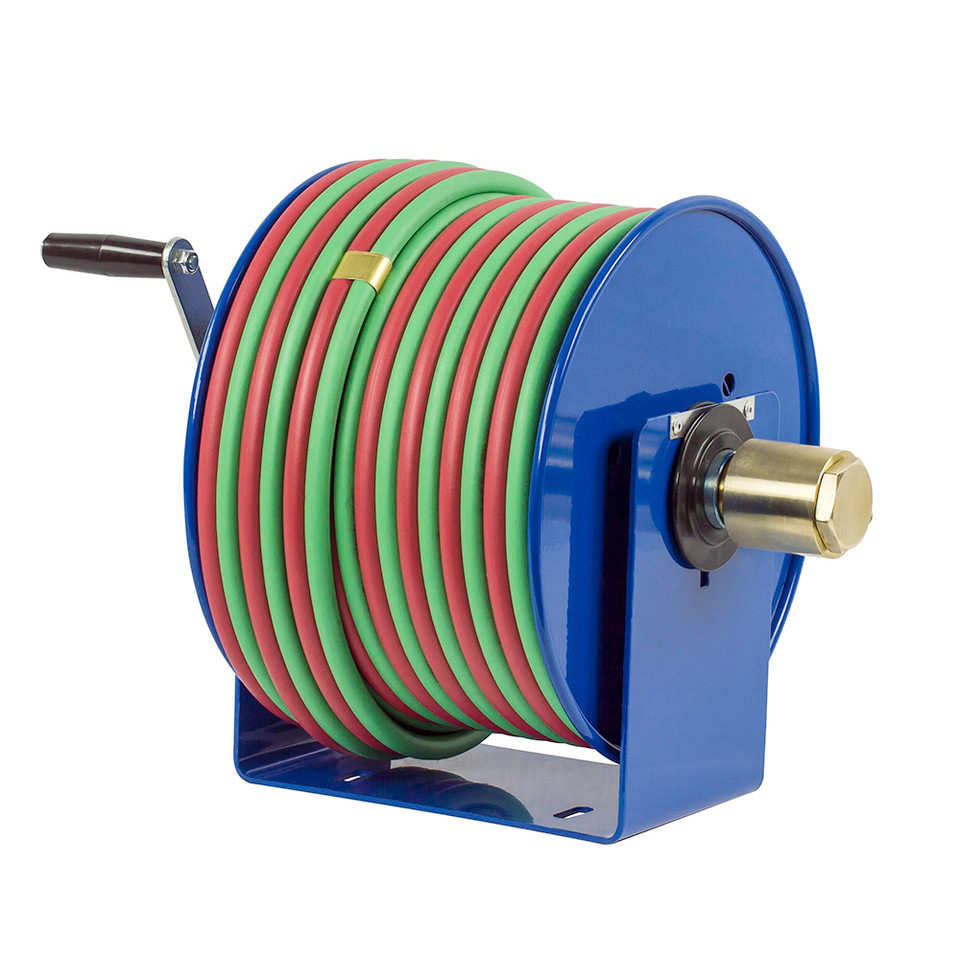

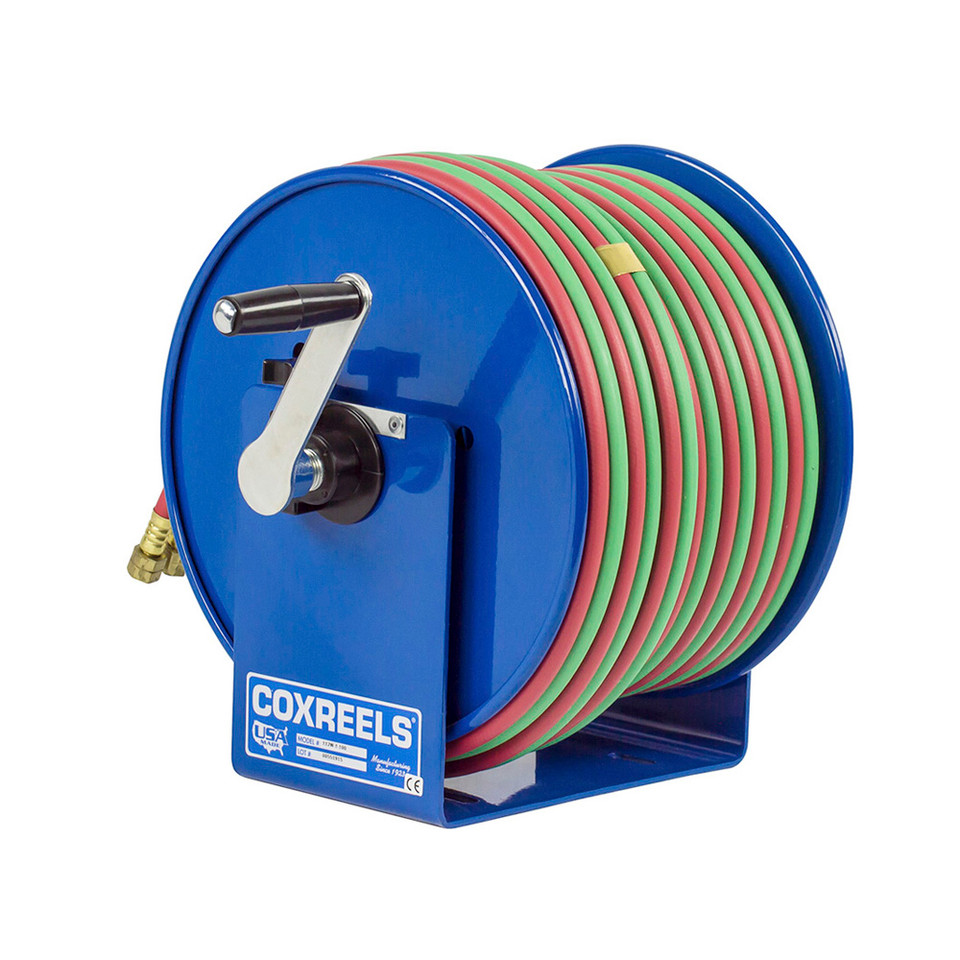

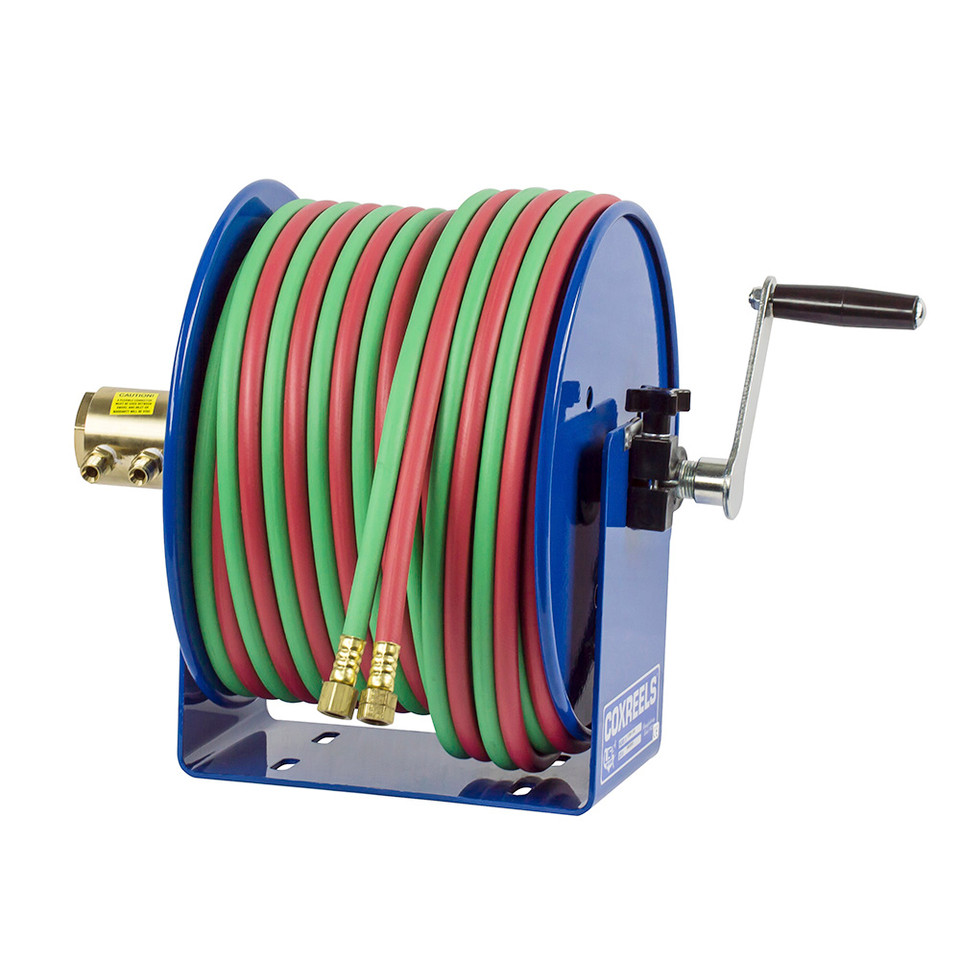

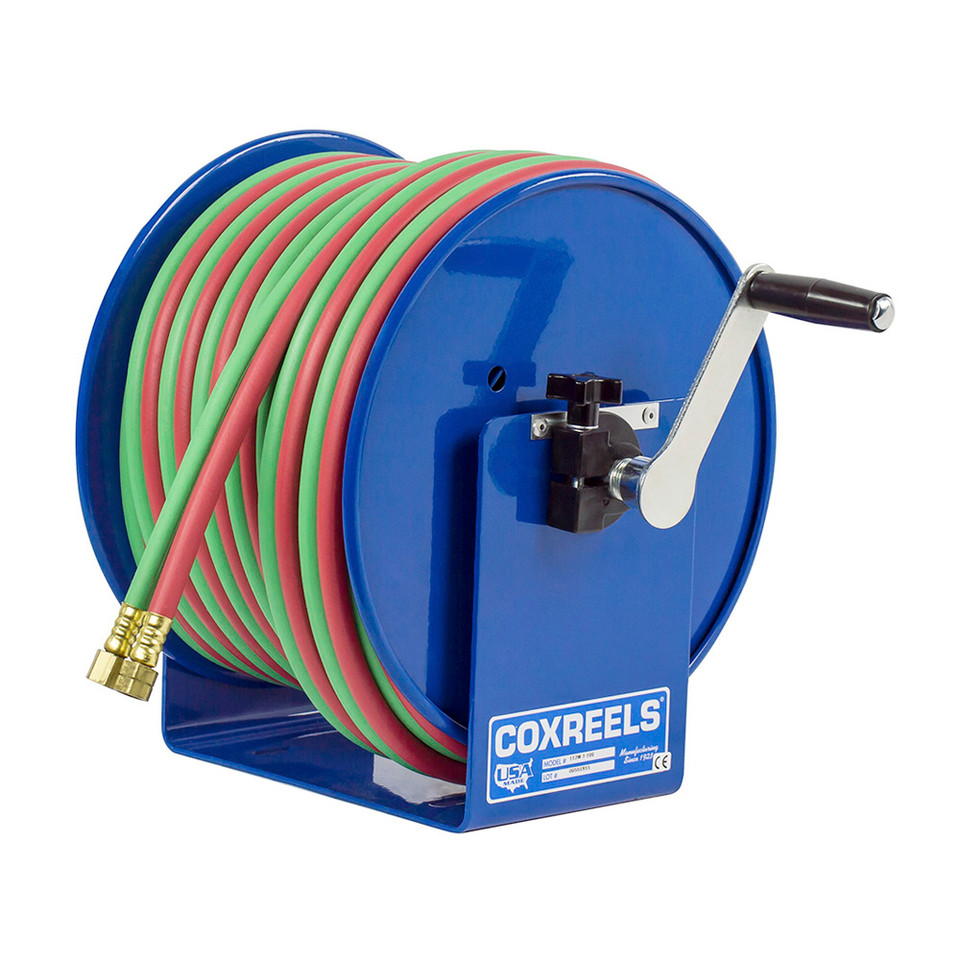

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Welding Hand Crank Hose Reel | Series: 100W Series | Hose I.D.: 1/4" | Hose Length: 100 ft | Hose Included: No | Max Pressure: 200 PSI

Features:

• Direct hand crank rewind provides manual control when retrieving and storing welding hose.
• External 90-degree full-flow dual-ported brass swivel places both connections on the same side of the reel.
• Compact, one-piece heavy-gauge steel "U"-shaped frame supports space-conscious reel installations.
• Open drum design provides convenient access to the hose during installation and service.
• Adjustable tension brake helps prevent unwanted free-wheeling during operation, transport, and storage.
• Composite bearing supports smooth drum rotation during hose payout and rewind.
• Rolled edges and ribbed discs add strength to the reel structure.
• CPC powder coat finish provides a durable protective coating for the steel reel components.

Made in USA:

2 Year Warranty

Applications:

• Welding and fabrication shops managing long runs of compatible twin oxygen-acetylene hose.
• Mobile welding and service vehicles where manual hose storage helps keep equipment organized between jobs.
• Manufacturing and plant maintenance areas using oxy-fuel equipment for welding, cutting, heating, or brazing work.
• Automotive and fleet repair facilities performing welding and metal fabrication tasks.
• Work areas requiring a manually operated reel for controlled welding hose storage and retrieval.

FAQs:

• Q: Does the Coxreels 112WL-1-100 include welding hose?
  A: No. This model is supplied less hose, meaning the reel does not include hose. It provides capacity for up to 100 feet of compatible 1/4-inch I.D. twin welding hose.
• Q: What type of service is the 112WL-1-100 intended for?
  A: This 100W Series reel is configured for oxygen-acetylene welding hose service. The hose and system connections selected for installation must be compatible with the intended application.
• Q: Is this a spring rewind hose reel?
  A: No. The 112WL-1-100 is a hand crank reel, so the operator manually rewinds the hose onto the drum.
• Q: What is the maximum pressure rating of this reel?
  A: The Coxreels 112WL-1-100 has a maximum pressure rating of 200 PSI. The installed hose and other system components must also be appropriately rated for the application.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
