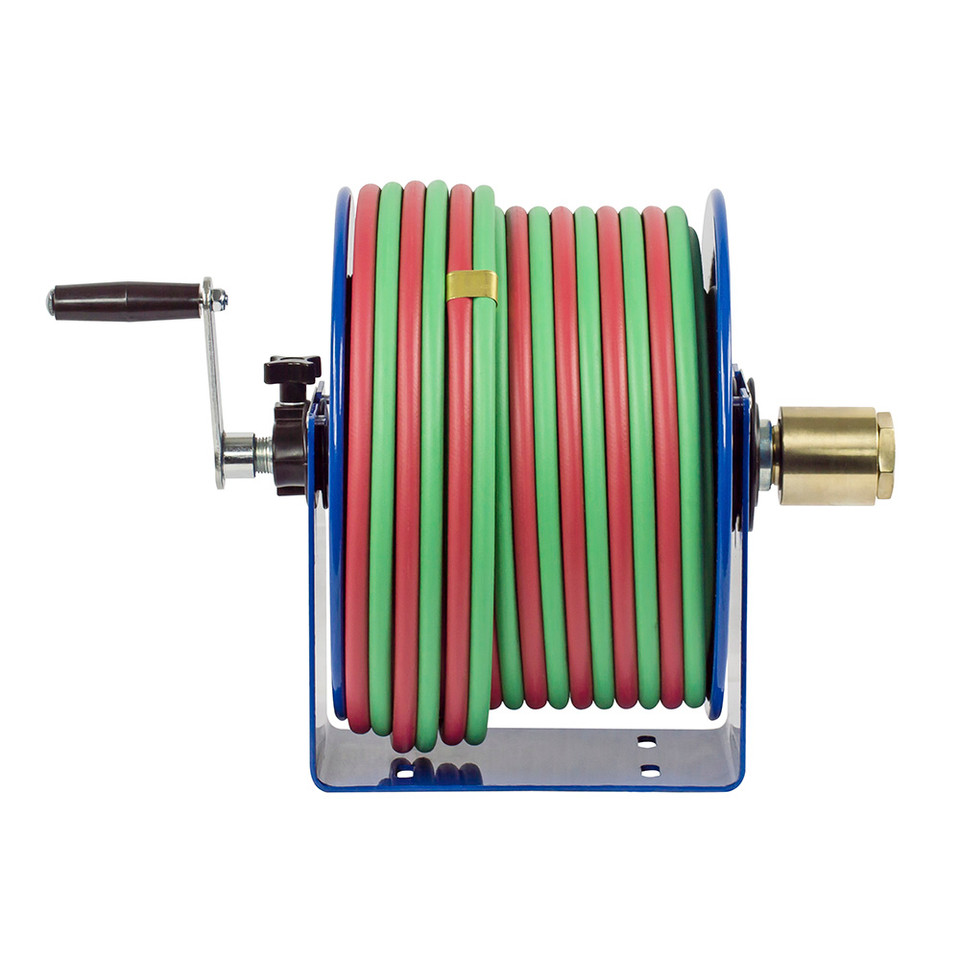

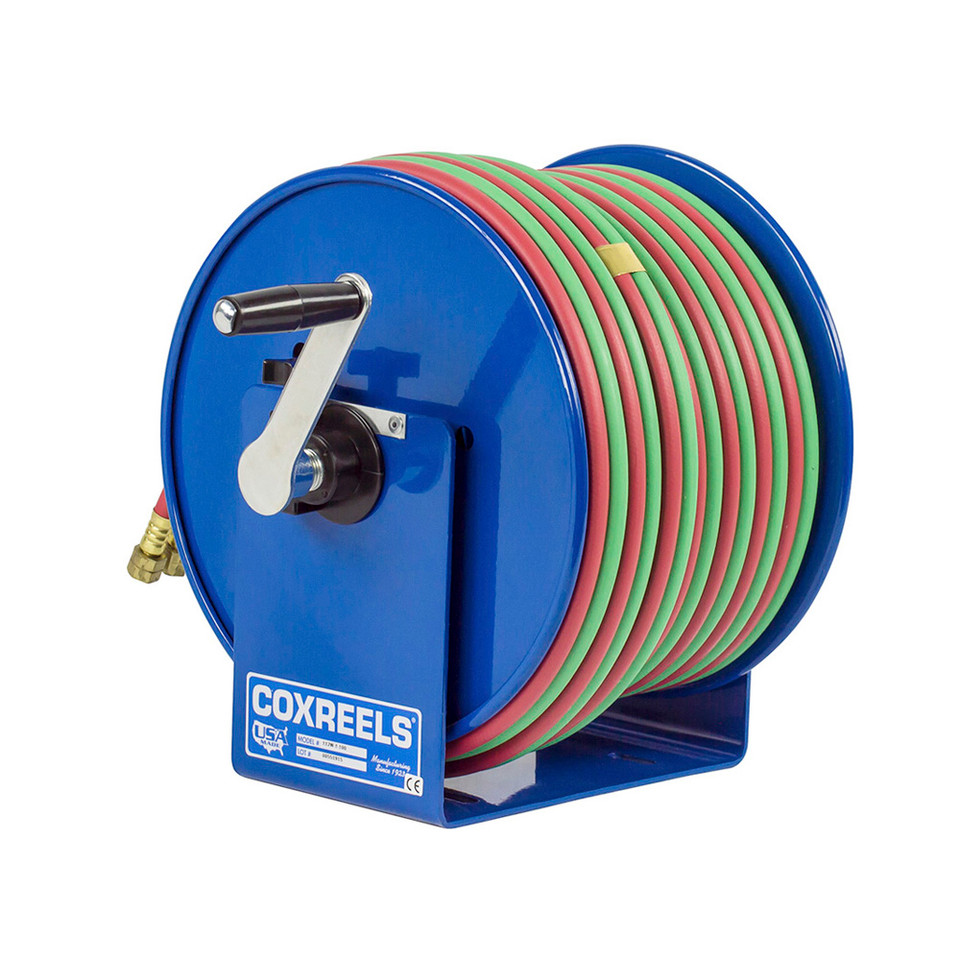

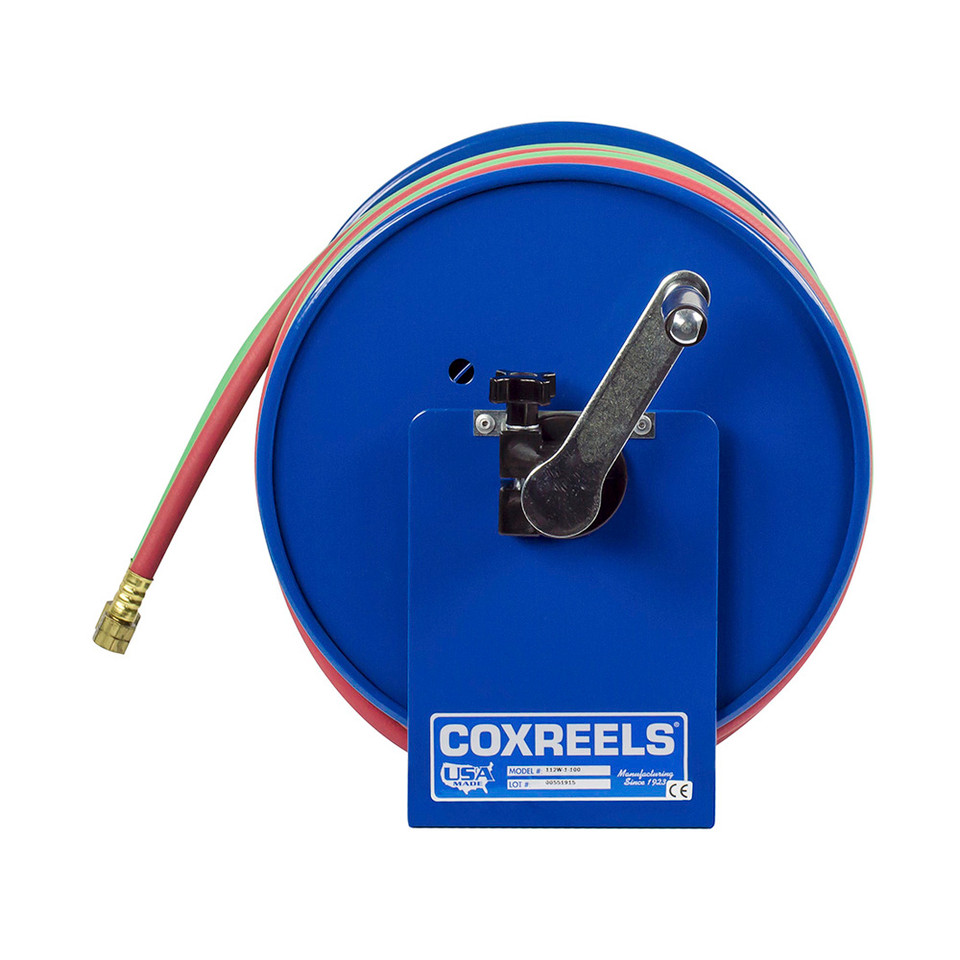

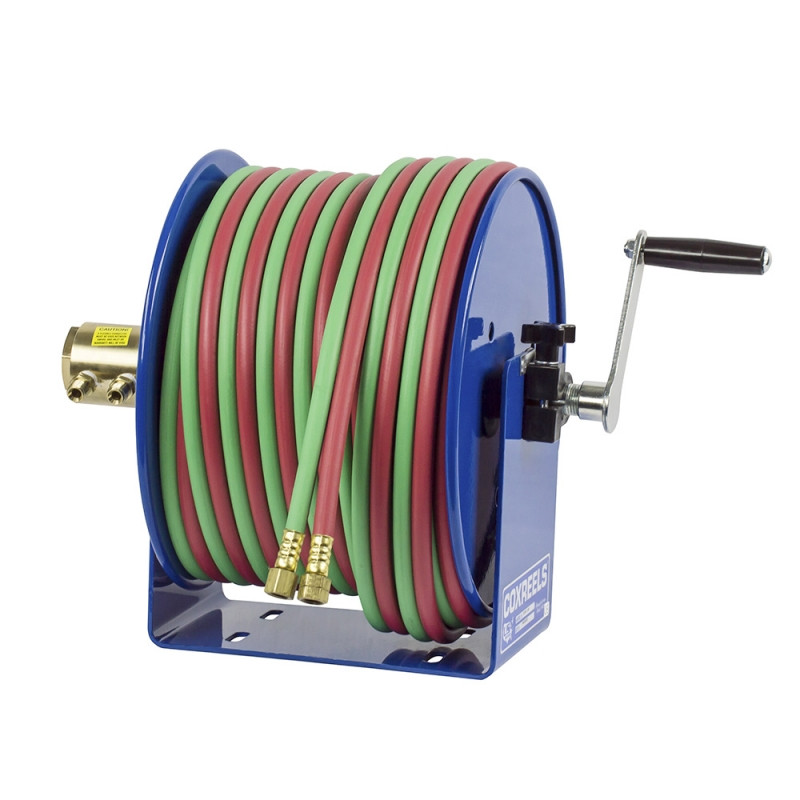

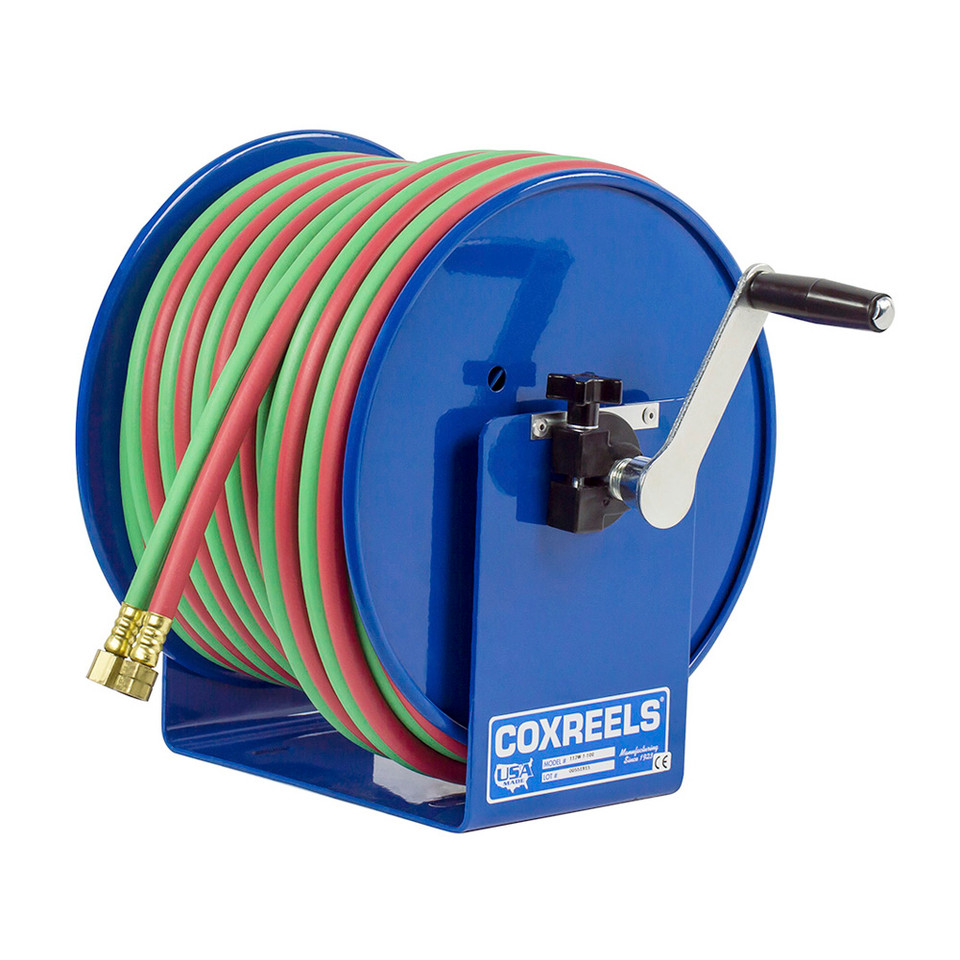

Coxreels 112WT-1-100 Welding Hand Crank Hose Reel | 100W Series | 1/4" Hose Diameter | 100' Hose Length | 200 Max PSI

Built for oxygen-acetylene welding setups that require extended working reach and organized hose storage, the Coxreels 112WT-1-100 Welding Hand Crank Hose Reel is configured with 100 ft of 1/4" I.D. twin welding hose. Part of the 100W Series, this manual rewind reel carries a maximum pressure rating of 200 PSI and is suited to welding shops, fabrication facilities, maintenance operations, and mobile service applications. The direct hand crank gives the operator control over hose retrieval, while the adjustable tension brake helps manage drum movement during operation, transportation, and storage.

The 112WT-1-100 combines a compact, one-piece heavy-gauge steel U-shaped frame with an open drum design for accessible hose handling. Its external 90-degree full-flow dual-ported brass swivel places both connections on the same side of the reel, simplifying connection routing around the installation area. A composite bearing supports smooth drum rotation, while rolled edges and ribbed discs strengthen the reel assembly. The included twin welding hose provides a complete hose-and-reel configuration for applications requiring up to 100 feet of reach.

Type: Welding Hand Crank Hose Reel | Series: 100W Series | Hose I.D.: 1/4" | Hose Length: 100 ft | Hose Included: Yes | Max Pressure: 200 PSI

Features:

• Direct hand crank rewind provides controlled manual retrieval and storage of the welding hose.
• Supplied with 100 feet of 1/4-inch I.D. twin welding hose for extended reach around larger work areas.

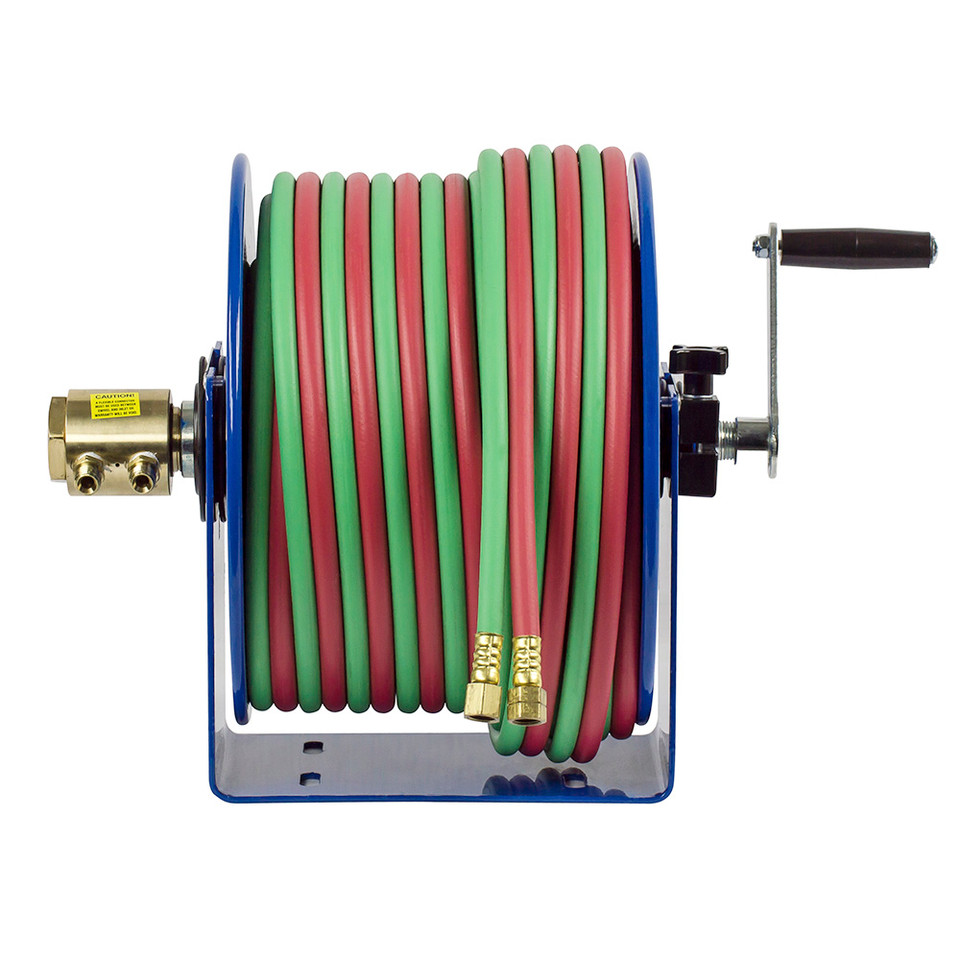

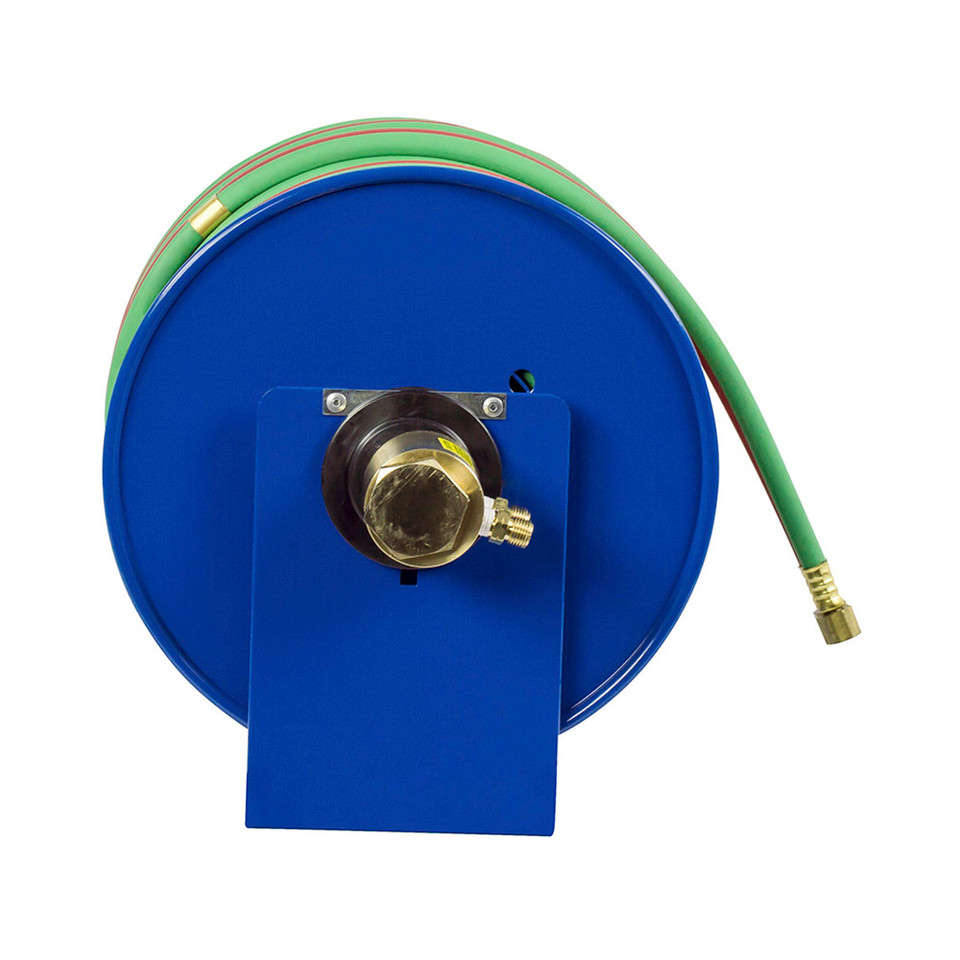

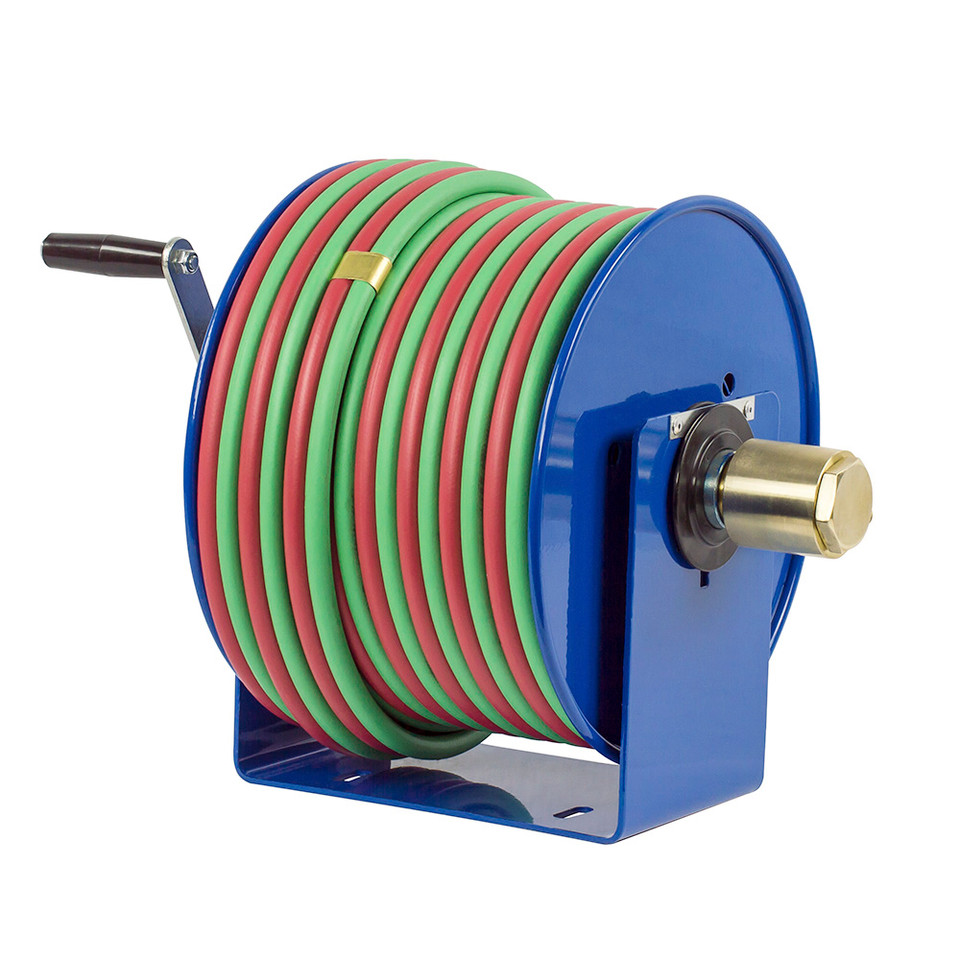

• External 90-degree full-flow dual-ported brass swivel positions both connections on the same side of the reel for convenient connection routing.
• Compact, one-piece heavy-gauge steel U-shaped frame provides a stable platform for fixed or mobile installations.
• Adjustable tension brake helps prevent unwanted free-wheeling during operation, transportation, and storage.
• Composite bearing supports smooth drum rotation during hose payout and manual rewind.
• Rolled edges and ribbed discs add structural strength to the reel assembly.
• CPC powder coat finish helps protect the steel reel components against wear in working environments.

Made in USA:

2 Year Warranty

Applications:

• Welding and metal fabrication shops requiring extended hose reach between gas supply equipment and work areas.
• Mobile welding and field service vehicles where a hand crank reel keeps long twin welding hose runs organized between jobs.
• Manufacturing and plant maintenance departments performing oxy-fuel welding, cutting, heating, and brazing operations.
• Automotive, fleet, and equipment repair facilities handling welding and metal repair tasks across larger service areas.
• Construction and field fabrication operations that benefit from controlled storage and manual retrieval of 100-foot welding hose assemblies.

FAQs:

• Q: Does the Coxreels 112WT-1-100 include welding hose?
  A: Yes. The 112WT-1-100 is supplied with 100 feet of 1/4-inch I.D. twin welding hose, providing an assembled hose-and-reel configuration for compatible welding applications.
• Q: How is the hose rewound onto the 112WT-1-100?
  A: This model uses a direct hand crank rather than an automatic spring rewind mechanism. The operator manually retrieves the hose, while the adjustable tension brake helps control unwanted drum movement.
• Q: What is the advantage of the 100-foot hose length?
  A: The longer hose provides additional working reach for larger fabrication areas, maintenance facilities, and mobile service applications where the reel cannot always be positioned close to the work. Buyers should confirm that 100 feet provides the appropriate reach for their specific setup.
• Q: What type of welding service is the 112WT-1-100 used for?
  A: The 100W Series is configured for oxygen-acetylene welding hose applications. The reel has a maximum pressure rating of 200 PSI and should be used with equipment and connections appropriate for the intended welding system.
