Coxreels 112WL-1-50 Welding Hand Crank Hose Reel | 100W Series | 1/4" Hose Diameter | 50' Hose Length | 200 Max PSI | Less Hose

Built for organized oxygen-acetylene welding hose storage in fabrication shops, maintenance areas, service vehicles, and welding workstations, the Coxreels 112WL-1-50 Welding Hand Crank Hose Reel provides capacity for up to 50 ft of 1/4" I.D. twin welding hose. Part of the compact 100W Series, this manual rewind reel is rated for a maximum pressure of 200 PSI. Its direct hand crank gives the operator controlled hose retrieval, while the adjustable tension brake helps prevent unwanted drum free-wheeling during use, transportation, and storage.

The 112WL-1-50 uses a compact, one-piece heavy-gauge steel U-shaped frame with an open drum design for accessible hose installation and handling. An external 90-degree full-flow dual-ported brass swivel positions both connections on the same side of the reel, helping simplify routing in space-conscious welding setups. A composite bearing supports smooth drum rotation, while rolled edges and ribbed discs reinforce the reel structure. This model is supplied less hose, allowing the buyer to install compatible 1/4-inch I.D. twin welding hose separately.

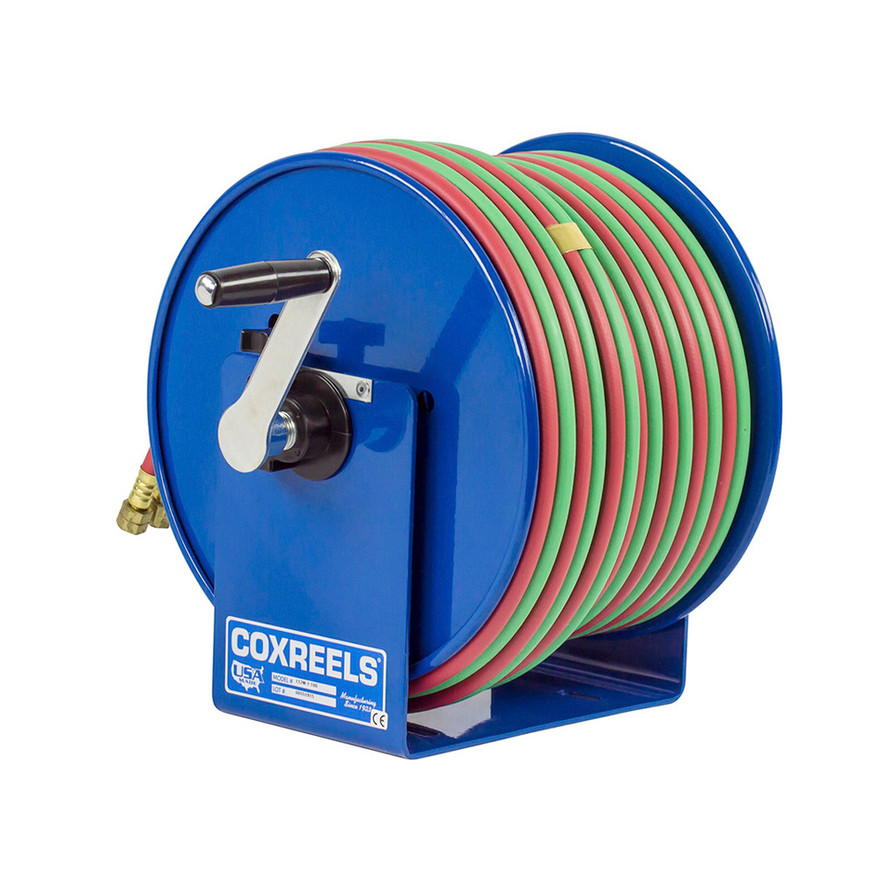

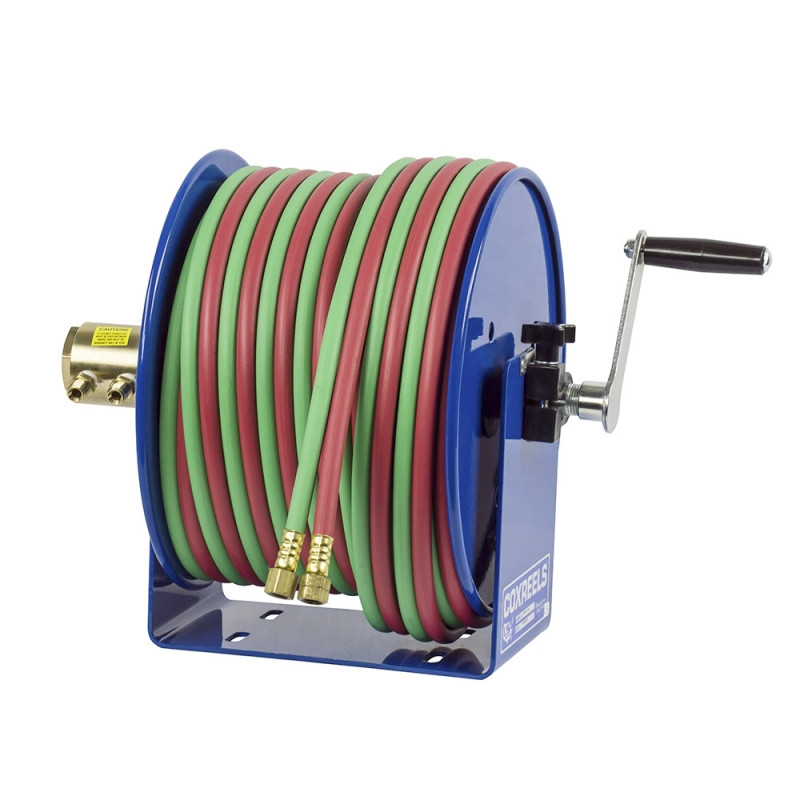

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Welding Hand Crank Hose Reel | Series: 100W Series | Hose I.D.: 1/4" | Hose Length: 50 ft | Hose Included: No | Max Pressure: 200 PSI

Features:

• Direct hand crank rewind gives the operator manual control over hose retrieval and storage.
• External 90-degree full-flow dual-ported brass swivel places both connections on the same side of the reel for convenient connection routing.
• Compact, one-piece heavy-gauge steel U-shaped frame supports installation where mounting space is limited.
• Open drum design provides straightforward access when installing or servicing the welding hose.
• Adjustable tension brake helps control drum movement and reduce unwanted free-wheeling during operation, transport, and storage.
• Composite bearing supports smooth reel rotation during hose payout and manual rewind.
• Rolled edges and ribbed discs add structural strength to the reel assembly.
• CPC powder coat finish provides a durable protective coating for the steel reel components.

Made in USA:

2 Year Warranty

Applications:

• Welding and fabrication shops that need compact storage for compatible twin oxygen-acetylene hose.
• Mobile welding and service vehicles where manually controlled hose storage helps keep equipment organized between jobs.
• Manufacturing and plant maintenance areas performing oxy-fuel welding, cutting, heating, and brazing work.
• Automotive and fleet repair facilities handling metal repair and fabrication tasks.
• Workstations where a 50-foot hose capacity provides useful reach without requiring a larger reel configuration.

FAQs:

• Q: Does the Coxreels 112WL-1-50 include welding hose?
  A: No. The 112WL-1-50 is supplied less hose. It provides capacity for up to 50 feet of compatible 1/4-inch I.D. twin welding hose, which must be purchased and installed separately.
• Q: What is the difference between the 112WL-1-50 and 112W-1-50?
  A: The 112WL-1-50 is the less-hose configuration, while the 112W-1-50 is supplied with welding hose. The less-hose model is useful when the buyer already has a compatible hose or needs to select a specific hose separately.
• Q: Is the 112WL-1-50 a spring rewind reel?
  A: No. This model uses a direct hand crank for manual hose retrieval. The adjustable tension brake helps control drum rotation during use and storage.
• Q: What type of service is this reel intended for?
  A: The Coxreels 112WL-1-50 is configured for oxygen-acetylene welding hose service and has a maximum pressure rating of 200 PSI. Any hose installed on the reel should be compatible with the intended welding system and operating requirements.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
