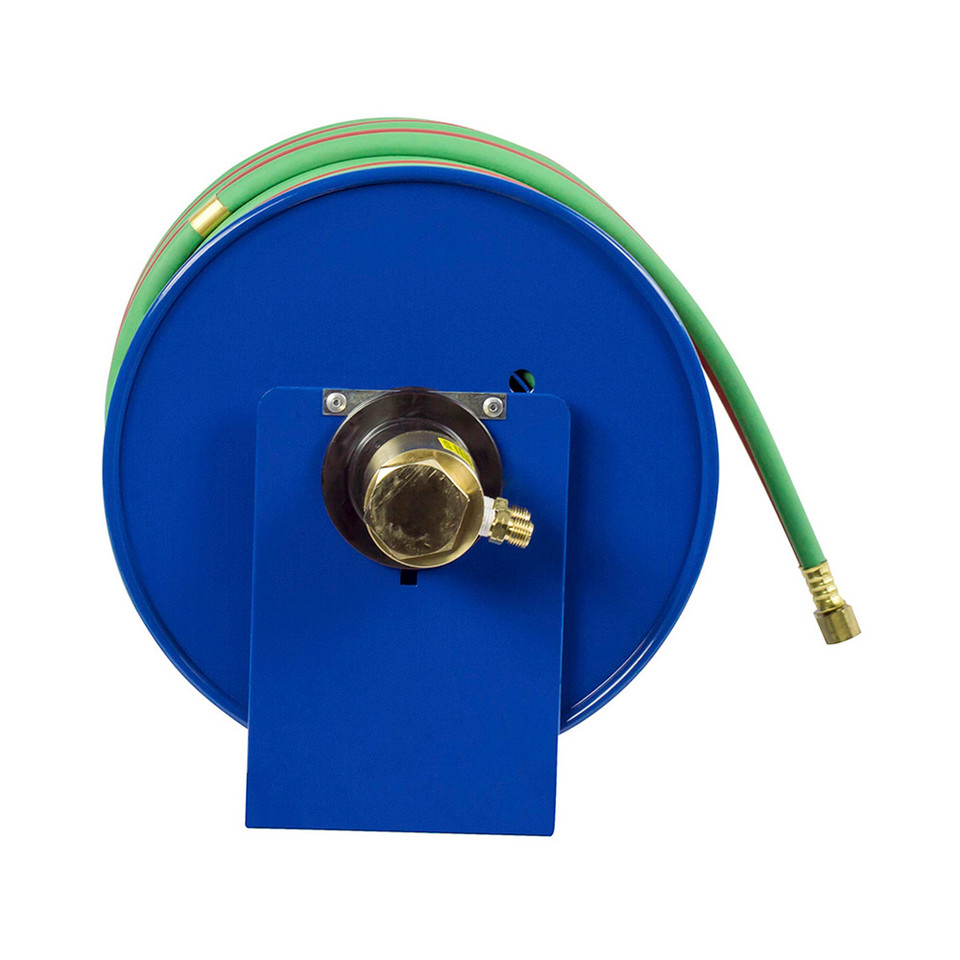

Coxreels 112WT-1-50 Welding Hand Crank Hose Reel | 100W Series | 1/4" Hose Diameter | 50' Hose Length | 200 Max PSI

Built for welding and cutting operations that need a compact reel with ready-to-use hose capacity, the Coxreels 112WT-1-50 Welding Hand Crank Hose Reel is configured for 50 ft of 1/4" I.D. twin Grade T welding hose. Part of the 100W Series, this manual rewind reel carries a maximum pressure rating of 200 PSI and provides controlled hose storage for fabrication shops, maintenance departments, repair facilities, and mobile service setups. The direct hand crank gives the operator positive control during retrieval, while the adjustable tension brake helps limit unwanted drum free-wheeling during use, transport, and storage.

The 112WT-1-50 combines a compact one-piece, heavy-gauge steel U-shaped frame with an open drum design for straightforward hose handling. Its external 90-degree full-flow dual-ported brass swivel keeps both connections on the same side of the reel, helping simplify routing in space-conscious installations. A composite bearing supports smooth drum rotation, while ribbed discs and rolled edges reinforce the reel assembly. With its shorter 50-foot hose configuration, this model provides practical reach without requiring the additional reel width and storage space associated with longer-capacity models.

Type: Welding Hand Crank Hose Reel | Series: 100W Series | Hose I.D.: 1/4" | Hose Length: 50 ft | Hose Included: Yes | Max Pressure: 200 PSI

Features:

• Supplied with 50 feet of 1/4-inch I.D. twin Grade T welding hose for a complete hose-and-reel configuration.
• Direct hand crank rewind provides controlled manual hose retrieval without relying on a spring rewind mechanism.
• External 90-degree full-flow dual-ported brass swivel places both connections on the same side of the reel for convenient connection routing.
• Compact one-piece, heavy-gauge steel U-shaped frame supports installation in fixed work areas and mobile service setups.
• Adjustable tension brake helps control drum movement and reduce unwanted free-wheeling during operation, transportation, and storage.
• Composite bearing supports smooth reel rotation during hose payout and rewind.
• Ribbed discs with rolled edges add structural strength to the reel assembly.
• CPC powder coat finish helps protect the steel reel components in working environments.

Made in USA:

2 Year Warranty

Applications:

• Welding and metal fabrication shops that need organized storage for a 50-foot twin welding hose assembly.
• Mobile welding and field service vehicles where compact reel dimensions help conserve mounting space.
• Manufacturing and plant maintenance departments performing routine welding, cutting, heating, and brazing work with compatible equipment.
• Automotive, fleet, and equipment repair facilities handling metal repair and fabrication tasks.
• Workstations where controlled manual hose payout and retrieval help keep welding hose off the floor and organized between jobs.

FAQs:

• Q: Does the Coxreels 112WT-1-50 include welding hose?
  A: Yes. The 112WT-1-50 is supplied with 50 feet of 1/4-inch I.D. twin Grade T welding hose.
• Q: What does the "T" designation indicate on the 112WT-1-50?
  A: The "T" configuration identifies the model supplied with twin Grade T welding hose. Buyers should always verify hose compatibility with the gases and equipment used in their specific welding or cutting system.
• Q: Is the 112WT-1-50 an automatic rewind reel?
  A: No. This model uses a direct hand crank for manual hose retrieval. An adjustable tension brake helps control drum rotation and reduce unwanted free-wheeling.
• Q: How much space does the 112WT-1-50 require for mounting?
  A: The reel measures approximately 15.25 inches wide by 13 inches high by 12 inches long. It has a 6-inch by 6-inch base and a 4-inch by 3-inch mounting pattern, so available clearance should be checked before installation.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
