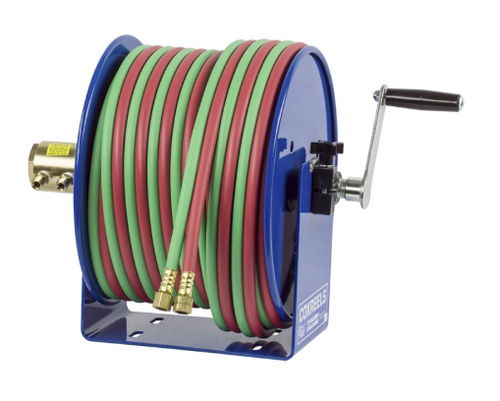

Coxreels 117WT-1-200 Welding Hand Crank Hose Reel | 100W Series | 1/4" Hose Diameter | 200' Hose Length | 200 Max PSI

Built for welding trucks, fabrication shops, maintenance bays, and field service work, the Coxreels 117WT-1-200 welding hand crank hose reel keeps twin-line welding hose organized, protected, and ready to pull out when the job moves. This 100WT Series model is supplied with 200 ft of 1/4" I.D. T Grade welding hose, giving users extra reach across large work areas while maintaining a 200 PSI maximum pressure rating for compatible welding gas service.

The compact steel U shaped frame provides a sturdy mounting base without taking up unnecessary space on a truck, wall, bench, or service area. A direct hand crank rewind gives the operator manual control over hose retrieval, while the adjustable tension brake helps prevent free-wheeling during operation, transport, or storage. T Grade welding hose is commonly selected where fuel gas compatibility beyond standard oxy-acetylene use is required, making this reel a practical choice for shops and service vehicles that need a ready-to-use long-reach welding hose setup.

Type: Welding Hand Crank Hose Reel | Series: 100WT Series | Model: 117WT-1-200 | Hose Type: T Grade Welding Hose | Hose I.D.: 1/4" | Hose Length: 200 ft | Max Pressure: 200 PSI | Fittings: 9/16"-18 UNF Welding Hose Fittings | Swivel: 90° Full-Flow Dual Ported Brass Swivel | Swivel Seals: Viton | Rewind Type: Direct Hand Crank | Approx. Weight: 68 lbs | Size Index: 3

Features:

• Supplied with T Grade welding hose and 9/16"-18 UNF welding hose fittings for compatible welding gas setups.
• External fluid path with 90° full-flow dual ported brass swivel allows both hose connections from the same side of the reel.
• Viton swivel seals support compatibility with welding gas service requirements.
• Compact solid one-piece, heavy gauge steel U shaped frame provides a stable reel structure for truck, shop, or facility mounting.
• Open drum design makes hose inspection and manual hose handling more accessible during everyday use.
• Composite bearing supports smooth rotation while rewinding or paying out hose.
• Adjustable tension brake helps prevent free-wheeling during operation, transport, or storage.
• Direct hand crank rewind gives the operator controlled manual hose retrieval without a spring motor or powered rewind system.

Made in USA:

2 Year Warranty

Applications:

• Welding service trucks and mobile repair rigs that need long hose reach with controlled hand crank storage.
• Fabrication shops and welding bays where twin-line hose must be kept off the floor between cutting, heating, and welding tasks.
• Automotive and fleet maintenance areas using welding gas setups for repair, heating, and metalwork support.
• Manufacturing plants and MRO departments that need organized hose management near work cells, repair stations, or maintenance benches.
• Construction, pipeline, mining, railroad, marine, and offshore settings where welding hose is frequently pulled out, moved, and rewound.

FAQs:

• Q: What is the difference between the 117WT-1-200 and an oxy-acetylene 100W Series reel?
  A: The WT model is supplied with T Grade welding hose, while standard 100W models are listed for oxy-acetylene welding hose. T Grade hose is commonly selected when the gas service requires broader fuel gas compatibility.
• Q: Does this reel include hose?
  A: Yes, the 117WT-1-200 is listed as a hose-equipped model with 200 ft of 1/4" I.D. T Grade welding hose. Less-hose models in this family use the L designation.
• Q: What does hand crank rewind mean?
  A: Hand crank rewind means the operator manually turns the crank to retrieve the hose. This provides simple, controlled rewind without relying on a spring motor, air motor, hydraulic motor, or electric drive.
• Q: Can this reel be mounted on a welding truck?
  A: Yes, welding and service trucks are a common application for this reel style. Confirm the mounting surface, hose routing, and available clearance before installation.
• Q: Is the reel rated for high-pressure hydraulic service?
  A: No. This is a welding hose reel with a 200 PSI maximum pressure rating. It should only be used within the pressure, gas compatibility, and fitting limits specified for the reel and hose.
