Built for high-pressure hose storage in washdown, spraying, grease, hydraulic, oil, and lubrication applications, the Coxreels HP1125-5-100 hand crank hose reel gives crews a controlled way to manage 3/4" I.D. hose runs up to 100 ft. Its HP1125 Series construction is rated for service up to 4500 PSI, making it a higher-pressure alternative to standard 1125 Series reels when the hose system must handle more demanding fluid-transfer conditions.
The reel uses Coxreels' one-piece welded steel 'A' frame base, low-profile outlet riser, and open drum slot to help the hose lay flat across the drum without unnecessary crimping. A solid steel direct hand crank with a smooth round handle gives the operator mechanical control during rewind, while the adjustable tension brake helps limit free-wheeling when paying out or retrieving hose.

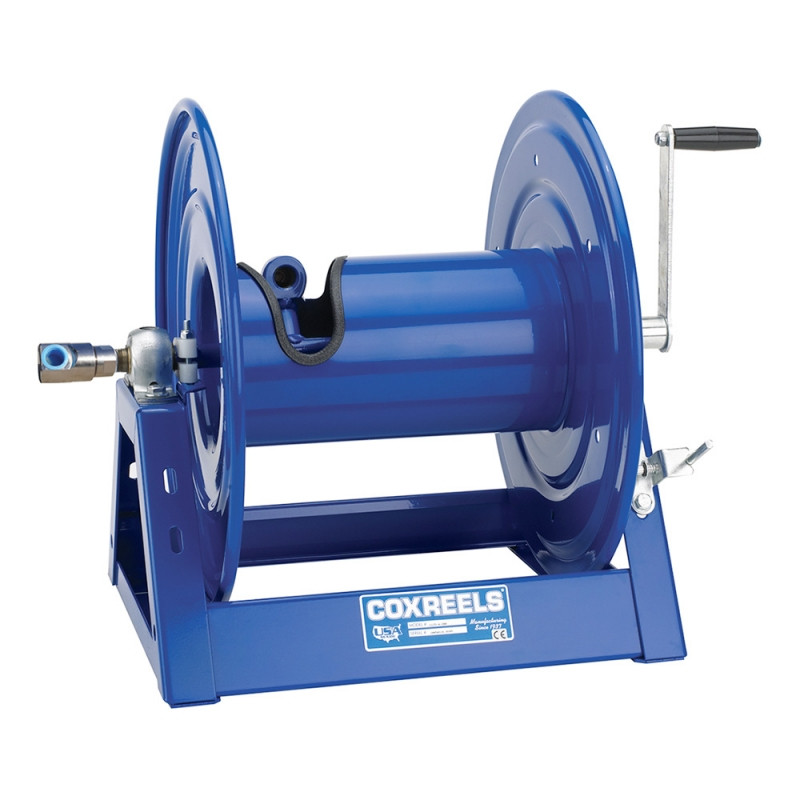

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: HP1125 Series | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1 1/4" | Hose Capacity: 100 ft | Hose Included: No | Max Pressure: 4500 PSI | Ship Weight: 42 lbs | Overall Dimensions: 26.75" W x 18.75" H x 17.63" L
Features:
- Hand crank rewind gives the operator direct control over hose retrieval without requiring spring, electric, air, or hydraulic rewind power.
- High-pressure HP1125 Series construction is built to handle applications up to 4500 PSI when paired with compatible hose and fittings.
- External 90° full-flow NPT swivel with electroless nickel plated steel inlet supports fluid flow through the reel connection.
- AFLAS swivel seals provide sealing performance for high-pressure service where the fluid path and system requirements are compatible.
- Exclusive low-profile outlet riser and open drum slot help produce a flat, smooth hose wrap during rewind.
- Permanently lubricated, self-aligning pillow block bearings support smooth rotation with reduced routine service requirements.
- Long-handled locking pin secures the reel from rotation during transport or storage.
- CPC powder coat finish helps resist chips and corrosion in shop, fleet, and equipment-mounted environments.
Made in USA:
Applications:
- Pressure washing and washdown setups where a high-pressure hose must be stored neatly between cleaning jobs.
- Grease and hydraulic service areas where a 4500 PSI reel rating is needed to match the pressure demands of the system.
- Oil and lubrication stations in maintenance shops, fleet facilities, and equipment service bays.
- Spraying operations where operators need a controlled hand crank reel for hose payout, storage, and retrieval.
- Mobile service trucks and trailer-mounted systems where manual rewind is preferred over powered retraction.
FAQs:
- Q: What does 'less hose' mean on the Coxreels HP1125-5-100?
A: It means the reel is supplied without hose installed. The buyer must select a compatible 3/4" I.D. hose separately and confirm that the hose, fittings, and fluid service match the reel's 4500 PSI maximum pressure rating. - Q: How is the HP1125 Series different from the standard 1125 Series?
A: The HP1125 Series is the high-pressure version of the 1125 Series platform. This model is rated up to 4500 PSI, while standard 1125 Series models are commonly used for lower-pressure service. - Q: Is this reel spring rewind?
A: No. The HP1125-5-100 is a hand crank reel, meaning the operator manually winds the hose back onto the drum using the crank handle. - Q: Can this reel be used for pressure washing?
A: Yes, pressure washing is one of the listed application areas for the HP1125 Series. Always confirm that the selected hose, fittings, temperature range, and cleaning fluid are compatible with the system before use. - Q: What mounting space is required?
A: This model measures 26.75" wide x 18.75" high x 17.63" long. The mounting pattern is 15.44" M x 10" N, with a base size of 17.38" X x 15.38" Y.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-100 | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100 | 4,500 | 42 | 7 |
| 1125-5-100-A | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-A | 4,500 | 42 | 7 |
| 1125-5-100-AB | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-AB | 4,500 | 42 | 7 |
| 1125-5-100-C | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-C | 4,500 | 42 | 7 |
| 1125-5-100-E | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-E | 4,500 | 42 | 7 |
| 1125-5-100-EA | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EA | 4,500 | 42 | 7 |
| 1125-5-100-EB | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EB | 4,500 | 42 | 7 |
| 1125-5-100-ED | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-ED | 4,500 | 42 | 7 |
| 1125-5-100-EF | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EF | 4,500 | 42 | 7 |
| 1125-5-100-H | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-H | 4,500 | 42 | 7 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
