Built for installations that need manual hose retrieval from the front of the reel, the Coxreels 1125-5-100-C Hand Crank Hose Reel stores up to 100 feet of 3/4-inch I.D. hose. The front-mounted bevel geared crank changes the direction of the drive so operators can rewind the hose from a more accessible position in service-body compartments, equipment skids, and fixed work areas. This 1125 Series reel carries a 3,000 PSI maximum working pressure for compatible air, water, oil, lubrication, and hydraulic fluid service when the separately installed hose and fittings meet the application requirements.
The larger 3/4" hose capacity supports applications requiring greater fluid flow than a comparable 1/2-inch reel. A low-profile outlet riser and open drum slot help the hose form a flat wrap without a sharp bend at the connection point. Permanently lubricated self-aligning pillow block bearings promote smooth drum rotation, while an adjustable tension brake helps control free-wheeling during payout. The one-piece welded steel A-frame provides a stable mounting structure without requiring an electrical, pneumatic, or hydraulic rewind power source.

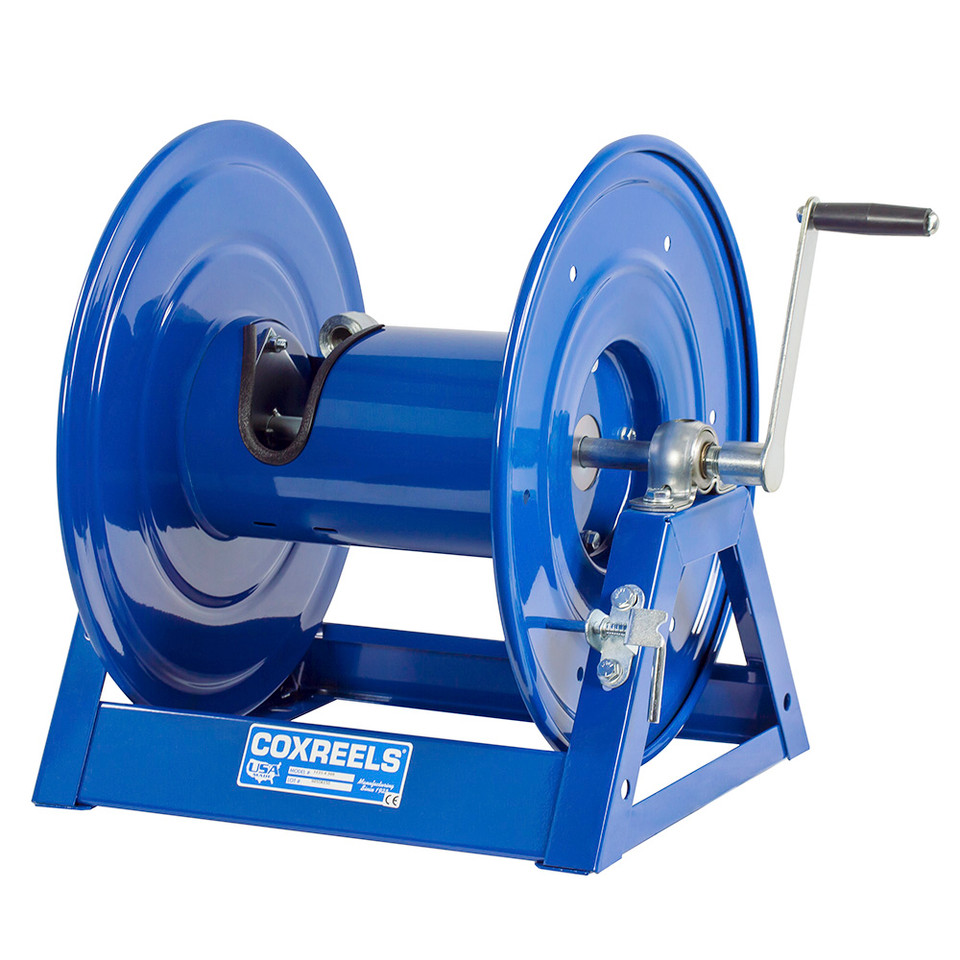

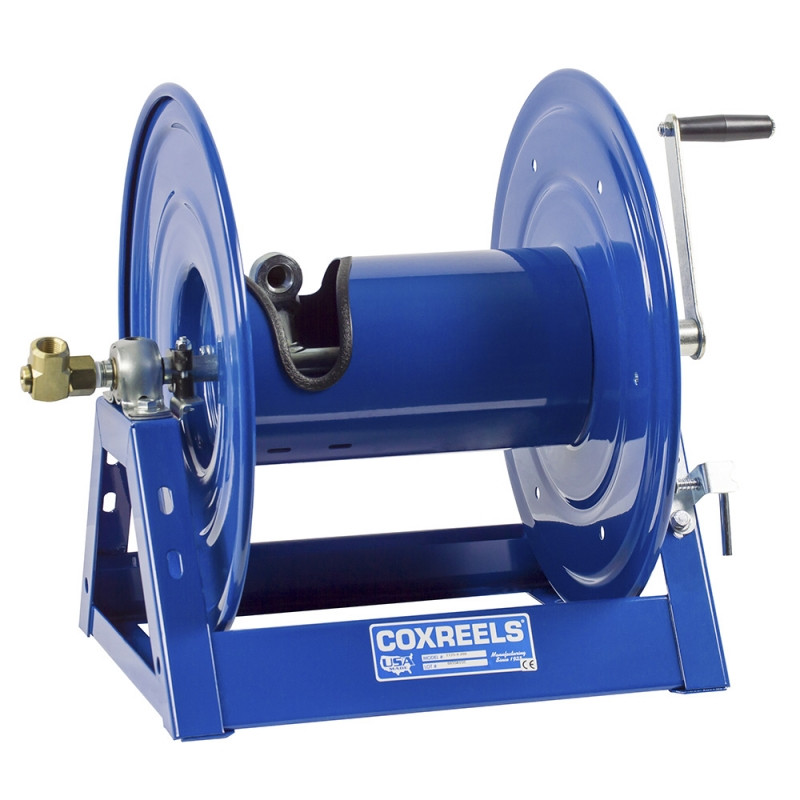

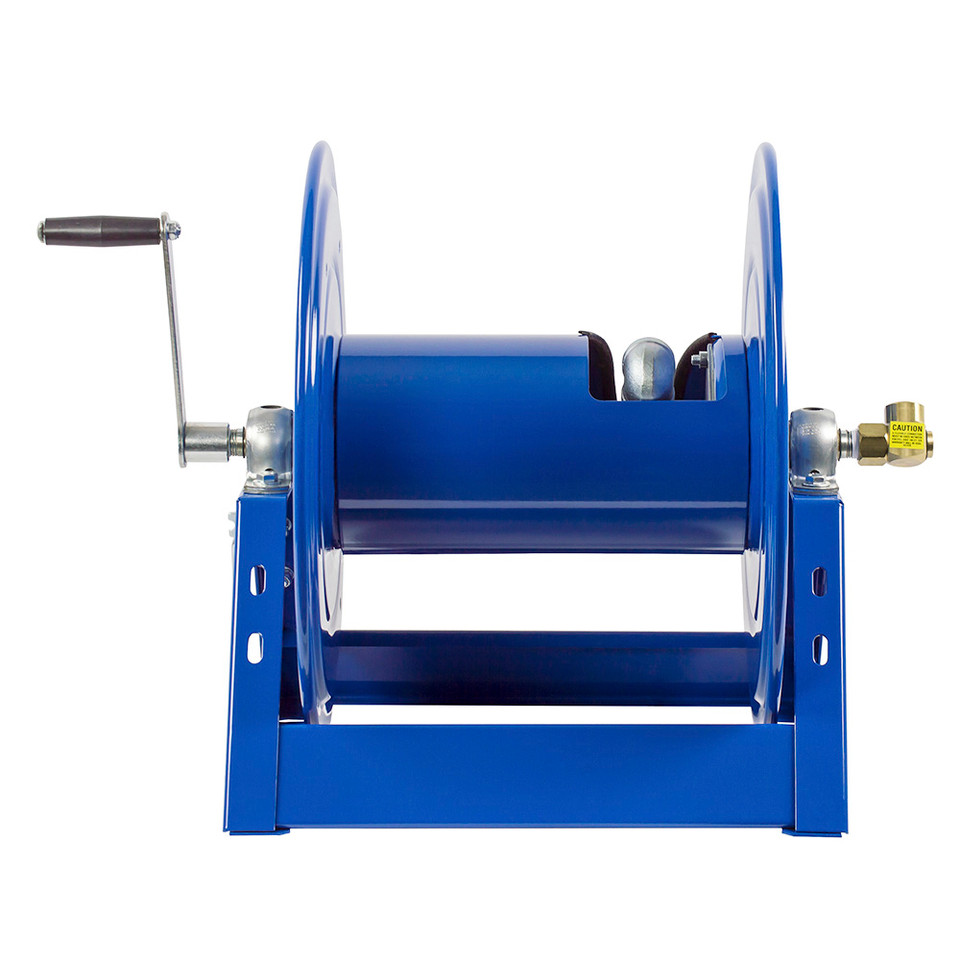

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Hose Reel | Series: 1125 Series | Configuration: Less Hose | Rewind Method: Front-Mounted Bevel Geared Hand Crank | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 100 ft | Max Pressure: 3,000 PSI | Swivel Inlet: 3/4" Female NPT | Outlet Riser: 3/4" Female NPT | Drum Width: 12" | Overall Dimensions: 26.75" W x 18.75" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base Dimensions: 17.38" X x 15.38" Y
Features:
- Front-mounted bevel geared hand crank provides controlled manual rewind from an accessible operating position.
- One-piece, all-welded steel A-frame construction creates a rigid mounting platform for mobile and stationary installations.
- Machined solid brass 90° full-flow NPT swivel with nitrile seals supports efficient fluid transfer and serviceable seal replacement.
- Low-profile outlet riser and open drum slot promote a flat, non-crimping hose wrap during payout and retrieval.
- Permanently lubricated self-aligning pillow block bearings and an adjustable tension brake support smooth, controlled drum movement.
- Long-handled locking pin secures the drum during transport or storage, while the CPC powder-coated finish helps protect the steel structure.
Made in USA:
Applications:
- Service trucks and utility-body compartments where front-mounted crank access simplifies hose retrieval.
- Industrial maintenance areas managing large-diameter air, water, oil, or compatible fluid hose.
- Agricultural spraying, irrigation, and equipment service requiring up to 100 feet of hose reach.
- Construction and fleet maintenance equipment operating without a dedicated rewind power source.
- Washdown, lubrication, and hydraulic service stations requiring controlled manual hose payout and retrieval.
FAQs:
- Q: Does the Coxreels 1125-5-100-C include hose?
A: No. This model is supplied as a reel only. Install a compatible 3/4-inch I.D. hose with an outside diameter no greater than 1-1/4 inches and suitable pressure, temperature, bend-radius, and media ratings. - Q: What does the 'C' suffix indicate?
A: The C suffix identifies the front-mounted bevel geared hand-crank configuration. The bevel gears redirect the crank drive so the reel can be operated from the front rather than from the side. - Q: How does this model differ from the standard 1125-5-100?
A: Both models hold up to 100 feet of 3/4-inch hose. The 1125-5-100-C adds the front-mounted bevel geared crank for installations where front access is more convenient. - Q: Can this reel operate at the full 3,000 PSI rating?
A: Yes, provided the installed hose, fittings, connectors, and every other fluid-path component are rated for the intended working pressure. The completed assembly is limited by its lowest-rated component.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-100 | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100 | 4,500 | 42 | 7 |
| 1125-5-100-A | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-A | 4,500 | 42 | 7 |
| 1125-5-100-AB | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-AB | 4,500 | 42 | 7 |
| 1125-5-100-C | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-C | 4,500 | 42 | 7 |
| 1125-5-100-E | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-E | 4,500 | 42 | 7 |
| 1125-5-100-EA | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EA | 4,500 | 42 | 7 |
| 1125-5-100-EB | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EB | 4,500 | 42 | 7 |
| 1125-5-100-ED | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-ED | 4,500 | 42 | 7 |
| 1125-5-100-EF | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EF | 4,500 | 42 | 7 |
| 1125-5-100-H | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-H | 4,500 | 42 | 7 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Hand Crank Hose Reel
- Series
- 1125 Series
- Hose Inside Diameter (in.)
- 3/4
- Hose Outside Diameter (in.)
- 1-1/4
- Hose Length (ft.)
- 100
- Hose Included
- No
- Maximum Working Pressure (PSI)
- 3000
- Drum Width (in.)
- 12
- Width (in.)
- 26.75
- Height (in.)
- 18.75
- Length (in.)
- 17.63
- Mounting Pattern (in.)
- 15.44M
- Mounting Pattern (in.)
- 10N
- Base (in.)
- 17.38X
- Base (in.)
- 15.38Y
