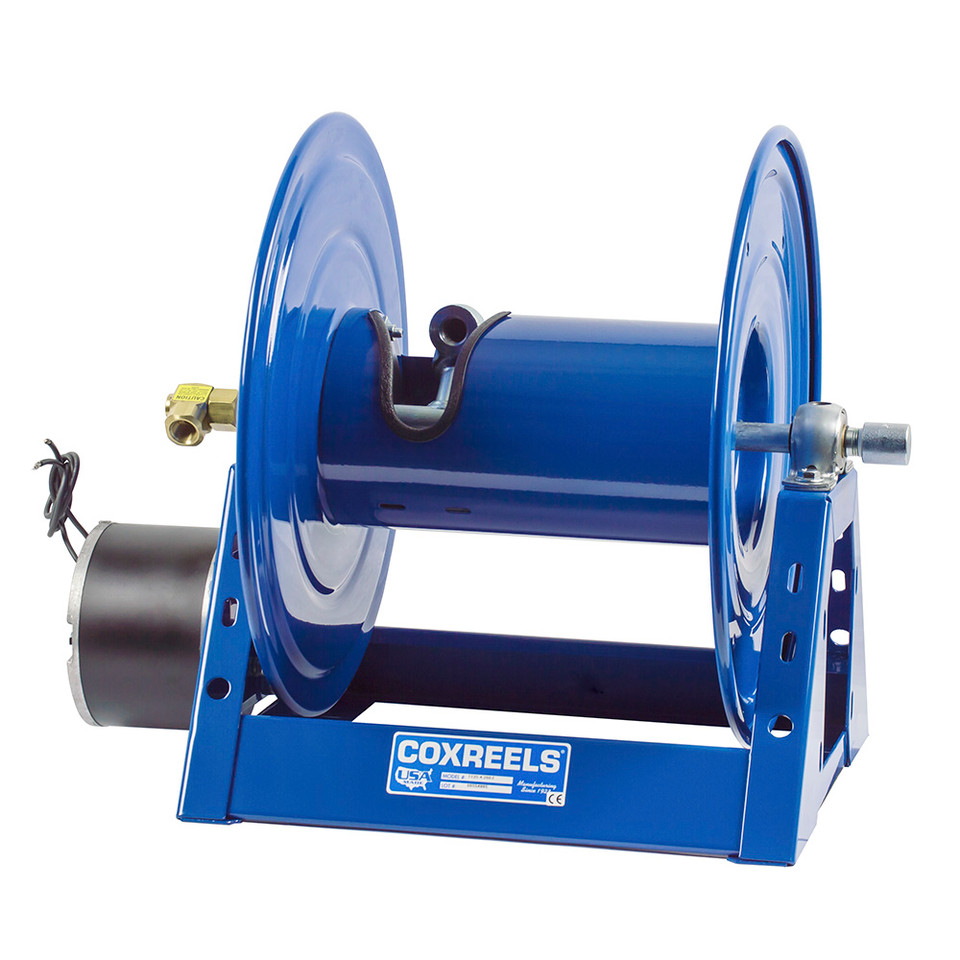

Designed for mobile service equipment and industrial applications requiring higher-powered DC hose retrieval, the Coxreels 1125-5-100-ED Electric Motor Rewind Hose Reel stores up to 100 feet of 3/4-inch I.D. hose. Equipped with a 12V DC, 1/2 HP motor, this 1125 Series reel provides efficient powered rewind for larger-diameter hose used in fleet maintenance, utility vehicles, lubrication systems, and hydraulic service equipment. Its 3,000 PSI maximum working pressure supports compatible air, water, oil, lubrication, and hydraulic fluid applications when paired with properly rated hose and fittings.
The direct gear drive transfers power from the electric motor to the reel drum without a chain, providing smooth, controlled hose retrieval. A low-profile outlet riser and open drum slot help maintain a flat hose wrap while minimizing hose stress near the connection point. Permanently lubricated self-aligning pillow block bearings promote smooth drum rotation, while an adjustable tension brake helps control hose payout. The all-welded steel A-frame provides dependable support for vehicle-mounted and stationary installations.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric DC Motor Rewind Hose Reel | Series: 1125 Series | Configuration: Less Hose | Motor: 12V DC, 1/2 HP | Drive: Direct Gear Drive | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 100 ft | Max Pressure: 3,000 PSI | Swivel Inlet: 3/4" Female NPT | Outlet Riser: 3/4" Female NPT | Overall Dimensions: 26" W x 19.25" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base Dimensions: 17.38" X x 16" Y
Features:
- 12V DC, 1/2 HP electric motor delivers dependable powered hose retrieval from a compatible vehicle or equipment electrical system.
- Direct gear drive provides smooth, quiet rewind without the maintenance associated with chain-drive systems.
- One-piece, all-welded steel A-frame construction offers a rigid mounting platform for mobile and stationary applications.
- Machined solid brass 90° full-flow NPT swivel with nitrile seals supports efficient fluid transfer and easy seal servicing.
- Low-profile outlet riser, open drum slot, self-aligning bearings, and adjustable tension brake promote smooth hose handling and controlled drum operation.
- Durable CPC powder-coated finish helps protect the reel against corrosion, chipping, and everyday industrial wear.
Made in USA:
Applications:
- Fleet and utility service vehicles using onboard 12V DC power for hose management.
- Mobile lubrication, hydraulic, oil, air, and water transfer systems.
- Construction, mining, and agricultural equipment requiring powered hose retrieval.
- Industrial maintenance facilities handling large-diameter fluid transfer hoses.
- Equipment trailers and machinery skids where 100 feet of 3/4-inch hose provides the required reach and flow.
FAQs:
- Q: Does the Coxreels 1125-5-100-ED include hose?
A: No. This reel is supplied less hose. Install a compatible 3/4-inch I.D. hose with a maximum 1-1/4-inch O.D. and appropriate pressure and media ratings. - Q: What does the "ED" suffix indicate?
A: It designates the 12V DC, 1/2 HP electric motor rewind configuration with direct gear drive. - Q: How does this model differ from the 1125-5-100-E?
A: The ED model features a larger 1/2 HP motor, providing increased rewind power compared to the 1/3 HP motor used on the E model. - Q: Can this reel operate at its full 3,000 PSI rating?
A: Yes, provided the hose, fittings, and all other fluid-path components are rated for the intended operating pressure. The system is limited by its lowest-rated component.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-100 | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100 | 4,500 | 42 | 7 |
| 1125-5-100-A | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-A | 4,500 | 42 | 7 |
| 1125-5-100-AB | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-AB | 4,500 | 42 | 7 |
| 1125-5-100-C | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-C | 4,500 | 42 | 7 |
| 1125-5-100-E | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-E | 4,500 | 42 | 7 |
| 1125-5-100-EA | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EA | 4,500 | 42 | 7 |
| 1125-5-100-EB | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EB | 4,500 | 42 | 7 |
| 1125-5-100-ED | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-ED | 4,500 | 42 | 7 |
| 1125-5-100-EF | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EF | 4,500 | 42 | 7 |
| 1125-5-100-H | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-H | 4,500 | 42 | 7 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
