When compressed air is already available at the worksite, the Coxreels 1125-5-100-AB provides powered hose rewind without tying the installation to an electric motor. This 1125 Series reel is configured with a #6 Gast compressed-air motor rewind, providing service trucks, maintenance bays, pressure-wash stations, and fluid-handling systems with a practical way to retract the hose after use. With capacity for 100 ft of 3/4" I.D. hose and a 3000 PSI pressure rating, it supports medium-pressure air, water, oil, lubrication, and washdown applications when paired with hose and fittings suited to the service.
The 1125 Series uses a one-piece welded steel 'A' frame, low-profile outlet riser, and open drum slot to help the hose wrap flat across the drum rather than bunching or crimping. It's less hose configuration lets buyers choose the exact hose material, pressure rating, temperature range, and end connections needed for the application. The 23.38" width, 18.75" height, and 17.63" length help confirm mounting space before installation on a bench, skid, trailer, service body, or fixed equipment frame.

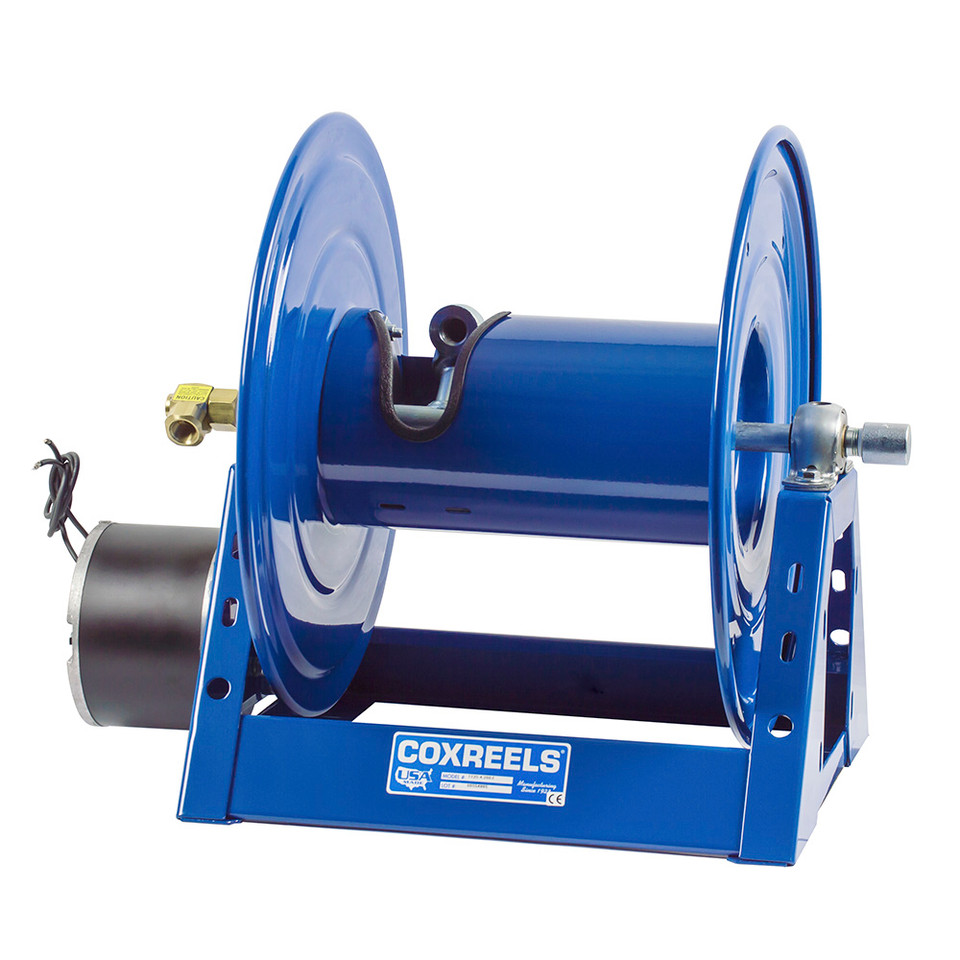

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Compressed Air Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-5-100-AB | Configuration: Less Hose | Motor: #6 Gast Compressed Air Motor | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 100 ft | Max Pressure: 3000 PSI | Hose Included: No | Ship Weight: 50 lbs | Overall Dimensions: 23.38" W x 18.75" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base: 17.38" X x 16" Y
Features:
- #6 Gast compressed air motor rewind is suited to installations where plant air or onboard compressed air is preferred over electric power.
- Direct gear drive motor system provides powered rewind with quiet, smooth retraction and no chain drive to adjust.
- One-piece all-welded steel 'A' frame construction gives the reel a rigid base for shop, skid, trailer, and service truck mounting.
- Low-profile outlet riser and open drum slot design help promote a flat, non-crimping hose wrap during rewind.
- Machined solid brass 90° full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount.
- Nitrile swivel seals are used on this non-1" model for standard air, water, oil, and lubrication service compatibility where system requirements match.
- Permanently lubricated, self-aligning pillow block bearings help the drum rotate smoothly during repeated payout and rewind cycles.
- Adjustable tension brake helps reduce free-wheeling during operation, while the long-handled locking pin secures the reel during transport or storage.
Made in USA:
Applications:
- Fleet and service truck systems where onboard compressed air is available for powered hose rewind.
- Industrial maintenance bays storing 3/4" hose for air, water, oil, lubrication, or washdown service within the reel's pressure rating.
- Pressure washing and equipment cleaning stations where controlled hose payout and rewind help keep work areas organized.
- Lubrication skids, transfer systems, and mobile maintenance carts requiring a reel-only platform matched to a specific hose type.
- Utility, municipal, and construction support vehicles that need hose secured during transport between jobsites.
FAQs:
- Q: What does 'less hose' mean for the Coxreels 1125-5-100-AB?
A: It means this reel is supplied without hose installed. Select a compatible 3/4" I.D. hose separately based on the fluid, working pressure, temperature, bend radius, and end fittings required for your system. - Q: How is the AB rewind option different from an electric motor rewind?
A: The AB configuration uses a #6 Gast compressed air motor instead of an electric motor. It is a good fit where compressed air is already available or where buyers prefer pneumatic rewind over electrical wiring. - Q: Can this reel be used for pressure washing?
A: Yes, when the hose, fittings, fluid temperature, and system pressure are compatible with the reel's 3000 PSI rating. The reel does not include hose, so the pressure washer hose must be selected separately. - Q: Does this reel include the hose shown in the image?
A: No. The image may show a reel with hose for illustration, but SKU 1125-5-100-AB is a less-hose reel and ships without hose installed. - Q: What should be checked before mounting this reel?
A: Confirm the available mounting space, base pattern, hose size, hose weight, air motor supply requirements, and the direction of hose payout. The listed overall dimensions and mounting pattern help verify fit before installation.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-100 | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100 | 4,500 | 42 | 7 |
| 1125-5-100-A | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-A | 4,500 | 42 | 7 |
| 1125-5-100-AB | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-AB | 4,500 | 42 | 7 |
| 1125-5-100-C | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-C | 4,500 | 42 | 7 |
| 1125-5-100-E | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-E | 4,500 | 42 | 7 |
| 1125-5-100-EA | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EA | 4,500 | 42 | 7 |
| 1125-5-100-EB | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EB | 4,500 | 42 | 7 |
| 1125-5-100-ED | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-ED | 4,500 | 42 | 7 |
| 1125-5-100-EF | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EF | 4,500 | 42 | 7 |
| 1125-5-100-H | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-H | 4,500 | 42 | 7 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
