For installations that need powered rewind from a lighter electric motor package, the Coxreels 1125-5-100-EF provides a reel-only platform for managing long 3/4" hose runs in service, washdown, lubrication, and industrial maintenance systems. This 1125 Series model uses an electric 24V DC 1/3 HP motor rewind, making it a practical fit for vehicle-mounted and low-voltage DC-powered setups where manual hose rewind is not preferred. With capacity for 100 ft of 3/4" I.D. hose and a 3000 PSI maximum pressure rating, it gives buyers the core reel capacity needed for medium-pressure hose handling while leaving hose selection open to the application.
The 1125 Series layout uses Coxreels' welded steel 'A' frame, low-profile outlet riser, and open drum slot to help the hose lay smoothly on the drum during rewind. The direct gear drive motor system eliminates a chain drive, while the less hose configuration allows maintenance teams, fleet builders, and equipment integrators to choose hose material, fittings, temperature rating, and fluid compatibility separately. Its 26" width, 19.25" height, and 17.63" length support straightforward fit checks before mounting the reel to a truck body, skid, bench, trailer, or equipment frame.

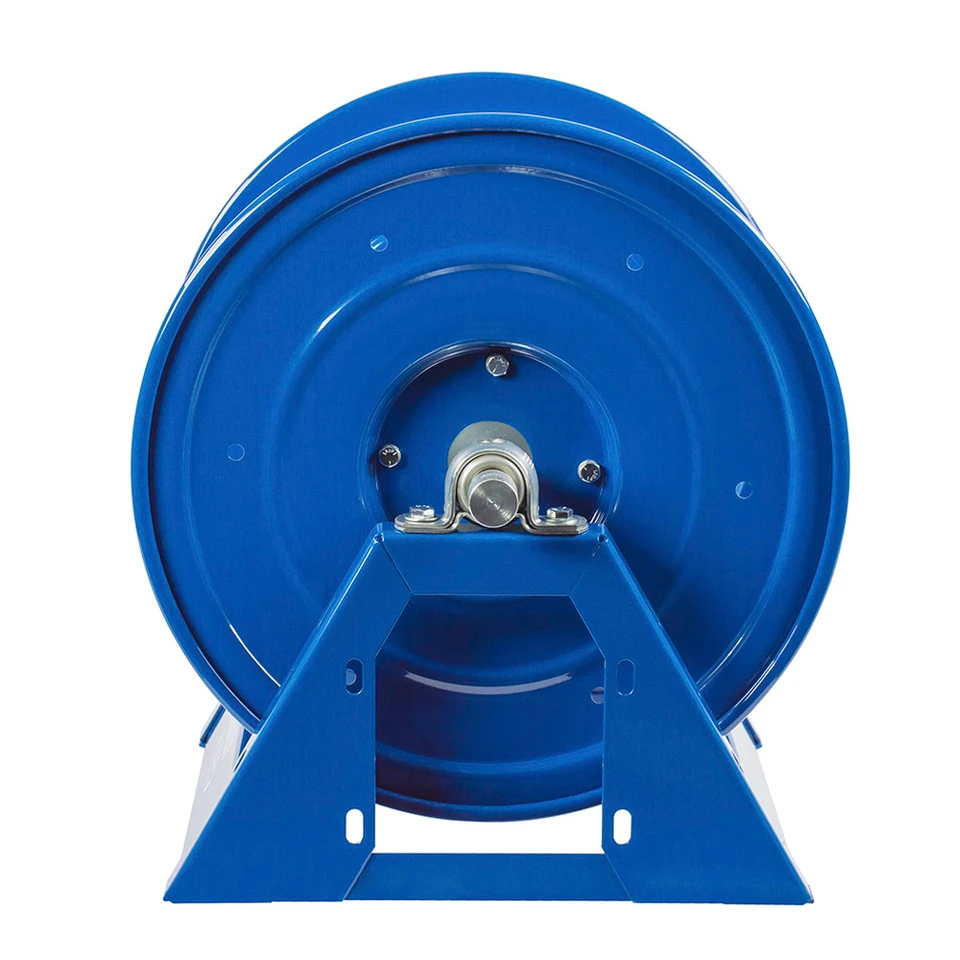

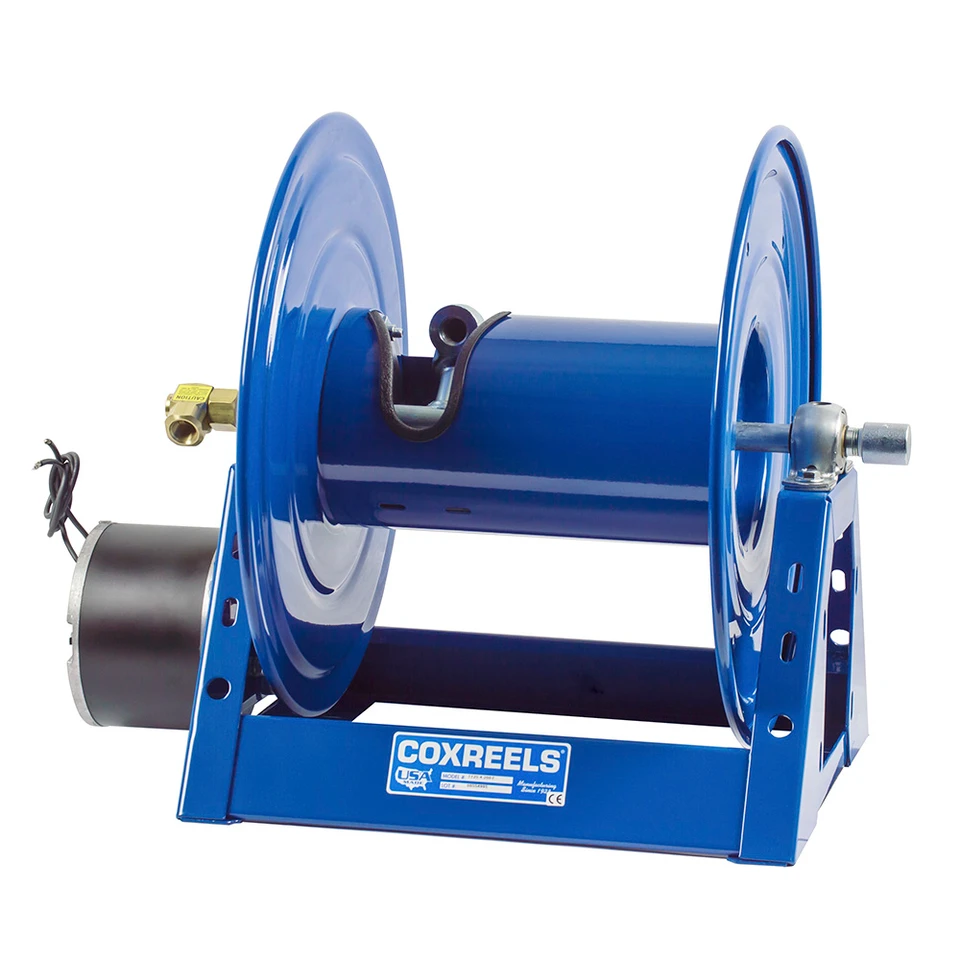

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Model: 1125-5-100-EF | Configuration: Less Hose | Motor: 24V DC 1/3 HP | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 100 ft | Max Pressure: 3000 PSI | Hose Included: No | Ship Weight: 55 lbs | Overall Dimensions: 26" W x 19.25" H x 17.63" L | Mounting Pattern: 15.44" M x 10" N | Base: 17.38" X x 16" Y
Features:
- Electric 24V DC 1/3 HP motor rewind supports powered hose retrieval on mobile equipment, service vehicles, and low-voltage DC installations.
- Reliable direct gear drive on motor driven models provides quiet, smooth retraction with no chain drive to adjust or maintain.
- All welded steel 'A' frame construction gives the reel a strong, one-piece mounting structure for shop, truck, skid, and trailer applications.
- Exclusive low-profile outlet riser and open drum slot design help create a flat, smooth hose wrap and reduce crimping during rewind.
- Machined solid brass 90° full-flow NPT swivel supports efficient flow and allows seal maintenance without removing the reel from its mount.
- Nitrile swivel seals are used on this 3/4" model for standard air, water, oil, and lubrication service where all system components are compatible.
- Permanently lubricated, self-aligning pillow block bearings help the drum rotate smoothly through repeated payout and rewind cycles.
- Adjustable tension brake helps prevent free-wheeling during operation, and the long-handled locking pin secures the reel during transport or storage.
Made in USA:
Applications:
- Service truck and fleet maintenance builds that need 24V DC powered hose rewind for 3/4" hose storage.
- Pressure washing and washdown stations operating within the reel's 3000 PSI maximum pressure rating.
- Industrial MRO areas where long hose runs need organized payout, controlled rewind, and protected storage.
- Lubrication, oil transfer, and maintenance fluid systems requiring a reel-only platform for a separately selected hose.
- Utility, construction, and municipal equipment setups where hose must be secured during transport between work locations.
FAQs:
- Q: What does 'less hose' mean on the Coxreels 1125-5-100-EF?
A: It means the reel is supplied without hose installed. Select a compatible 3/4" I.D. hose separately based on the fluid, pressure, temperature, bend radius, and end fittings required for your system. - Q: What is the rewind method on this model?
A: The 1125-5-100-EF uses an electric 24V DC 1/3 HP motor rewind. It is intended for powered retraction, not hand crank rewind. - Q: How does the EF model differ from higher horsepower electric rewind models?
A: The EF configuration uses a 24V DC 1/3 HP motor, while some related 1125 Series electric rewind models use different voltage or horsepower options. Match the motor option to the available power supply, hose weight, and installation requirements. - Q: Can this reel be used for oil, lubrication, water, or pressure wash service?
A: Yes, when the hose, fittings, fluid temperature, and working pressure are compatible with the reel and application. The reel is rated to 3000 PSI, but every component in the system must be selected for the actual service conditions. - Q: What should be confirmed before ordering this reel?
A: Verify the mounting space, 24V DC power availability, hose diameter, hose length, pressure rating, swivel connection requirements, and whether your application needs special hose material or seals. This SKU does not include hose.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-100 | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100 | 4,500 | 42 | 7 |
| 1125-5-100-A | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-A | 4,500 | 42 | 7 |
| 1125-5-100-AB | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-AB | 4,500 | 42 | 7 |
| 1125-5-100-C | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-C | 4,500 | 42 | 7 |
| 1125-5-100-E | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-E | 4,500 | 42 | 7 |
| 1125-5-100-EA | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EA | 4,500 | 42 | 7 |
| 1125-5-100-EB | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EB | 4,500 | 42 | 7 |
| 1125-5-100-ED | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-ED | 4,500 | 42 | 7 |
| 1125-5-100-EF | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-EF | 4,500 | 42 | 7 |
| 1125-5-100-H | 3/4" | 1 1/4" | 100 | 1/2" | 7/8" | 200 | 3/4" F NPT | 3,000 | HP1125-5-100-H | 4,500 | 42 | 7 |
