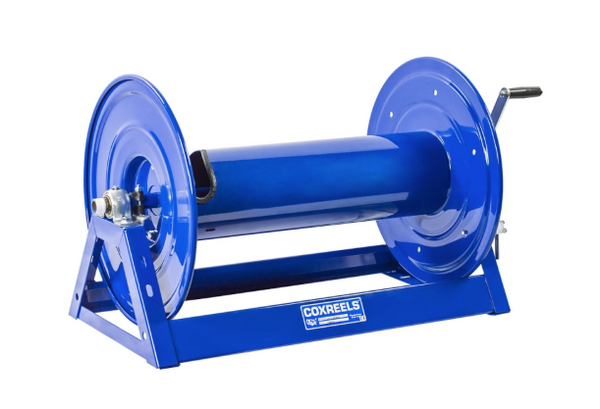

Coxreels 1185-3328-BYXX Hand Crank Storage Hose Reel | 1185 Series | Less Hose/Cord/Cable

Built for organizing long runs of hose, cord, cable, wire, rope, tape, chain, and similar materials, the Coxreels 1185-3328-BYXX Hand Crank Storage Hose Reel gives crews a large open-drum platform for controlled payout, rewind, and storage. This 1185 Series model is supplied in a less hose/cord/cable configuration, so the buyer can install the compatible material required for the job. Its 46.5" overall width, 30" overall height, and 28" overall length provide the larger drum envelope needed for high-capacity storage, while the hand crank rewind keeps operation simple in locations where powered rewind is not required.

As a BYXX storage reel, this model is built for storage only and does not include a swivel or outlet riser. That makes it a practical choice when the reel is being used to store and maintain long lengths of material rather than transfer pressurized media through the reel. The welded steel A frame base supports fixed or mobile installations, and the locking pin helps keep the reel from rotating during transport or storage.

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Storage Hose Reel | Series: 1185 Series | Configuration: Less Hose/Cord/Cable | Model: 1185-3328-BYXX | Drive Type: Hand Crank | Hose/Cord/Cable Included: No | Max Pressure: 0 PSI | Overall Dimensions: 46.5" W x 30" H x 28" L | Mounting Pattern: 36.25" M x 18.5" N | Base: 35.5" X x 24.5" Y | Reel Material: Steel | Ship Weight: 169 lbs

Features:

• Storage-only BYXX configuration has no swivel and no riser for maintaining long lengths of hose, cord, cable, wire, rope, tape, chain, and other materials.
• Solid steel direct hand crank with smooth round handle gives the user manual rewind control without requiring an electric, air, or hydraulic drive.
• All welded steel A frame base provides a rigid mounting structure for large-capacity storage applications.
• CNC spun and ribbed discs with rolled edges help add reel strength while supporting safer material handling during rewind.
• Lubricated horizontal surface mount bearings support smooth drum rotation during payout and retrieval.
• Long-handled locking pin helps secure the reel from rotation during transport, storage, or equipment movement.
• Durable CPC powder coat finish helps resist chipping and corrosion in shop, yard, and mobile environments.
• Adjustable tension brake helps reduce freewheeling when material is pulled from the reel.

Made in USA:

2 Year Warranty

Applications:

• Storage-only hose management where pressurized fluid transfer through the reel is not required.
• Facility maintenance and MRO areas that need organized storage for long hose, cable, rope, or chain runs.
• Fleet service trucks, utility vehicles, and mobile equipment where a locking hand crank reel helps secure material between jobs.
• Construction, yard, and agricultural operations where long material lengths must be paid out and rewound manually.
• Shop and warehouse storage stations where buyers want a large-capacity reel frame and will supply compatible material separately.

FAQs:

• Q: What does BYXX mean on this Coxreels model?
  A: BYXX identifies a storage reel configuration. This version has no swivel and no outlet riser, so it is intended for storing and maintaining material rather than transferring pressurized media through the reel.
• Q: Does the 1185-3328-BYXX include hose, cord, or cable?
  A: No. This model is supplied less hose, cord, and cable. The buyer must provide the compatible material separately.
• Q: Why is the pressure rating listed as 0 PSI?
  A: Because this BYXX configuration is a storage-only reel with no fluid path through a swivel or riser. It should not be treated as a pressure-transfer hose reel.
• Q: Is this a powered rewind reel?
  A: No. The 1185-3328-BYXX uses a hand crank rewind, allowing the operator to manually retrieve material onto the drum.
• Q: Can this reel be mounted on a vehicle or cart?
  A: Coxreels lists the 1185 Series for demanding mobile applications, and this reel includes a locking pin to secure rotation during transport or storage. Confirm the mounting surface, fasteners, and installed load before vehicle mounting.
