Coxreels 1125-5-200-BYXX Hand Crank Storage Hose Reel | 1125 Series | Less Hose/Cord/Cable

Built for organizing long runs of hose, cord, cable, wire, rope, tape, chain, and similar material, the Coxreels 1125-5-200-BYXX is a 1125 Series hand crank storage reel supplied less hose, cord, or cable. This BYXX storage configuration has no swivel and no riser, which means it is intended for storage and payout/retraction only rather than active fluid transfer through the reel. Its solid steel direct hand crank gives the operator manual control during rewind, while the 38.75" W x 38" H x 17.63" L frame size provides a large storage format for shops, service trucks, wash bays, and maintenance areas that need neat, controlled line management.

The 1125 Series construction uses Coxreels' welded steel A frame platform, CNC spun discs, adjustable tension brake, and pillow block bearings to help keep stored material aligned and manageable during use. For buyers replacing a tangled loose coil or building a custom storage setup, the 1125-5-200-BYXX provides a reel-only foundation that can be matched to compatible hose, cord, cable, or other material selected separately for the job.

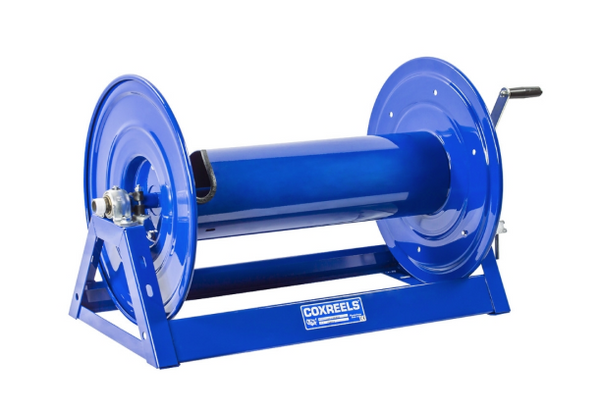

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Storage Reel | Series: 1125 Series | Model: 1125-5-200-BYXX | Configuration: Less Hose/Cord/Cable | Swivel/Riser: None | Max PSI: 0 | Ship Weight: 55 lbs | Overall Dimensions: 38.75" W x 38" H x 17.63" L | Mounting Pattern: 27.44" M x 10" N | Base: 29.38" X x 15.38" Y

Features:

• Storage reel configuration has no swivel and no riser, making it suitable for storing and maintaining long lengths of hose, cord, cable, wire, rope, tape, chain, and similar material.
• Solid steel direct hand crank with smooth round handle gives the user controlled mechanical rewind without requiring spring or motor power.
• CNC spun and ribbed discs with rolled edges help strengthen the reel sides while reducing sharp-edge exposure around stored material.
• One-piece welded steel A frame base supports the reel structure without a bolted frame joint and includes the mounting pattern in the steel base for installation planning.
• Adjustable tension brake helps control payout speed and reduces freewheeling during operation, transport, or storage.
• Permanently lubricated, self-aligning pillow block bearings support smooth rotation during repeated payout and rewind cycles.
• Chip-resistant and rust-inhibiting CPC powder coat finish helps protect the reel body in shop, service, and maintenance environments.

Made in USA:

2 Year Warranty

Applications:

• Industrial maintenance and MRO: Storing long runs of hose, cable, or line material in plant maintenance areas, tool rooms, and repair bays.
• Fleet and service truck setups: Managing loose line storage on mobile equipment where hand-crank rewind control is preferred over automatic retraction.
• Washdown and pressure-washing support: Organizing compatible hose separately selected for the application while keeping the reel outside the fluid path.
• Utility and workshop storage: Keeping cord, rope, wire, tape, or chain wound neatly instead of coiled on the floor or hung loosely on hooks.
• Custom reel builds: Providing a reel-only storage frame for buyers who need to match the stored material to their own diameter, length, and handling requirements.

FAQs:

• Q: What does BYXX mean on this Coxreels model?
  A: On this storage reel configuration, BYXX indicates a reel supplied without hose, cord, or cable and without a swivel or riser. It is for storage and rewind only, not for transferring fluid through the reel.
• Q: Does the Coxreels 1125-5-200-BYXX include hose?
  A: No. This product is sold less hose, cord, and cable. The buyer must provide compatible material separately based on the intended storage use.
• Q: Why is the max PSI listed as 0?
  A: This BYXX storage reel has no swivel and no riser, so it is not rated as a live fluid-transfer reel. The PSI rating is shown as 0 because pressure does not pass through the reel assembly.
• Q: Can this reel be used for air, water, oil, or pressure-washing hose?
  A: It can be used to store compatible hose material, but it does not provide a fluid path through the reel. If you need hose connected through the reel for active dispensing, choose a 1125 Series model with the proper swivel, riser, pressure rating, and hose compatibility.
• Q: What should I check before mounting this reel?
  A: Confirm the available mounting space, base footprint, mounting pattern, stored material diameter, and loaded reel weight. This model uses a 29.38" x 15.38" base and a 27.44" x 10" mounting pattern.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
