Coxreels 1125-5-250-BYXX Hand Crank Storage Hose Reel | 1125 Series | Less Hose/Cord/Cable

Built for controlled storage and manual rewind of long material runs, the Coxreels 1125-5-250-BYXX is a 1125 Series hand crank storage reel supplied less hose, cord, or cable. This BYXX configuration has no swivel and no riser, so it is used for storing, paying out, and rewinding material rather than transferring air, water, oil, or other media through the reel. The solid steel direct hand crank gives the operator positive rewind control, while the 42.75" W x 18.75" H x 17.63" L frame size supports larger storage layouts in maintenance shops, fleet service areas, utility rooms, and mobile work setups.

The 1125 Series platform uses Coxreels' welded steel A frame construction, CNC spun discs, adjustable tension brake, and permanently lubricated self-aligning pillow block bearings to help keep stored material organized and manageable during repeated payout and rewind cycles. For buyers building a reel-only storage station, the 1125-5-250-BYXX provides a sturdy manual-rewind base that can be matched to compatible hose, cord, cable, wire, rope, tape, chain, or similar material selected separately.

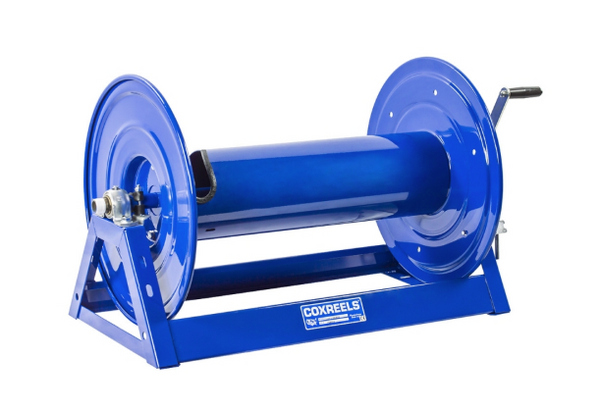

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Storage Reel | Series: 1125 Series | Model: 1125-5-250-BYXX | Configuration: Less Hose/Cord/Cable | Swivel/Riser: None | Max PSI: 0 | Ship Weight: 59 lbs | Overall Dimensions: 42.75" W x 18.75" H x 17.63" L | Mounting Pattern: 31.44" M x 10" N | Base: 33.38" X x 15.38" Y

Features:

• Storage reel configuration has no swivel and no riser, making it suitable for maintaining long lengths of hose, cord, cable, wire, rope, tape, chain, and similar material.
• Solid steel direct hand crank with smooth round handle allows controlled manual rewind without spring tension or motor power.
• CNC spun and ribbed discs with rolled edges help strengthen the reel sides while reducing sharp-edge contact around stored material.
• One-piece welded steel A frame base provides a stable mounting structure for fixed shop, bench, floor, or vehicle-mounted storage setups.
• Adjustable tension brake helps reduce freewheeling and gives the user better control during payout, transport, or storage.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation through repeated rewind cycles.
• Chip-resistant and rust-inhibiting CPC powder coat finish helps protect the reel body in shop, fleet, maintenance, and utility environments.

Made in USA:

2 Year Warranty

Applications:

• Plant maintenance and MRO: Storing long runs of hose, cord, cable, or line material in repair areas, tool cribs, and general maintenance departments.
• Fleet and service truck work: Keeping loose material wound neatly on mobile service vehicles where manual rewind control is preferred.
• Utility and facility shops: Managing rope, wire, tape, chain, or cable storage without leaving coils on floors, hooks, or work benches.
• Wash bay and shop support: Organizing separately selected hose material when a reel-only storage solution is needed instead of a live fluid-transfer reel.
• Custom storage builds: Providing a welded steel reel platform for users matching their own material diameter, length, and handling requirements.

FAQs:

• Q: What does less hose, cord, or cable mean?
  A: It means the reel is supplied without hose, cord, cable, or other stored material installed. The buyer must provide compatible material separately.
• Q: What does BYXX indicate on this Coxreels storage reel?
  A: BYXX identifies this as a storage reel configuration with no swivel and no riser. It is used for storing and rewinding material, not for carrying pressure or fluid through the reel.
• Q: Why is the pressure rating listed as 0 PSI?
  A: This model does not have a swivel or riser, so it does not provide a live flow path through the reel. Because pressure does not pass through the reel assembly, the max pressure is listed as 0 PSI.
• Q: Can this reel be used with air or water hose?
  A: It can be used to store compatible hose, but it will not dispense air or water through the reel. For active air, water, oil, or pressure-washer service, choose a 1125 Series model with the correct swivel, riser, hose size, and pressure rating.
• Q: What should be checked before installation?
  A: Confirm the available mounting space, mounting surface strength, base footprint, stored material size, and loaded reel weight. This model has a 33.38" x 15.38" base and a 31.44" x 10" mounting pattern.
