Coxreels 1125-4-200-BYXX Hand Crank Storage Hose Reel | 1125 Series | Less Hose/Cord/Cable

When you need to store long runs of hose, cord, cable, rope, wire, tape, chain, or similar material without plumbing it into a live fluid system, the Coxreels 1125-4-200-BYXX Hand Crank Storage Hose Reel provides a manually operated storage solution based on the 1125 Series frame platform. This less hose/cord/cable model is supplied without hose, swivel, or riser, making it a storage-only reel for organizing bulk material on stationary mounts, mobile service units, maintenance carts, trailers, and shop work areas.

The 25.5" W x 18.75" H x 17.63" L footprint helps buyers plan mounting space before installation, while the 21.44" x 10" mounting pattern and 17.38" x 15.38" base dimensions support layout planning on benches, skids, trucks, and equipment platforms. A solid steel direct hand crank, adjustable tension brake, pillow block bearings, and all-welded A-frame construction help the reel manage repeated winding and unwinding without relying on spring or motor rewind.

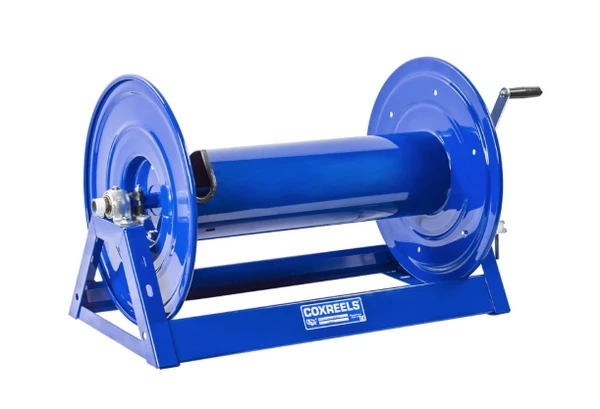

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Storage Hose Reel | Brand: Coxreels | Model: 1125-4-200-BYXX | Series: Storage Series / 1125 Series Frame | Configuration: Less Hose/Cord/Cable | Hose Included: No | Swivel/Riser: No swivel and no riser | Max PSI: 0 PSI | Rewind: Direct Hand Crank | Ship Weight: 39 lbs | Overall Dimensions: 25.5" W x 18.75" H x 17.63" L | Mounting Pattern: 21.44" M x 10" N | Base: 17.38" X x 15.38" Y

Features:

• Storage reel configuration has no swivel and no riser, making it suitable for storing and maintaining long lengths of hose, cord, cable, wire, rope, tape, chain, and similar material.
• Solid steel direct hand crank with smooth round handle provides controlled mechanical rewind without spring tension or powered rewind components.
• CNC robotically spun and ribbed discs with rolled edges add strength, improve material protection, and help reduce sharp-edge exposure during handling.
• One-piece, all CNC robotically welded 1/4" steel A-frame base is not bolted together, helping maintain reel structure during repeated winding and transport.
• Adjustable tension brake lets the user control draw speed and helps prevent free wheeling during operation, movement, or storage.
• Permanently lubricated, self-aligning pillow block bearings support smooth drum rotation with less routine bearing maintenance.
• Long-lasting CPC powder coat finish helps resist chips and rust in shop, service truck, and equipment storage environments.

Made in USA:

2 Year Warranty

Applications:

• Industrial MRO storage - organizing bulk hose, cord, rope, or cable in maintenance shops and plant service areas.
• Utility and fleet service - mounting on service trucks, mechanic trucks, skids, trailers, and mobile maintenance units where loose material needs controlled storage.
• Construction and field support - keeping long runs of cable, rope, tape, or non-pressurized hose off the ground and easier to deploy at jobsites.
• Fabrication and repair shops - storing material near benches, welding areas, equipment bays, or tool cribs without creating loose coils on the floor.
• Garage and property maintenance - manually winding extension cord, rope, chain, or utility hose when a storage-only reel is preferred over a live fluid-transfer reel.

FAQs:

• Q: What does less hose/cord/cable mean on this Coxreels model?
  A: It means the reel is supplied without hose, cord, or cable installed. The buyer must provide the material being stored separately.
• Q: Can the 1125-4-200-BYXX be used as a pressurized hose reel?
  A: No. This storage-only BYXX model has no swivel and no riser, and the listed maximum PSI is 0. It is intended for storing material, not transferring air, water, oil, grease, fuel, or hydraulic fluid under pressure.
• Q: What can this storage reel hold?
  A: Coxreels lists this storage series for long lengths of hose, collapsible hose, power cord, cable, rope, wire, barbed wire, tape, chain, and similar materials. Confirm the outside diameter, bend radius, weight, and length of your material before ordering.
• Q: Is this a spring rewind reel?
  A: No. This model uses a solid steel direct hand crank, so rewind is manual. That makes it a straightforward choice when controlled storage is needed without spring rewind tension or a powered motor.
• Q: What mounting dimensions should I check before installation?
  A: Check the overall size of 25.5" W x 18.75" H x 17.63" L, the 21.44" x 10" mounting pattern, and the 17.38" x 15.38" base dimensions against your bench, truck, skid, or platform layout.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
