Coxreels 1175-6-200-BYXX Hand Crank Storage Hose Reel | 1175 Series | Less Hose/Cord/Cable

When long lengths of hose, cord, cable, rope, wire, tape, or chain need to be stored without tangles or floor clutter, the Coxreels 1175-6-200-BYXX provides large-capacity manual rewind storage on the 1175 Series frame. This less hose/cord/cable model is a storage reel only, meaning it has no swivel and no riser for pressurized transfer. With an approximate 1" hose storage capacity of 515 ft, 640 ft capacity for 1" lay-flat hose, and a 32-7/8" W x 26-1/8" H x 24" L hand crank footprint, it gives maintenance crews and service teams a controlled way to wind and stage customer-supplied material.

The 1175-6-200-BYXX is built on Coxreels' all-welded steel A frame, using ribbed spun discs with rolled edges for added reel strength and safer material handling. The hand crank rewind gives the user direct control during take-up, which is useful when storing bulky, stiff, or unevenly wound material. Select this reel by the outside diameter and length of the material being stored, not by pressure rating, because this BYXX configuration is listed for storage use only.

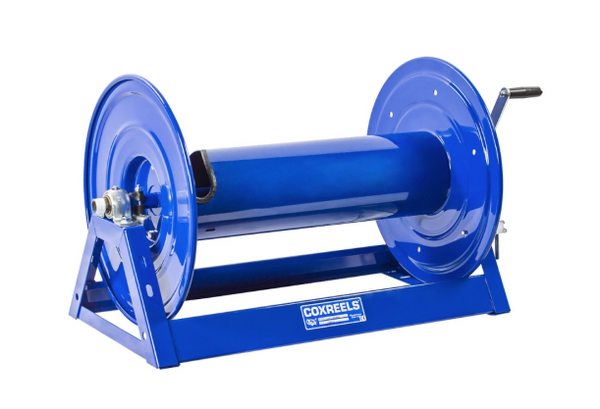

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.

Type: Hand Crank Storage Hose Reel | Series: 1175 Series | Configuration: Less Hose/Cord/Cable | Model: 1175-6-200-BYXX | Size Index: 6 | Rewind: Hand Crank | Max Pressure: 0 PSI | Approx. Weight: 83 lbs | Overall Dimensions: 32-7/8" W x 26-1/8" H x 24" L | Base Dimensions: 25-1/2" X x 20-1/8" Y | Drum Diameter: 10-1/2" | Drum Width: 20"

Features:

• Storage-only BYXX configuration has no swivel and no riser, making it suitable for winding and maintaining stored material rather than live fluid transfer.
• Hand crank rewind allows controlled manual take-up of hose, cord, cable, wire, rope, tape, chain, and similar long flexible materials.
• All-welded steel A frame construction strengthens the reel structure for stationary shop mounting or mobile unit use.
• CNC robotically spun and ribbed discs with rolled edges add strength, safety, and durability while helping protect stored material.
• Large-capacity 1175 Series frame accommodates longer material runs than smaller storage reel formats.
• Durable proprietary CPC powder coat process helps protect the reel finish in shop, field, fleet, and municipal environments.
• Built on the strength of Coxreels' standard 1175 Series platform with storage-specific configuration for non-live material management.

Made in USA:

2 Year Warranty

Applications:

• Industrial maintenance areas storing long hose, cable, cord, rope, or wire lengths between repair tasks.
• Service trucks and mobile equipment units where manual rewind storage helps keep material organized in transit.
• Municipal, utility, and facility crews staging collapsible hose, power cord, tape, chain, or similar jobsite material.
• Manufacturing and fabrication shops managing bulk cord, cable, or wire near work cells, benches, and staging areas.
• Farm, fleet, garage, and equipment repair settings where loose material needs a dedicated storage reel instead of floor or wall hooks.

FAQs:

• Q: What does the BYXX suffix mean on this Coxreels storage reel?
  A: BYXX identifies a storage-only configuration. This model has no swivel and no riser, so it is intended to store material rather than transfer pressurized air, water, oil, fuel, or hydraulic fluid.
• Q: Does the 1175-6-200-BYXX include hose, cord, or cable?
  A: No. This reel is supplied less hose, less cord, and less cable. The user must supply compatible material separately and confirm that its length and outside diameter fit the listed capacity.
• Q: Why does this reel show 0 PSI?
  A: Because it is a storage reel, not a live hose reel. Pressure ratings apply to reels with the correct swivel, plumbing, and hose configuration; this BYXX model is for storage only.
• Q: How much material can this reel hold?
  A: Capacity depends on the outside diameter of the material. For example, it holds approximately 515 ft of 1" O.D. material or 640 ft of 1" lay-flat hose, but capacity changes as the material diameter increases or decreases.
• Q: Is this reel suitable for mobile mounting?
  A: Yes, the storage reel series is intended for stationary or mobile units when properly mounted. Mounting surface, hardware, and vehicle support structure should be verified before installation.

Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.

For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
