Built for storing long lengths of large-diameter hose, cord, or cable, the Coxreels 1185-2028-BYXX Hand Crank Storage Hose Reel gives maintenance crews a rugged open-drum layout for organized payout, rewind, and storage. This 1185 Series reel is supplied in a less hose/cord/cable configuration, allowing the buyer to match the reel to a compatible hose or cable for the specific job. With 1-1/2" hose I.D. capacity, 125 ft hose capacity, and a 1500 PSI maximum pressure rating, it is suited for high-volume delivery setups where capacity, mounting footprint, and hose handling matter.
The open drum slot and low profile outlet riser help promote a flatter, smoother wrap, while the welded steel A frame base supports the added weight of larger hose assemblies. A direct hand crank gives the operator manual rewind control without needing electrical, air, or hydraulic power at the mounting location.

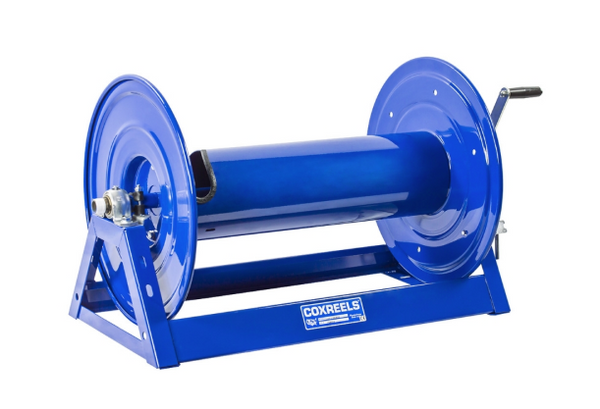

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Storage Hose Reel | Series: 1185 Series | Configuration: Less Hose/Cord/Cable | Drive Type: Hand Crank | Hose I.D.: 1-1/2" | Hose O.D.: 2-1/16" | Hose Capacity: 125 ft | Max Pressure: 1500 PSI | Hose Included: No | Overall Dimensions: 33.5" W x 30" H x 28" L | Mounting Pattern: 23.25" M x 18.5" N | Base: 25.5" X x 24.5" Y | Ship Weight: 109 lbs
Features:
- Large-capacity open-drum layout accommodates long hose runs used for high-volume fluid delivery and storage applications.
- Exclusive low profile outlet riser and open drum slot design help create a non-crimping, flat, smooth hose wrap during rewind.
- All welded steel A frame construction provides a rigid mounting base for supporting larger hose assemblies.
- External fluid path with in-line aluminum straight, full-flow NPT swivel inlet supports efficient flow through the reel connection.
- Nitrile swivel seals are used on the standard-pressure 1185 Series configuration.
- Lubricated horizontal surface mount bearings help the drum rotate smoothly during payout and rewind.
- Long-handled locking pin secures the reel from rotation during transport or storage.
- Solid steel direct hand crank with smooth round handle gives the user controlled manual retraction.
Made in USA:
Applications:
- High-volume delivery setups where long hose lengths need to be stored neatly between uses.
- Bulk liquid handling applications that require a large-capacity reel frame and manual rewind control.
- Water truck and construction site support where the reel may be mounted on service vehicles or fixed equipment.
- Farming, mining, and fleet maintenance locations that need hose organization without relying on powered rewind.
- Shop, yard, and facility storage applications where the buyer will supply a compatible hose, cord, or cable separately.
FAQs:
- Q: What does less hose/cord/cable mean on the 1185-2028-BYXX?
A: It means the reel is supplied without hose, cord, or cable installed. The buyer must provide a compatible hose, cord, or cable separately based on the application. - Q: Is this a spring rewind reel?
A: No. This model uses a hand crank rewind, which means the operator manually turns the crank to retract the hose, cord, or cable onto the drum. - Q: What hose size is this reel intended to store?
A: Manufacturer data lists this model for 1-1/2" I.D. hose with 2-1/16" O.D. and up to 125 ft capacity. Always confirm the outside diameter and bend characteristics of the hose before ordering. - Q: Can this reel be mounted on mobile equipment?
A: The 1185 Series uses a welded steel A frame base and includes a locking pin to help secure the reel during storage or transport. Mounting hardware and mounting surface requirements should be reviewed for the specific vehicle or platform. - Q: Does the 1500 PSI rating apply if I install my own hose?
A: The reel is rated up to 1500 PSI, but the complete assembly must be limited by the lowest-rated component in the system. Use hose, fittings, and accessories that match the pressure, media, and environment.
| LESS HOSE/CORD/CABLE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| MODEL | 1125 SERIES | 1175 SERIES | 1185 SERIES | ||||||
| 1125-4-200-BYXX | 1125-4-325-BYXX | 1125-5-200-BYXX | 1125-5-250-BYXX | 1175-6-100-BYXX | 1175-6-200-BYXX | 1185-2028-BYXX | 1185-3328-BYXX | ||
|
HOSE, ROPE, CABLE O.D.
|
|||||||||
| HOSE, ROPE, CABLE O.D. | 1/4" | 3,250' | 4,875' | 6,500' | 7,600' | 5,600' | 9,750' | 14,110' | 23,250' |
| HOSE, ROPE, CABLE O.D. | 3/8" | 1,475' | 2,225' | 2,975' | 3,450' | 2,435' | 4,305' | 6,100' | 10,135' |
| HOSE, ROPE, CABLE O.D. | 1/2" | 810' | 1,215' | 1,625' | 1,900' | 1,330' | 2,310' | 3,375' | 5,575' |
| HOSE, ROPE, CABLE O.D. | 5/8" | 525' | 775' | 1,060' | 1,225' | 785' | 1,400' | 2,255' | 3,665' |
| HOSE, ROPE, CABLE O.D. | 3/4" | 335' | 500' | 675' | 775' | 605' | 1,055' | 1,400' | 2,375' |
| HOSE, ROPE, CABLE O.D. | 1" | 210' | 265' | 350' | 410' | 285' | 515' | 770' | 1,275' |
| HOSE, ROPE, CABLE O.D. | 1-1/4" | 100' | 165' | 225' | 260' | 195' | 350' | 560' | 915' |
| HOSE, ROPE, CABLE O.D. | 1-1/2" | 65' | 100' | 135' | 150' | 120' | 220' | 305' | 515' |
| HOSE, ROPE, CABLE O.D. | 1-3/4" | 50' | 90' | 115' | 140' | 70' | 135' | 275' | 450' |
| HOSE, ROPE, CABLE O.D. | 2" | 30' | 50' | 60' | 75' | 65' | 125' | 190' | 310' |
| HOSE, ROPE, CABLE O.D. | 2-1/4" | 25' | 45' | 55' | 65' | 65' | 105' | 110' | 190' |
| HOSE, ROPE, CABLE O.D. | 2-1/2" | 20' | 40' | 50' | 60' | 30' | 60' | 110' | 180' |
| HOSE, ROPE, CABLE O.D. | 2-3/4" | 15' | 35' | 45' | 55' | 30' | 55' | 100' | 175' |
| HOSE, ROPE, CABLE O.D. | 3" | 10' | 15' | 20' | 20' | 25' | 50' | 50' | 95' |
|
LAY FLAT HOSE
|
|||||||||
| LAY FLAT HOSE | 1" | 200' | 290' | 380' | 475' | 350' | 640' | 930' | 1,520' |
| LAY FLAT HOSE | 1-1/2" | 140' | 210' | 285' | 330' | 120' | 245' | 325' | 595' |
| LAY FLAT HOSE | 2" | 95' | 140' | 190' | 220' | 90' | 205' | 270' | 490' |
| LAY FLAT HOSE | 2-1/2" | 70' | 105' | 140' | 165' | 80' | 185' | 270' | 430' |
| LAY FLAT HOSE | 3" | 55' | 85' | 110' | 130' | 70' | 160' | 240' | 280' |
| APRX. LBS. | 39 | 48 | 55 | 59 | 70 | 83 | 109 | 169 | |
| SIZE INDEX | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
