Built for organizing long runs of hose, cord, cable, rope, wire, tape, or chain, the Coxreels 1175-6-100-BYXX is a 1175 Series hand crank storage reel supplied in a less hose/cord/cable configuration. This reel is intended for storage only, meaning it is used to wind, store, and transport material rather than carry pressurized fluid through a swivel. Its 24.5" W x 26.13" H x 24" L footprint and 73 lb ship weight make it a large-capacity reel for fixed shop installations, service vehicles, and mobile equipment setups where loose lengths need to be controlled, protected, and ready for the next job.
The 1175 Series storage design uses Coxreels' welded steel A frame construction, ribbed spun discs with rolled edges, and direct hand crank rewind to help manage bulk material without relying on spring rewind or powered retraction. Because this model is listed with 0 PSI and no hose, it should be selected by required storage capacity, reel dimensions, mounting pattern, and the outside diameter of the material being stored.

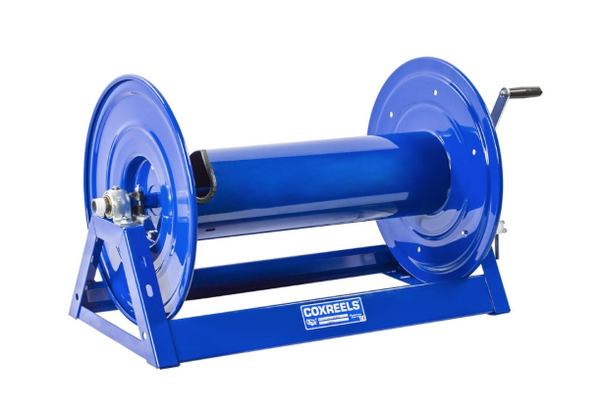

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Hand Crank Storage Hose Reel | Series: 1175 Series | Configuration: Less Hose/Cord/Cable | Model: 1175-6-100-BYXX | Hose: No | Max PSI: 0 | Ship Weight: 73 lbs | Overall Dimensions: 24.5" W x 26.13" H x 24" L | Mounting Pattern: 14.81" M x 13.75" N | Base: 17" X x 20.13" Y | Rewind: Hand Crank
Features:
- Less hose/cord/cable storage configuration for winding customer-supplied hose, power cord, cable, rope, wire, tape, chain, and other compatible material.
- Storage-only design has no swivel and no riser, making it appropriate for material management rather than live fluid transfer.
- Sturdy all-welded steel A frame base helps support long material lengths on stationary mounts or mobile units.
- CNC robotically spun and ribbed discs with rolled edges help add strength, improve safety, and protect stored material from sharp reel edges.
- Direct hand crank rewind gives the user manual control when winding material back onto the drum.
- Durable proprietary CPC powder coat finish helps resist chips and corrosion in shop, service, and field environments.
- Built on the 1175 Series platform for larger storage capacity than smaller Coxreels storage reel frames.
Made in USA:
Applications:
- Service trucks and mobile maintenance units used to store long lengths of cable, hose, rope, or wire between jobs.
- Industrial maintenance and MRO areas where bulk material needs to be wound neatly instead of left loose on the floor.
- Fire, utility, and municipal support work where collapsible hose or similar material must be staged for deployment and recovery.
- Manufacturing and fabrication shops managing power cord, cable, wire, tape, chain, or other long flexible material.
- Garage, farm, and equipment repair settings where manual rewind storage helps reduce tangles and improve material handling.
FAQs:
- Q: What does less hose/cord/cable mean?
A: It means the reel is supplied without hose, cord, cable, rope, or other stored material installed. The buyer must provide the material separately and confirm that its outside diameter and length fit the reel capacity. - Q: Can this reel be used for pressurized air, water, oil, or fuel transfer?
A: This BYXX storage model is listed for storage only and has no swivel or riser. It should not be treated as a live fluid-transfer hose reel unless the correct reel configuration and pressure-rated components are selected. - Q: How do I choose the right storage reel size?
A: Match the reel to the outside diameter and length of the material you need to store. Larger material diameters reduce capacity, so use the storage capacity table rather than the model number alone. - Q: Is the 1175-6-100-BYXX spring rewind?
A: No. This model is a hand crank storage reel, so rewind is controlled manually with the crank handle. - Q: Does this model include mounting hardware?
A: The manufacturer data provided does not confirm included mounting hardware. Verify mounting hardware requirements before installation, especially for vehicle or mobile-unit mounting.
| LESS HOSE/CORD/CABLE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| MODEL | 1125 SERIES | 1175 SERIES | 1185 SERIES | ||||||
| 1125-4-200-BYXX | 1125-4-325-BYXX | 1125-5-200-BYXX | 1125-5-250-BYXX | 1175-6-100-BYXX | 1175-6-200-BYXX | 1185-2028-BYXX | 1185-3328-BYXX | ||
|
HOSE, ROPE, CABLE O.D.
|
|||||||||
| HOSE, ROPE, CABLE O.D. | 1/4" | 3,250' | 4,875' | 6,500' | 7,600' | 5,600' | 9,750' | 14,110' | 23,250' |
| HOSE, ROPE, CABLE O.D. | 3/8" | 1,475' | 2,225' | 2,975' | 3,450' | 2,435' | 4,305' | 6,100' | 10,135' |
| HOSE, ROPE, CABLE O.D. | 1/2" | 810' | 1,215' | 1,625' | 1,900' | 1,330' | 2,310' | 3,375' | 5,575' |
| HOSE, ROPE, CABLE O.D. | 5/8" | 525' | 775' | 1,060' | 1,225' | 785' | 1,400' | 2,255' | 3,665' |
| HOSE, ROPE, CABLE O.D. | 3/4" | 335' | 500' | 675' | 775' | 605' | 1,055' | 1,400' | 2,375' |
| HOSE, ROPE, CABLE O.D. | 1" | 210' | 265' | 350' | 410' | 285' | 515' | 770' | 1,275' |
| HOSE, ROPE, CABLE O.D. | 1-1/4" | 100' | 165' | 225' | 260' | 195' | 350' | 560' | 915' |
| HOSE, ROPE, CABLE O.D. | 1-1/2" | 65' | 100' | 135' | 150' | 120' | 220' | 305' | 515' |
| HOSE, ROPE, CABLE O.D. | 1-3/4" | 50' | 90' | 115' | 140' | 70' | 135' | 275' | 450' |
| HOSE, ROPE, CABLE O.D. | 2" | 30' | 50' | 60' | 75' | 65' | 125' | 190' | 310' |
| HOSE, ROPE, CABLE O.D. | 2-1/4" | 25' | 45' | 55' | 65' | 65' | 105' | 110' | 190' |
| HOSE, ROPE, CABLE O.D. | 2-1/2" | 20' | 40' | 50' | 60' | 30' | 60' | 110' | 180' |
| HOSE, ROPE, CABLE O.D. | 2-3/4" | 15' | 35' | 45' | 55' | 30' | 55' | 100' | 175' |
| HOSE, ROPE, CABLE O.D. | 3" | 10' | 15' | 20' | 20' | 25' | 50' | 50' | 95' |
|
LAY FLAT HOSE
|
|||||||||
| LAY FLAT HOSE | 1" | 200' | 290' | 380' | 475' | 350' | 640' | 930' | 1,520' |
| LAY FLAT HOSE | 1-1/2" | 140' | 210' | 285' | 330' | 120' | 245' | 325' | 595' |
| LAY FLAT HOSE | 2" | 95' | 140' | 190' | 220' | 90' | 205' | 270' | 490' |
| LAY FLAT HOSE | 2-1/2" | 70' | 105' | 140' | 165' | 80' | 185' | 270' | 430' |
| LAY FLAT HOSE | 3" | 55' | 85' | 110' | 130' | 70' | 160' | 240' | 280' |
| APRX. LBS. | 39 | 48 | 55 | 59 | 70 | 83 | 109 | 169 | |
| SIZE INDEX | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
