Built for powered hose retrieval on service trucks, mobile maintenance skids, fleet shops, and industrial fluid handling stations, the Coxreels 1125-5-200-EF uses a 24V DC 1/3 HP electric motor to manage up to 200 ft of 3/4" I.D. hose at a 3000 PSI maximum pressure rating. The 24V DC configuration is useful where the reel is powered from vehicle, equipment, or battery-supported DC electrical systems instead of fixed AC shop power.
Part of the 1125 Series, this motor rewind hose reel uses Coxreels' one-piece welded steel 'A' frame, low profile outlet riser, and open drum slot design to help guide hose into a smooth, flat wrap with reduced crimping. The direct gear drive supports powered retraction without a chain drive, while permanently lubricated self-aligning pillow block bearings help the drum rotate smoothly during repeated hose payout and rewind. This model is supplied less hose, allowing buyers to install a hose assembly matched to their fluid, fittings, pressure rating, temperature range, bend radius, and installation requirements.

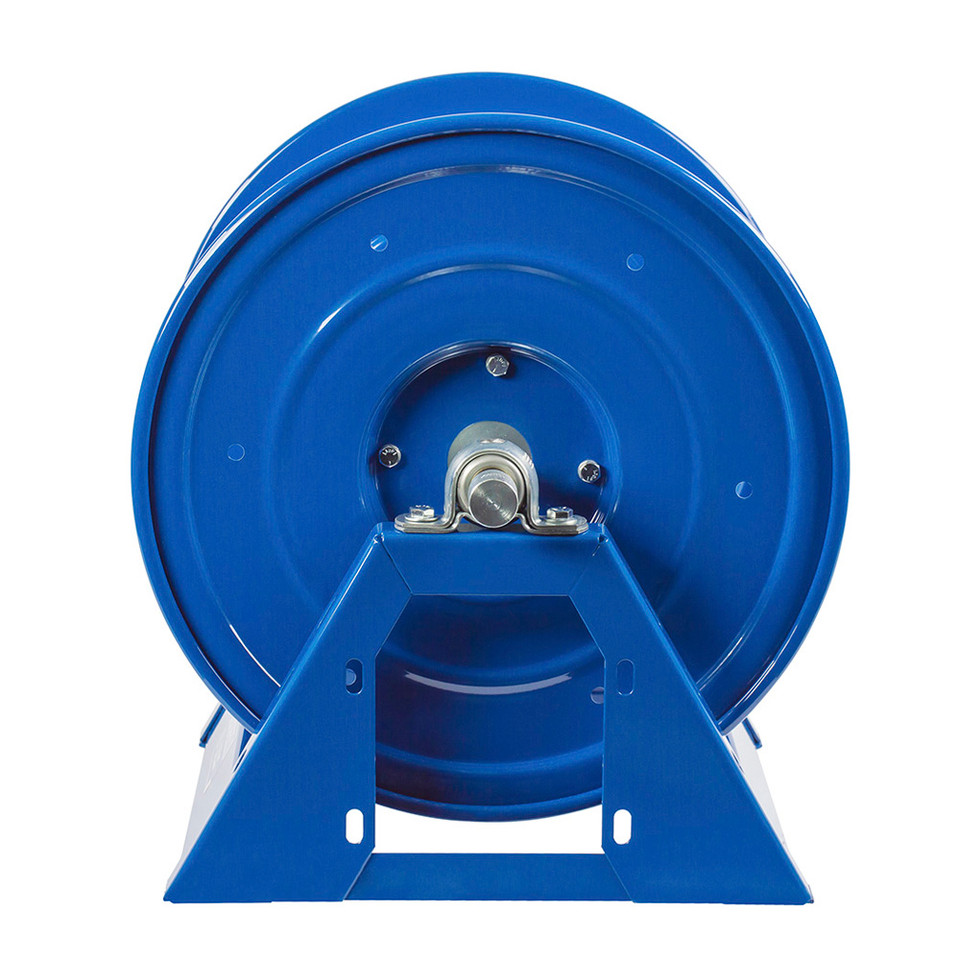

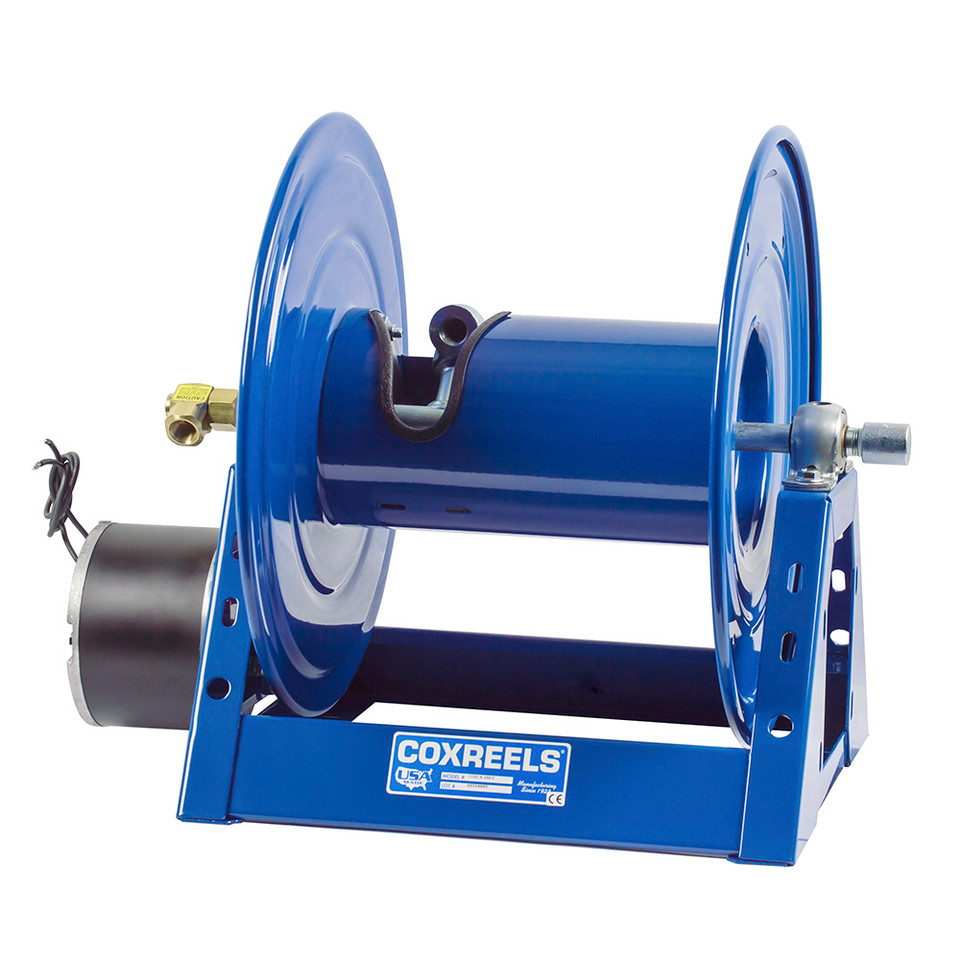

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Motor: 24V DC 1/3 HP Electric Motor | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 200 ft | Max Pressure: 3000 PSI | Hose Included: No | Swivel Seals: Nitrile | Ship Weight: 68 lbs | Overall Dimensions: 38" W x 19.25" H x 17.63" L | Mounting Pattern: 27.44" M x 10" N | Base: 29.38" X x 16" Y
Features:
- 24V DC 1/3 HP electric motor rewind supports powered hose retrieval on vehicles, mobile skids, and equipment platforms using DC power.
- Reliable direct gear drive on motor driven models provides smooth retraction without a chain drive.
- Machined solid brass 90° full-flow NPT swivel supports efficient flow through the reel and allows seal maintenance without removing the reel from its mount.
- Nitrile swivel seals are used on standard 1125 Series models for compatible air, water, oil, grease, lubrication, and hydraulic service.
- All welded steel 'A' frame construction provides a rigid base for floor, bench, truck, skid, or fixed equipment mounting.
- Exclusive low profile outlet riser and open drum slot design help create a flatter hose wrap while reducing hose crimping.
- Permanently lubricated self-aligning pillow block bearings promote smooth drum rotation with reduced routine bearing service.
- Adjustable tension brake helps prevent free-wheeling during hose payout and rewind.
Made in USA:
Applications:
- Mobile service trucks using 24V DC power for hose retrieval after field repair and maintenance work.
- Fleet and heavy equipment maintenance skids handling oil, lubrication, hydraulic, or compatible fluid hose assemblies.
- Industrial MRO stations where powered rewind helps keep long 3/4" hose runs controlled between service tasks.
- Construction, agriculture, and utility service equipment where mounted hose reels help crews reach machinery around the jobsite.
- Manufacturing and fabrication facilities using DC-powered reel systems for fixed or semi-mobile fluid delivery setups.
FAQs:
- Q: What does 'less hose' mean on the 1125-5-200-EF?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/4" I.D. hose rated for the pressure, fluid type, fittings, temperature, bend radius, and operating environment. - Q: What does the 'EF' motor option indicate?
A: For this listing, the 'EF' configuration refers to a 24V DC 1/3 HP electric motor rewind option. It provides powered hose retraction instead of manual crank operation. - Q: Where is a 24V DC rewind reel commonly used?
A: A 24V DC rewind reel is commonly selected for mobile equipment, field service trucks, utility vehicles, and maintenance skids where DC power is available. Confirm the power supply, wiring, controls, and circuit protection before installation. - Q: Can this reel be used for hydraulic or lubrication service?
A: Yes, this 1125 Series model is listed at 3000 PSI and is commonly selected for grease, hydraulics, oil, lubrication, air, water, and compatible fluid handling. The complete hose assembly, fittings, seals, and fluid compatibility must match the system requirements. - Q: How much hose will this reel hold?
A: This model is listed for 200 ft of 3/4" I.D. hose with a 1-1/4" hose O.D. Hose outside diameter affects reel capacity, so larger hose may reduce the amount that fits on the drum.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-200 | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200 | 4,500 | 55 | 9 |
| 1125-5-200-A | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-A | 4,500 | 55 | 9 |
| 1125-5-200-AB | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-AB | 4,500 | 55 | 9 |
| 1125-5-200-C | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-C | 4,500 | 55 | 9 |
| 1125-5-200-E | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-E | 4,500 | 55 | 9 |
| 1125-5-200-EA | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-EA | 4,500 | 55 | 9 |
| 1125-5-200-EB | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-EB | 4,500 | 55 | 9 |
| 1125-5-200-ED | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-ED | 4,500 | 55 | 9 |
| 1125-5-200-EF | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-EF | 4,500 | 55 | 9 |
| 1125-5-200-H | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-H | 4,500 | 55 | 9 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
