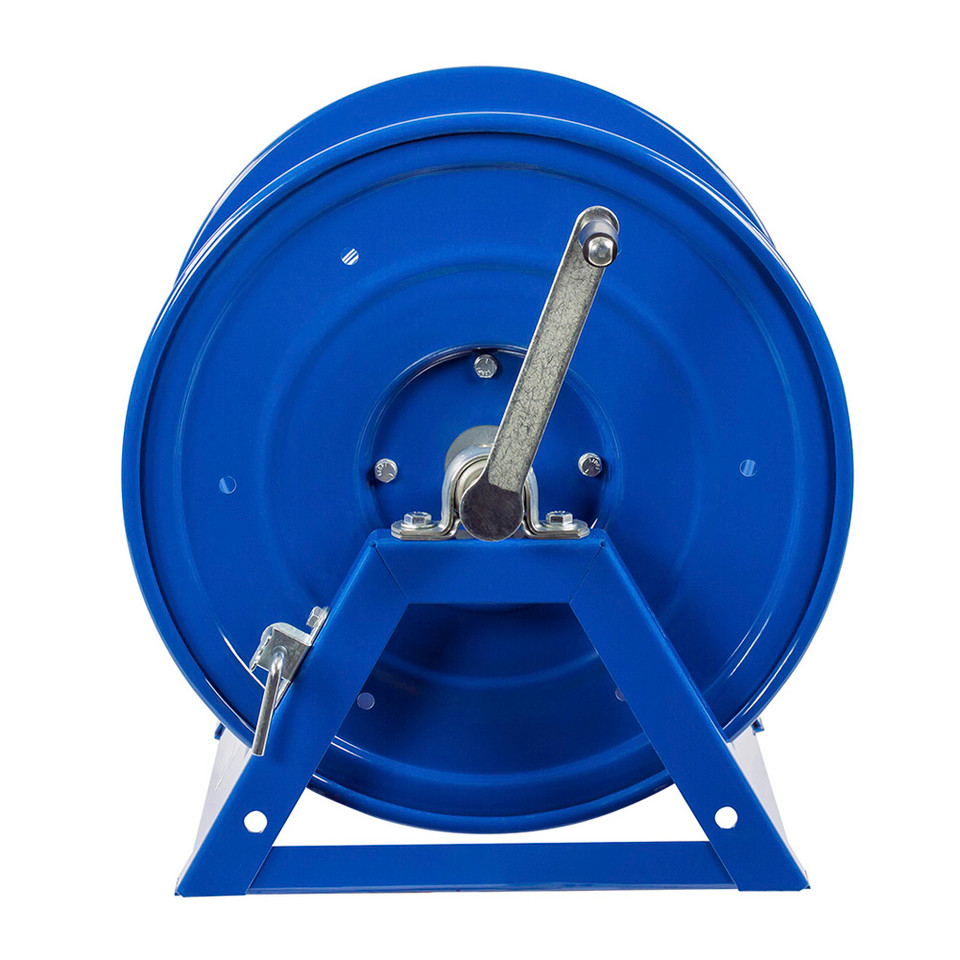

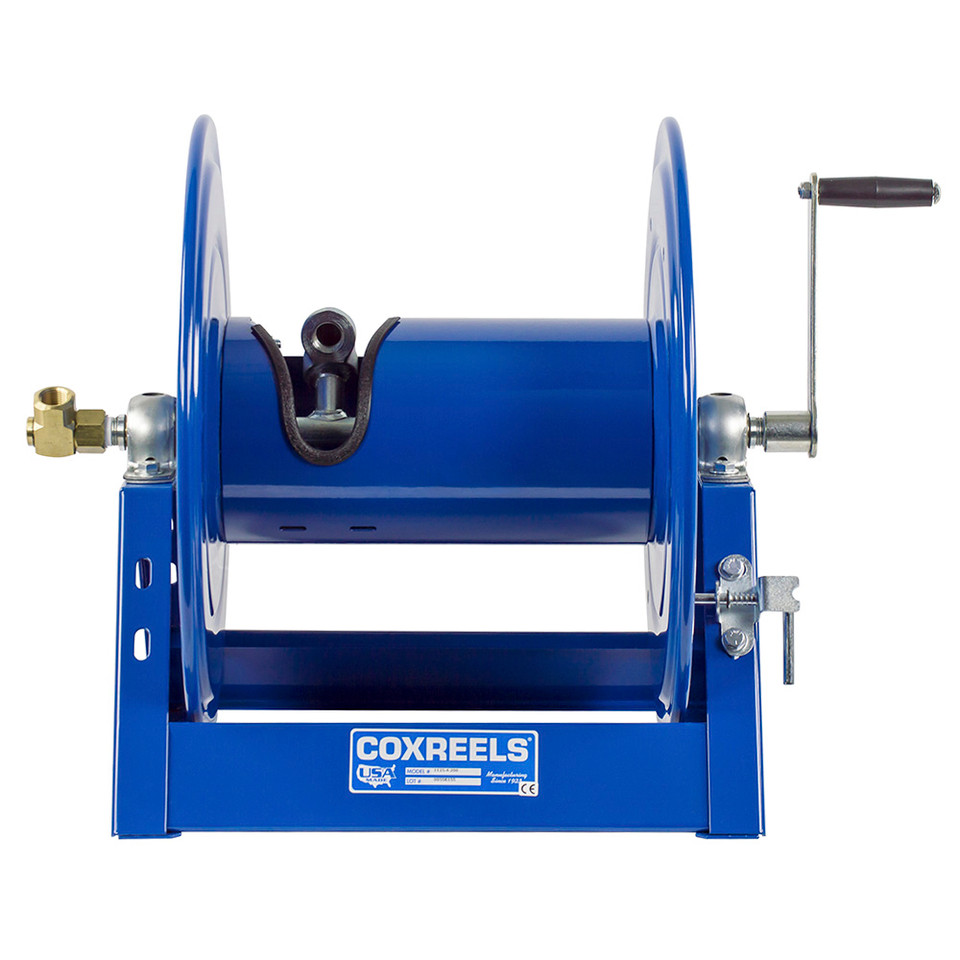

Built for long hose storage where a standard direct crank can become tiring or awkward, the Coxreels 1125-5-200-C uses a bevel geared crank to manage up to 200 ft of 3/4" I.D. hose at a 3000 PSI maximum pressure rating. The bevel geared crank configuration changes the winding motion through a gear set, giving maintenance crews a practical manual rewind option for longer hose lengths used on service trucks, shop floors, skids, and fixed fluid handling stations.
Part of the 1125 Series, this reel uses Coxreels' one-piece welded steel 'A' frame, low profile outlet riser, and open drum slot design to help guide hose into a flatter, smoother wrap. Permanently lubricated self-aligning pillow block bearings support smooth drum rotation, while the 90° full-flow NPT swivel provides a clear fluid path through the reel. This model is supplied less hose, allowing the buyer to install hose selected for the application, fluid, fittings, bend radius, and jobsite requirements.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Bevel Geared Crank Hose Reel | Series: 1125 Series | Configuration: Less Hose | Rewind: Bevel Geared Crank | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 200 ft | Max Pressure: 3000 PSI | Hose Included: No | Ship Weight: 55 lbs | Drum Width: 24" | Overall Dimensions: 39.25" W x 18.13" H x 17.63" L | Mounting Pattern: 27.44" M x 10" N | Base: 29.38" X x 15.38" Y
Features:
- Bevel geared crank rewind provides a manual winding option suited to longer hose lengths.
- One-piece all welded steel 'A' frame base supports rigid mounting on benches, floors, trucks, skids, or service equipment.
- Low profile outlet riser and open drum slot design help create a flat, smooth hose wrap while reducing hose crimping.

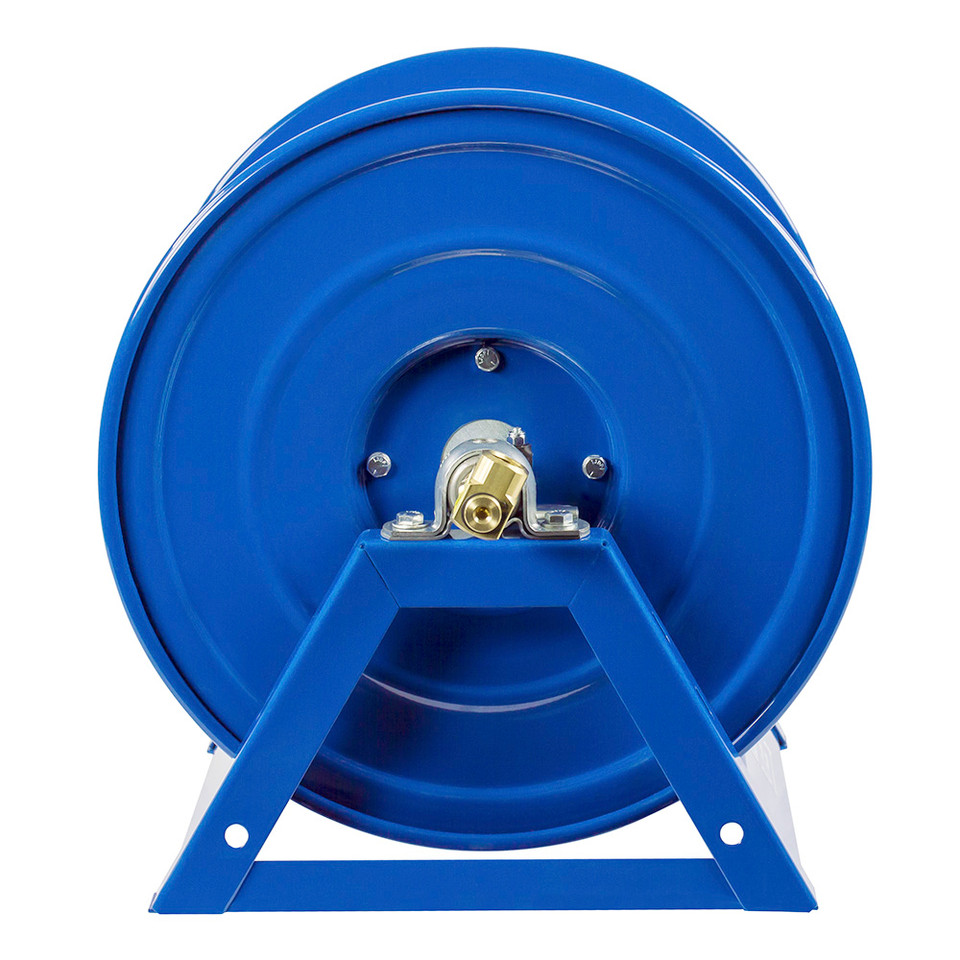

- Machined 90° full-flow NPT swivel supports efficient fluid flow through the reel.
- Permanently lubricated self-aligning pillow block bearings promote smooth drum rotation with reduced routine bearing service.
- Adjustable tension brake helps prevent free-wheeling during hose payout and rewind.
- Long-handled locking pin secures the reel from rotation during transport or storage.
- Rolled edges and ribbed discs add strength while helping protect hose during winding and unwinding.
Made in USA:
Applications:
- Fleet maintenance shops storing long air, oil, lubrication, or compatible fluid hose runs around service bays.
- Mobile service trucks and field repair skids where a manual geared rewind reel is preferred over electric or air motor rewind.
- Construction and agricultural equipment service areas that need controlled hose storage for large machinery maintenance.
- Industrial MRO stations where 200 ft hose capacity helps reach multiple work points from a fixed reel location.
- Fabrication, manufacturing, and utility shops keeping hose organized, off the floor, and ready for repeat use.
FAQs:
- Q: What does 'less hose' mean on the 1125-5-200-C?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/4" I.D. hose rated for the pressure, fluid, fittings, temperature, and application. - Q: What is a bevel geared crank reel?
A: A bevel geared crank reel uses a gear set to change the crank motion during manual rewind. This can make the reel easier to position and operate on longer hose capacities than a basic direct hand crank setup. - Q: How is this different from a motorized 1125 Series reel?
A: This '-C' model uses manual bevel geared crank rewind, while motorized 1125 Series versions use electric, air, or hydraulic power to rewind the hose. The bevel geared crank version does not require a power source for retraction. - Q: Can this reel be used for hydraulic oil service?
A: Yes, when the hose, fittings, seals, pressure rating, and fluid compatibility match the hydraulic system requirements. This model is listed at 3000 PSI, but the complete hose assembly must also be rated for the working conditions. - Q: What hose outside diameter is this reel sized for?
A: This model is listed for 3/4" I.D. hose with a 1-1/4" hose O.D. and 200 ft capacity. Hose with a larger outside diameter may reduce the amount that fits on the drum.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-200 | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200 | 4,500 | 55 | 9 |
| 1125-5-200-A | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-A | 4,500 | 55 | 9 |
| 1125-5-200-AB | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-AB | 4,500 | 55 | 9 |
| 1125-5-200-C | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-C | 4,500 | 55 | 9 |
| 1125-5-200-E | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-E | 4,500 | 55 | 9 |
| 1125-5-200-EA | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-EA | 4,500 | 55 | 9 |
| 1125-5-200-EB | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-EB | 4,500 | 55 | 9 |
| 1125-5-200-ED | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-ED | 4,500 | 55 | 9 |
| 1125-5-200-EF | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-EF | 4,500 | 55 | 9 |
| 1125-5-200-H | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-H | 4,500 | 55 | 9 |
