Built for powered hose retrieval where a standard electric motor may not meet site requirements, the Coxreels 1125-5-200-EA combines 115V electric rewind with an explosion proof 1/2 HP motor for managing up to 200 ft of 3/4" I.D. hose at a 3000 PSI maximum pressure rating. The electric rewind configuration helps bring long hose runs back onto the reel without manual cranking, making it useful for maintenance bays, service skids, vehicle-mounted systems, and industrial fluid handling locations where hose is deployed repeatedly.
Part of the 1125 Series, this motorized reel uses Coxreels' one-piece welded steel 'A' frame, low profile outlet riser, and open drum slot design to help produce a flatter hose wrap with reduced crimping. The direct gear drive provides powered retraction without a chain, while permanently lubricated self-aligning pillow block bearings help the drum rotate smoothly. This model is supplied less hose, so the buyer can install a hose assembly matched to the fluid, fittings, pressure, temperature, bend radius, and site standards required for the job.

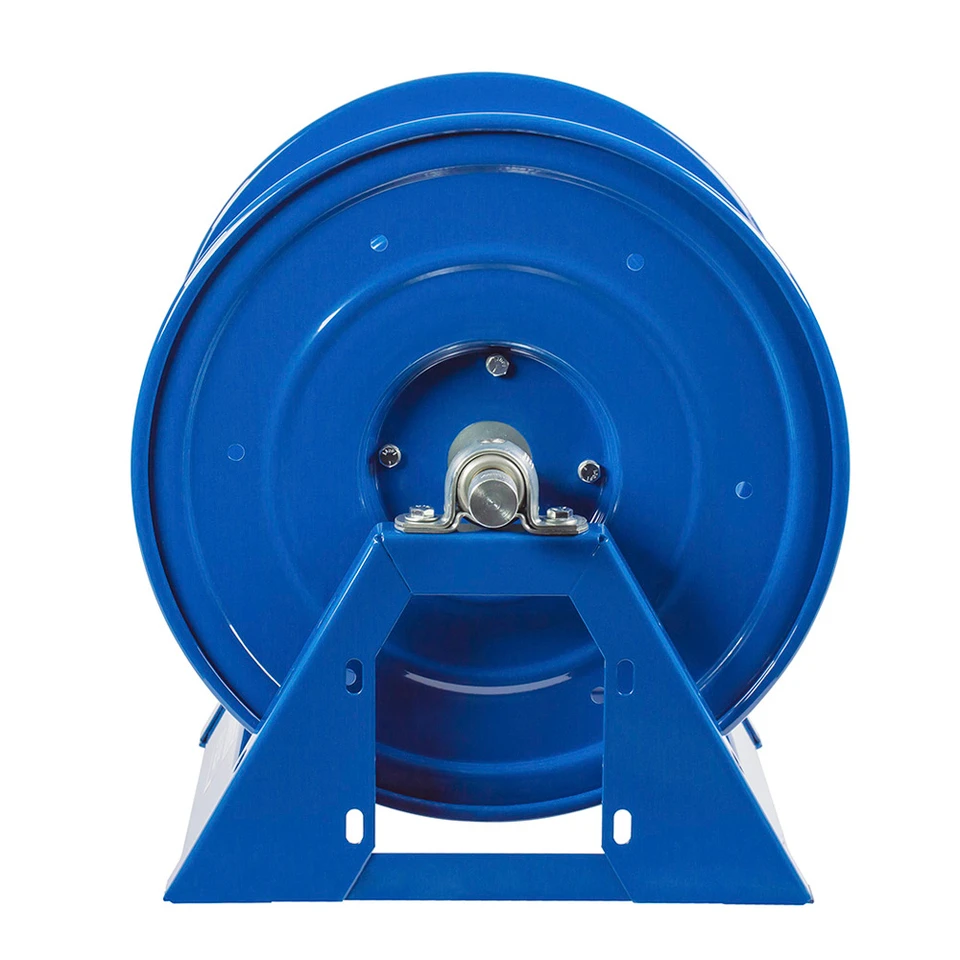

*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric Motor Rewind Hose Reel | Series: 1125 Series | Motor: 115V Explosion Proof 1/2 HP Electric Motor | Configuration: Less Hose | Hose I.D.: 3/4" | Hose O.D.: 1-1/4" | Hose Capacity: 200 ft | Max Pressure: 3000 PSI | Hose Included: No | Ship Weight: 81 lbs | Overall Dimensions: 38" W x 19.25" H x 17.63" L | Mounting Pattern: 27.44" M x 10" N | Base: 29.38" X x 16" Y
Features:
- 115V explosion proof 1/2 HP electric motor rewind supports powered hose retrieval in applications requiring this motor configuration.
- Reliable direct gear drive on motor driven models provides smooth retraction without a chain drive.
- Machined solid brass 90° full-flow NPT swivel supports efficient flow through the reel and allows seal maintenance without removing the reel from its mount.
- Nitrile swivel seals are used on standard 1125 Series models for compatible air, water, oil, grease, lubrication, and hydraulic service.
- All welded steel 'A' frame construction provides a rigid base for truck, skid, floor, bench, or fixed equipment mounting.
- Exclusive low profile outlet riser and open drum slot design help create a flat, smooth hose wrap with reduced hose crimping.
- Permanently lubricated self-aligning pillow block bearings promote smooth drum rotation with reduced routine bearing service.
- Adjustable tension brake helps prevent free-wheeling during hose payout and rewind.
Made in USA:
Applications:
- Industrial MRO stations where powered hose retraction helps keep long hose runs controlled between service tasks.
- Fleet and heavy equipment maintenance areas handling oil, lubrication, hydraulic, or compatible fluid hose assemblies.
- Mobile service trucks and maintenance skids that require 115V electric rewind instead of air or hydraulic rewind power.
- Manufacturing, fabrication, and utility facilities where organized hose storage reduces floor clutter around fixed work areas.
- Service environments reviewing explosion proof motor options for reel installations, subject to site electrical and safety approval.
FAQs:
- Q: What does 'less hose' mean on the 1125-5-200-EA?
A: It means the reel is supplied without hose installed. The buyer must provide compatible 3/4" I.D. hose rated for the pressure, fluid type, fittings, temperature, bend radius, and operating environment. - Q: What does the 'EA' configuration indicate?
A: For this listing, the 'EA' configuration refers to an electric 115V explosion proof 1/2 HP motor rewind option. It provides powered retraction instead of manual crank operation. - Q: Does an explosion proof motor make the entire reel approved for hazardous locations?
A: Not by itself. The motor configuration is listed as explosion proof, but the complete installation, wiring, controls, switches, grounding, and area classification must be reviewed by qualified personnel before use in any hazardous or classified location. - Q: Can this reel be used for hydraulic or lubrication service?
A: Yes, this 1125 Series model is listed at 3000 PSI and is commonly selected for grease, hydraulics, oil, lubrication, air, water, and compatible fluid handling. The hose, fittings, seals, and complete assembly must also match the fluid and pressure requirements. - Q: How much hose will this reel hold?
A: This model is listed for 200 ft of 3/4" I.D. hose with a 1-1/4" hose O.D. Hose outside diameter affects reel capacity, so larger hose may reduce the amount that fits on the drum.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER |
PSI | SKU | HP PSI | APRX. LBS. |
SIZE INDEX |
||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-5-200 | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200 | 4,500 | 55 | 9 |
| 1125-5-200-A | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-A | 4,500 | 55 | 9 |
| 1125-5-200-AB | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-AB | 4,500 | 55 | 9 |
| 1125-5-200-C | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-C | 4,500 | 55 | 9 |
| 1125-5-200-E | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-E | 4,500 | 55 | 9 |
| 1125-5-200-EA | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-EA | 4,500 | 55 | 9 |
| 1125-5-200-EB | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-EB | 4,500 | 55 | 9 |
| 1125-5-200-ED | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-ED | 4,500 | 55 | 9 |
| 1125-5-200-EF | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-EF | 4,500 | 55 | 9 |
| 1125-5-200-H | 3/4" | 1 1/4" | 200 | 1/2" | 7/8" | 450 | 3/4" F NPT | 3,000 | HP1125-5-200-H | 4,500 | 55 | 9 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
