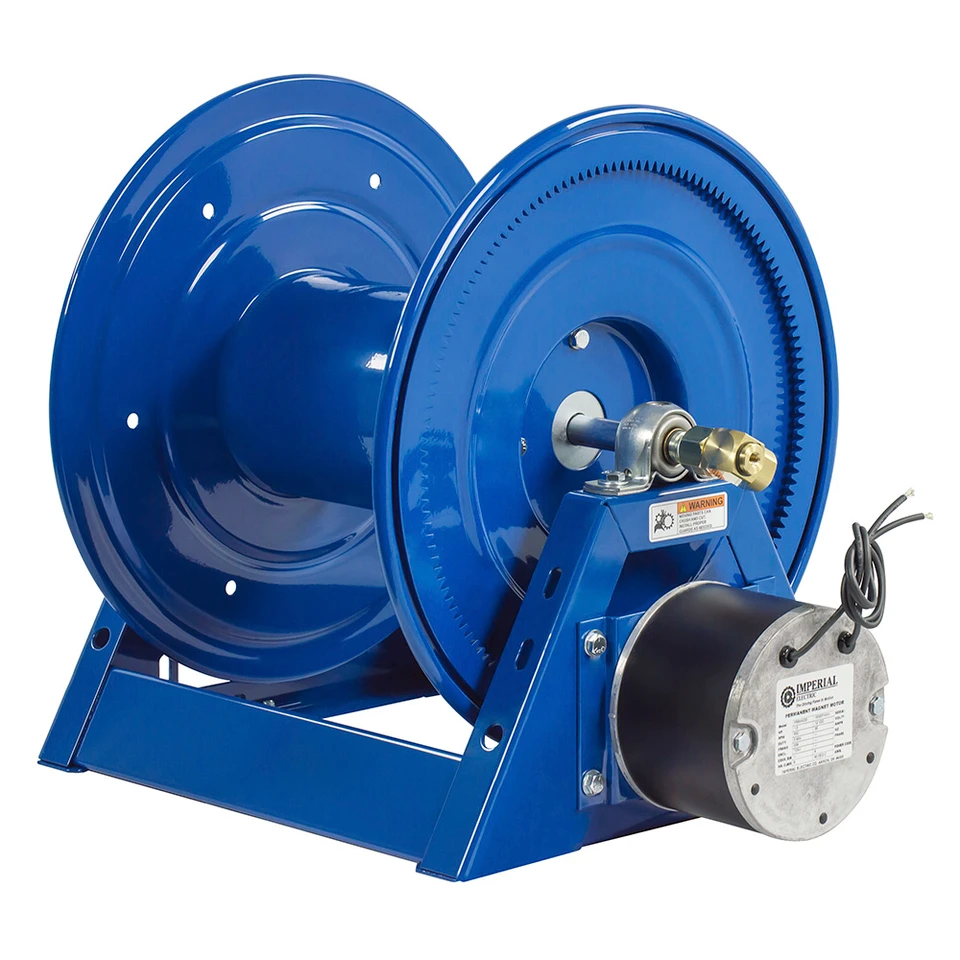

Built for mobile service equipment and fixed installations that require extended hose reach, the Coxreels 1125-4-325-E Electric Motor Rewind Hose Reel stores up to 325 feet of 1/2-inch I.D. hose. Its 12V DC, 1/3 HP reversible motor provides powered retrieval from a compatible vehicle or equipment electrical system, reducing the effort required to rewind a long hose assembly. Part of the 1125 Series, this reel suits utility trucks, lubrication equipment, construction support vehicles, and industrial fluid-delivery stations where onboard DC power is available.
The reel carries a 3,000 PSI maximum working pressure for compatible air, water, oil, lubrication, and hydraulic fluid applications when the separately installed hose, fittings, and accessories meet the required ratings. Its direct gear drive transfers motor power to the drum without a chain for smooth, quiet retraction. A low-profile outlet riser and open drum slot promote a flat hose wrap, while self-aligning pillow block bearings and an adjustable tension brake help maintain controlled drum movement.
*Note: The above product image is for illustration purposes only. This product is a reel and does not include any hose. Please note this before ordering.
Type: Electric DC Motor Rewind Hose Reel | Series: 1125 Series | Configuration: Less Hose | Motor: 12V DC, 1/3 HP Reversible | Drive: Direct Gear Drive | Hose I.D.: 1/2" | Hose O.D.: 7/8" | Hose Capacity: 325 ft | Max Pressure: 3,000 PSI | Swivel Inlet: 1/2" Female NPT | Outlet Riser: 1/2" Female NPT | Overall Dimensions: 31.75" W x 19.25" H x 17.63" L | Base Dimensions: 23.38" X x 16" Y | Drum Diameter: 12.5" | Drum Width: 18"
Features:
- 12V DC, 1/3 HP reversible electric motor provides powered hose retrieval from a compatible mobile or stationary electrical system.
- Direct gear drive delivers smooth, quiet rewind without a chain-drive mechanism.
- One-piece, all-welded steel A-frame construction creates a rigid mounting platform for vehicle and equipment installations.
- Machined solid brass 90° full-flow NPT swivel with nitrile seals supports efficient fluid transfer and serviceable seal replacement.
- Low-profile outlet riser and open drum slot promote a flat, non-crimping hose wrap during payout and retrieval.
- Permanently lubricated self-aligning bearings and an adjustable tension brake support smooth, controlled drum movement.
Made in USA:
Applications:
- Fleet and utility service vehicles using onboard 12V DC power for extended hose deployment and retrieval.
- Mobile lubrication and hydraulic service equipment handling compatible fluids.
- Construction and agricultural maintenance vehicles requiring up to 325 feet of working reach.
- Industrial plant and grounds maintenance using long air, water, oil, or compatible fluid hose.
- Equipment trailers and machinery skids where powered rewind reduces manual handling of long hose assemblies.
FAQs:
- Q: Does the Coxreels 1125-4-325-E include hose?
A: No. This model is supplied as a reel only. Install a compatible 1/2-inch I.D. hose with an outside diameter no greater than 7/8 inch and suitable pressure, temperature, bend-radius, and media ratings. - Q: What does the 'E' suffix indicate?
A: The E suffix identifies the 12V DC, 1/3 HP reversible electric motor option. The motor powers the reel's direct gear drive during hose retrieval. - Q: How does this model differ from the 1125-4-200-E?
A: The 1125-4-325-E stores up to 325 feet of 1/2-inch hose, compared with 200 feet for the 1125-4-200-E. Its additional capacity requires a wider drum and larger mounting footprint. - Q: Can the reel operate at the full 3,000 PSI rating?
A: Yes, provided the installed hose, fittings, connectors, and every other fluid-path component are rated for the intended working pressure. The completed assembly is limited by its lowest-rated component.
| LESS HOSE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SKU | STANDARD CAP | OPTIONAL CAP. Reducer required |
INLET SWIVEL & OUTLET RISER | PSI | HP SKU | HP PSI | APRX. LBS. | SIZE INDEX | ||||
| I.D. | O.D. | FT. | I.D. | O.D. | FT. | |||||||
| 1125-4-325 | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3000 | HP1125-4-325 | 5000 | 48 | 3 |
| 1125-4-325-A | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3000 | HP1125-4-325-A | 5000 | 48 | 3 |
| 1125-4-325-AB | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3000 | HP1125-4-325-AB | 5000 | 48 | 3 |
| 1125-4-325-C | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3000 | HP1125-4-325-C | 5000 | 48 | 3 |
| 1125-4-325-E | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3000 | HP1125-4-325-E | 5000 | 48 | 3 |
| 1125-4-325-ED | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3000 | HP1125-4-325-ED | 5000 | 48 | 3 |
| 1125-4-325-EF | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3000 | HP1125-4-325-EF | 5000 | 48 | 3 |
| 1125-4-325-EB | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3000 | HP1125-4-325-EB | 5000 | 48 | 3 |
| 1125-4-325-EA | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3000 | HP1125-4-325-EA | 5000 | 48 | 3 |
| 1125-4-325-H | 1/2" | 7/8" | 325 | 3/8" | 3/4" | 450 | 1/2" F NPT | 3000 | HP1125-4-325-H | 5000 | 48 | 3 |
Looking for more information about the Coxreels Rewind Reel? Click here to view the Catalog.
For help choosing the correct Coxreels Rewind Reels, please call (800) 608-5210 or email info@intlairtool.com
