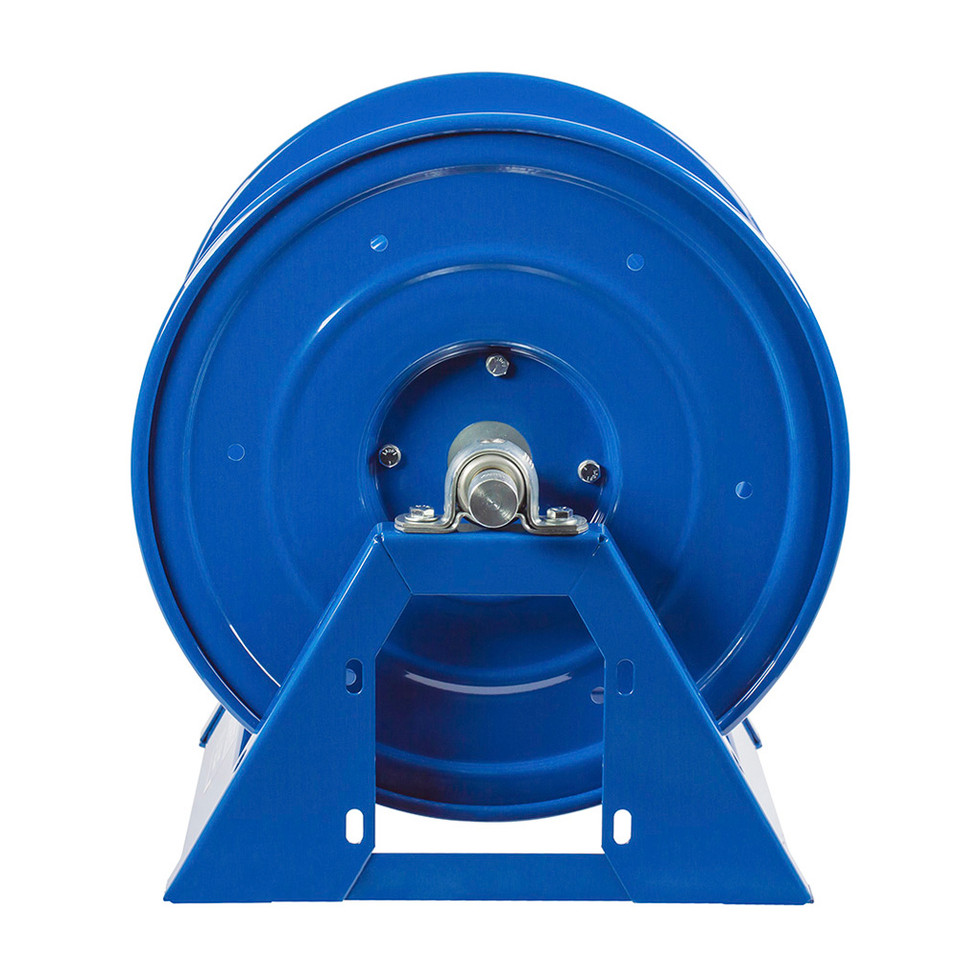

Coxreels 1125-4-325-H Hydraulic Rewind Hose Reel | 1125 Series | 1/2" Hose Diameter | 325' Hose Length | 3000 Max PSI | Less Hose

Heavy equipment and hydraulic-powered machinery that need to retract the maximum 325-foot capacity of the standard 1125 Series automatically from a single fixed reel station with no electrical circuit or compressed air supply at the mount point get consistent torque delivery across the full retraction stroke from a hydraulic motor in a way that lighter power sources cannot always match at this drum scale. The Coxreels 1125-4-325-H pairs the maximum-capacity 1125 Series drum with a hydraulic motor (a fluid-power-driven rewind drive with end-ported 9/16-18 UNF O-ring boss fittings the SAE straight-thread port standard on most mobile hydraulic circuits that taps directly into the machine's existing hydraulic system) and direct gear drive (no chain gears engage the drum directly for quiet, smooth retraction without chain stretch or lubrication intervals). One important clarification for this installation: the hydraulic retraction motor uses the machine's auxiliary hydraulic circuit as its power source. This is a completely separate fluid path from the 3,000 PSI working fluid carried in the drum hose. The motor supply circuit and the hose working pressure path share no components and operate entirely independently. The machined solid brass 90° NPT swivel, CNC-spun ribbed discs, permanently lubricated pillow block bearings, and all-welded 12-gauge steel A-frame complete the construction for the large-scale hydraulic-powered field and facility installations this reel serves.

Type: Hydraulic Motor Rewind Hose Reel | Series: 1125 | Motor Type: Hydraulic, End Ported | Motor Port: 9/16-18 UNF O-Ring Boss (ORB) | Drive: Direct Gear Drive (No Chain) | Hose I.D. (in.): 1/2 | Hose O.D. (in.): 7/8 | Hose Length (ft.): 325 | Hose Included: No | Max PSI: 3,000 | Swivel: Machined Solid Brass 90° NPT | Swivel Seals: Nitrile | Width (in.): 31.75 | Height (in.): 19.25 | Length (in.): 17.63 | Mounting Pattern M (in.): 21.44 | Mounting Pattern N (in.): 10 | Base X (in.): 23.38 | Base Y (in.): 16

Features

• Hydraulic motor with end-ported 9/16-18 UNF O-ring boss connections taps the machine's existing hydraulic auxiliary circuit for retraction power with no electrical wiring or compressed air supply required at the reel
• Direct gear drive no chain or sprocket; engages the drum directly for quiet, smooth retraction without chain slack, stretch, or lubrication requirements across the full 325-foot maximum-capacity drum
• 325-foot maximum capacity the longest single-drum reach in the standard 1125 Series for 1/2-inch ID hose; hydraulic motor's consistent torque output under load makes it well suited to the heavier retraction demands of the maximum-capacity drum
• Machined solid brass 90° full-flow NPT swivel inlet standard on 1/2" and 3/4" 1125 Series models; no need to remove the reel from its mount for seal maintenance or hose installation
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap across all 325 feet of drum capacity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, vehicle-body, or overhead installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation under the full weight of a loaded 325-foot drum
• Adjustable tension brake prevents free-wheeling during hose deployment; long-handled locking pin secures drum during transport or storage; long-lasting chip-resistant, rust-inhibiting CPC powder coat finish; 2-year manufacturer's limited warranty

Made in USA:

2 Year Warranty

Applications

• Large excavators & heavy construction equipment machines with hydraulic auxiliary circuits at the reel mount point requiring maximum 325-foot hose reach for service and fluid delivery across large equipment yards or construction sites, where no electrical or air infrastructure is available at the mounting location
• Logging & forestry large equipment large forwarders, feller bunchers, and skidders where 325 feet of hose reach covers wide cutting areas or large log yards from a single hydraulic-powered reel station, drawing from the machine's existing hydraulic remotes
• Agricultural & irrigation wide-coverage operations large tractors and hydraulic-powered service units where 325 feet of reach from a single reel covers the full width of large structures or field service areas, and hydraulic motor integration eliminates the need for a separate electrical or air supply at the reel point
• Large mobile hydraulic service units & cranes crane trucks, aerial work platforms, and hydraulic service vehicles where the reel motor integrates into the machine's hydraulic manifold or auxiliary circuit and maximum hose reach reduces the need to reposition the vehicle between service points
• Mining & large industrial maintenance equipment, hydraulic-powered mining machinery and large surface maintenance vehicles where the combination of maximum hose reach and hydraulic motor integration without electrical classified-area complexity suits the equipment architecture and work environment

FAQs

Q: This reel has a hydraulic retraction motor AND a 3,000 PSI working pressure rating. Are these the same hydraulic circuit?
A: No they are two completely separate fluid paths. The hydraulic retraction motor connects to the machine's auxiliary hydraulic circuit (typically at the machine's standard operating pressure) through the 9/16-18 UNF ORB motor ports. This is the motor supply circuit. The 3,000 PSI working pressure rating applies to the hose working fluid path the fluid that travels through the drum hose, outlet riser, and swivel to the connected tool or equipment. These two circuits share no components. When planning the installation, account for two independent hydraulic connections: one supply/return pair for the motor, and one inlet connection for the hose working fluid path.

Q: What is the difference between the 1125-4-325-H and the 1125-4-100-H?
A: The hydraulic motor and direct gear drive are identical between the two. The difference is drum capacity and physical size. The 325-foot model is 31.75 inches wide versus approximately 19.75 inches wide on the 100-foot model, with a different mounting bolt pattern (21.44 inches × 10 inches versus 9.44 inches × 10 inches). The 325-foot drum also carries a substantially heavier hose load, which increases the torque demand on the hydraulic motor at retraction startup. Confirm your machine's available auxiliary hydraulic flow and pressure against Coxreels' motor requirements before specifying the 325-foot model, since the heavier drum load requires adequate hydraulic output to retract reliably.

Q: What is the difference between the 1125-4-325-H (hydraulic motor) and the 1125-4-325-AB (#6 Gast air motor) at this capacity?
A: Both provide automatic drum retraction from a power source already present on the equipment, with no separate electrical wiring to the motor. The -H uses hydraulic fluid from the machine's auxiliary circuit through ORB fittings suited to equipment with hydraulic remotes at the reel mount point but no practical air supply. The -AB uses compressed air from your existing shop supply through a small air line to the Gast motor suited to fixed installations where shop air is available at the mount point but a hydraulic connection is not practical. On the 325-foot drum, the hydraulic motor's consistent pressure-driven torque across the full retraction stroke can be an advantage over an air motor that may see pressure variation under the heavier sustained load; however, the air motor eliminates the need for hydraulic plumbing at the reel. Choose based on which power source is already present and most practical at the installation location.

Q: What hydraulic flow rate and pressure does the retraction motor require?
A: Coxreels does not publish specific GPM or operating pressure requirements for the hydraulic rewind motor on the 1125 Series. Before installation on the 325-foot drum where the heavier drum load places greater demand on the motor supply circuit than on smaller drums contact Coxreels directly to confirm the motor's flow and pressure requirements and verify your machine's available hydraulic auxiliary output meets them reliably under full drum load conditions.

Q: Does the reel come with hose included?
A: No the 1125-4-325-H ships less hose. The drum accepts 1/2" ID / 7/8" OD hose up to 325 feet. Select hose rated for your working pressure and media (air, water, oil, or other compatible fluids at up to 3,000 PSI) and install it on the drum before use. At 325 feet, loaded hose weight adds substantially to the total reel weight factor this into the mounting structure load calculation for wall, ceiling, and vehicle-body installations.
