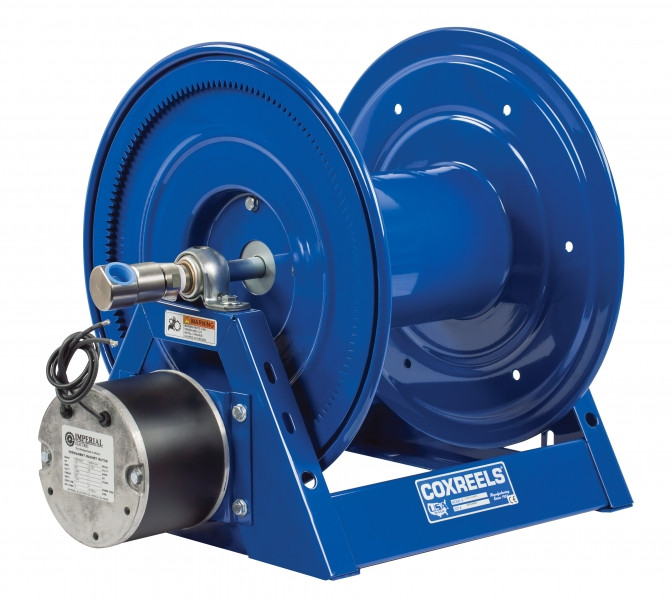

Coxreels HP1125-4-325-H Hydraulic Rewind Hose Reel | HP1125 Series | 1/2" Hose Diameter | 325' Hose Length | 5000 Max PSI | Less Hose

Large hydraulic-powered equipment carrying 5,000 PSI capable hose long-reach excavators, offshore cranes, logging machinery, and large agricultural service units that need the maximum 325-foot reach of the HP1125 Series with automatic retraction powered from the machine's own hydraulic circuit find the self-contained answer in the Coxreels HP1125-4-325-H. A hydraulic motor (a fluid-power-driven rewind drive with end-ported 9/16-18 UNF O-ring boss fittings the SAE straight-thread port standard on most mobile hydraulic circuits that taps directly into the machine's auxiliary hydraulic circuit for retraction power) with direct gear drive (no chain gears engage the drum directly for quiet, smooth retraction without chain stretch or lubrication intervals) handles automatic retraction of the maximum-capacity HP1125 drum with no electrical wiring or compressed air supply at the reel. One critical point to clarify on this installation: three hydraulic pressures may be present on the equipment simultaneously the machine's main hydraulic system, the motor supply circuit, and the 5,000 PSI working fluid in the drum hose. Only the last two are relevant to this reel, and they are completely separate paths: the hydraulic retraction motor connects to the machine's auxiliary circuit through the 9/16-18 UNF ORB motor ports; the 5,000 PSI working fluid travels through the drum hose, outlet riser, and swivel sharing no components with the motor supply. The electroless nickel plated steel swivel and AFLAS seals give the 5,000 PSI hose fluid path the material specification sustained high-pressure hydraulic, petroleum, and chemical service demands, while the all-welded 12-gauge steel A-frame, CNC-spun ribbed discs, and permanently lubricated pillow block bearings complete the construction for the large-scale hydraulic field installations this reel serves.

Type: Hydraulic Motor Rewind Hose Reel | Series: HP1125 | Motor Type: Hydraulic, End Ported | Motor Port: 9/16-18 UNF O-Ring Boss (ORB) | Drive: Direct Gear Drive (No Chain) | Hose I.D. (in.): 1/2 | Hose O.D. (in.): 7/8 | Hose Length (ft.): 325 | Hose Included: No | Max PSI: 5,000 | Max Temp (°F): 250 | Swivel: Electroless Nickel Plated Steel 90° NPT | Swivel Seals: AFLAS

Features

• Hydraulic motor with end-ported 9/16-18 UNF O-ring boss connections taps the machine's existing auxiliary hydraulic circuit for retraction power with no electrical wiring or compressed air supply required at the reel; motor supply circuit is completely independent of the 5,000 PSI hose working fluid path
• Direct gear drive no chain or sprocket; engages the drum directly for quiet, smooth retraction without chain slack, stretch, or lubrication requirements across the full 325-foot maximum-capacity drum
• 325-foot maximum capacity the longest single-drum reach in the HP1125 Series at 5,000 PSI; hydraulic motor's consistent pressure-driven torque suits the sustained retraction demand of the heaviest drum in the series
• Electroless nickel plated steel 90° full-flow NPT swivel inlet hardened for 5,000 PSI service in the hose working fluid path; greater pressure capability and corrosion resistance than the brass swivel on standard 1125 Series models
• AFLAS swivel seals fluoroelastomer compound with superior chemical and heat resistance over Nitrile; rated to 250°F and suited to hydraulic fluid, petroleum, chemical, and high-pressure process service
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap across all 325 feet of drum capacity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, vehicle-body, or overhead installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation under the full weight of a loaded 325-foot drum
• Adjustable tension brake prevents free-wheeling during hose deployment; long-handled locking pin secures drum during transport or storage; long-lasting chip-resistant, rust-inhibiting CPC powder coat finish; 2-year manufacturer's limited warranty

Made in USA:

2 Year Warranty

Applications

• Large excavators & long-reach construction equipment hydraulic-powered machines with auxiliary circuits at the reel mount point carrying 5,000 PSI hydraulic service or test hose, where 325 feet of reach covers the largest equipment yards and service areas from a single hydraulic-powered reel station
• Offshore cranes & large marine deck machinery vessels and platforms with hydraulic deck machinery where 5,000 PSI fluid lines require maximum 325-foot reach across wide deck areas and the hydraulic motor eliminates electrical dependency in classified or harsh marine environments
• Large logging & forestry equipment large forwarders, feller bunchers, and skidders with hydraulic remotes at the reel location carrying 5,000 PSI fluid lines, where 325 feet of reach covers wide cutting areas or large log yards from a single hydraulic-powered station
• Oilfield & mining large mobile equipment hydraulic-powered field service machinery carrying 5,000 PSI chemical injection or service hose where 325-foot reach from a single reel reduces equipment repositioning across large classified or non-classified field work areas, and hydraulic motor retraction avoids electrical classified-area complexity
• Large agricultural & irrigation equipment large tractors and hydraulic-powered service units with rear remotes available at the reel point, where 5,000 PSI capable hose management at 325 feet of reach suits wide field service areas and hydraulic motor integration eliminates separate electrical or air power infrastructure

FAQs

Q: This reel has a hydraulic retraction motor AND a 5,000 PSI working pressure rating are there multiple hydraulic circuits involved?
A: Two circuits on this reel, completely separate: the hydraulic retraction motor connects to the machine's auxiliary hydraulic circuit through the 9/16-18 UNF ORB motor ports this is the motor supply circuit, operating at the machine's auxiliary circuit pressure. The 5,000 PSI working pressure applies to the hose working fluid path only the fluid that travels through the drum hose, outlet riser, and swivel to the connected equipment. These two circuits share no components. On hydraulic-powered equipment running a main system and an auxiliary circuit, a third pressure may also be present the machine's main hydraulic system but this is entirely separate from both reel circuits. When planning the installation, provide two independent hydraulic connections at the reel: one supply/return pair for the motor auxiliary circuit, and one inlet connection for the hose working fluid at up to 5,000 PSI.

Q: What is the difference between the HP1125-4-325-H and the HP1125-4-100-H?
A: The hydraulic motor and direct gear drive are identical between the two. The difference is drum capacity and physical size: the 325-foot model is approximately 31.75 inches wide versus approximately 19.75 inches wide on the 100-foot model, with a different mounting bolt pattern. More critically at the 325-foot drum: the heavier hose load increases the torque demand on the hydraulic motor at retraction startup significantly beyond what the 100-foot drum requires. Before specifying the 325-foot model, confirm with Coxreels that your machine's available auxiliary hydraulic flow and pressure are sufficient to retract the maximum HP1125 drum load reliably the standard "contact Coxreels for motor GPM requirements" guidance is more consequential here than on any smaller drum in the project.

Q: What is the difference between the HP1125-4-325-H (hydraulic) and the HP1125-4-325-AB (#6 Gast air motor) at maximum HP1125 capacity?
A: Both provide automatic drum retraction from a power source already present on the equipment, eliminating the need for separate electrical wiring to the motor. The -H uses hydraulic fluid from the machine's auxiliary circuit through ORB fittings suited to equipment with hydraulic remotes at the reel point and no practical compressed air supply. The -AB uses compressed air from your existing shop supply through a small air line to the Gast motor suited to fixed installations where shop air is available and a hydraulic connection is not desired. On the maximum 325-foot HP1125 drum at 5,000 PSI, both must be confirmed against available power source capacity before specification: the -H requires sufficient auxiliary hydraulic GPM and pressure for the heavy drum load; the -AB requires stable compressed air pressure under the heavy Gast motor startup load. The hydraulic motor's consistent pressure-driven torque can be an advantage on the heaviest drum in the series; the air motor eliminates hydraulic plumbing complexity at the reel. Choose based on which power source is already present and most practically available at the exact installation point.

Q: What hydraulic flow rate and pressure does the retraction motor require on the 325-foot drum?
A: Coxreels does not publish specific GPM or operating pressure requirements for the hydraulic rewind motor on any HP1125 Series drum. On the 325-foot drum the heaviest load in the HP1125 Series the motor supply circuit demand is greater than on shorter drums. Contact Coxreels directly before specifying this reel to confirm the motor's flow and pressure requirements and verify your machine's available auxiliary hydraulic output at full load meets them reliably. This is the most important pre-installation confirmation for this SKU.

Q: Does the reel come with hose included?
A: No the HP1125-4-325-H ships less hose. The drum accepts 1/2" ID / 7/8" OD hose up to 325 feet. Coxreels recommends SAE 100R16 wire braid hose for HP1125 Series reels rated for hydraulic and high-pressure oil service at up to 5,000 PSI and 250°F. Use assemblies with fittings rated and crimped for high-pressure service. At 325 feet, loaded hose weight adds substantially to the total reel weight factor this into the mounting structure load calculation and note that the heavier hose load increases hydraulic motor demand at retraction startup.
