Coxreels 1125-4-325-EF Electric 24V DC 1/3 HP Motor Rewind Hose Reel | 1125 Series | 1/2" Hose Diameter | 325' Hose Length | 3000 Max PSI | Less Hose

Large 24-volt commercial vehicles and industrial facilities with 24V DC infrastructure that need the maximum hose reach of the standard 1125 Series 325 feet of 1/2-inch hose from a single automatic reel station in a non-classified environment where the lighter 1/3 HP motor draw and lower cost of the -EF variant suit the installation's duty cycle and electrical capacity. The Coxreels 1125-4-325-EF pairs the maximum-capacity 1125 Series drum with a 24V DC, 1/3 HP reversible motor (a non-explosion-proof direct-current rewind drive with powered operation in both pay-out and retraction directions, connecting to a standard 24V vehicle or equipment battery system) and direct gear drive (no chain gears engage the drum directly for quiet, smooth retraction without chain stretch or lubrication intervals). At 3,000 PSI working pressure across 325 feet of 1/2-inch ID hose, the 1125-4-325-EF is suited to lower-cycle fixed installations and vehicle-mount applications where retraction frequency is moderate, hose routing is straightforward with minimal friction, and the 24V system has sufficient capacity for the 325-foot drum's startup load. For high-cycle production use or installations with significant hose routing friction on the maximum-capacity drum, the 1/2 HP -EB variant provides the additional torque margin the heavier duty cycle demands. The machined solid brass 90° NPT swivel, CNC-spun ribbed discs, permanently lubricated pillow block bearings, and the all-welded 12-gauge steel A-frame bring full 1125 Series production construction to the maximum-reach 24V 1/3 HP configuration.

Type: Electric Motor Rewind Hose Reel | Series: 1125 | Motor Type: 24V DC, 1/3 HP, Non-Explosion Proof, Reversible | Drive: Direct Gear Drive (No Chain) | Hose I.D. (in.): 1/2 | Hose O.D. (in.): 7/8 | Hose Length (ft.): 325 | Hose Included: No | Max PSI: 3,000 | Swivel: Machined Solid Brass 90° NPT | Swivel Seals: Nitrile | Width (in.): 31.75 | Height (in.): 19.25 | Length (in.): 17.63 | Mounting Pattern M (in.): 21.44 | Mounting Pattern N (in.): 10 | Base X (in.): 23.38 | Base Y (in.): 16

Features

• 24V DC, 1/3 HP non-explosion-proof reversible motor with direct gear drive connects directly to 24V vehicle or equipment battery systems; no AC outlet or compressed air supply required at the reel
• Reversible motor operation powered control in both pay-out and retraction directions, enabling remote deployment and retrieval from a cab or service body switch
• Direct gear drive no chain or sprocket; engages the drum directly for quiet, smooth retraction without chain slack, stretch, or lubrication requirements across the full 325-foot capacity
• 325-foot maximum capacity the longest single-drum reach in the standard 1125 Series for 1/2-inch ID hose, suited to lower-cycle installations where 325 feet of reach is required and the 1/3 HP motor draw fits the vehicle's electrical capacity and retraction duty cycle

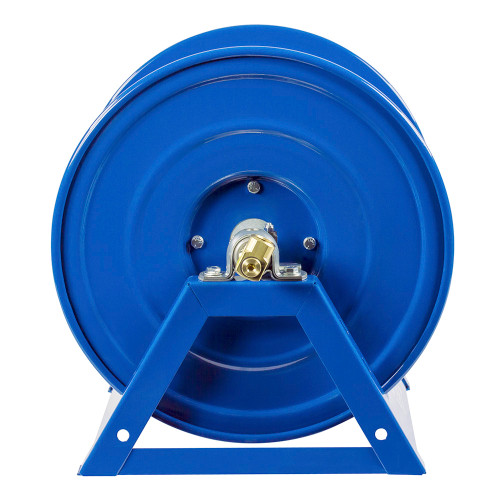

• Machined solid brass 90° full-flow NPT swivel inlet standard on 1/2" and 3/4" 1125 Series models; no need to remove the reel from its mount for seal maintenance or hose installation
• Exclusive low-profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap across all 325 feet of drum capacity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety
• Sturdy one-piece, all CNC robotically welded 12-gauge steel A-frame base not bolted for superior reel structure; mounting pattern in base for wall, vehicle-body, or ceiling installation
• Permanently lubricated, self-aligning pillow block bearings for trouble-free, smooth drum rotation under the full weight of a loaded 325-foot drum
• Adjustable tension brake prevents free-wheeling during hose deployment; long-handled locking pin secures drum during transport or storage; long-lasting chip-resistant, rust-inhibiting CPC powder coat finish; 2-year manufacturer's limited warranty

Made in USA:

2 Year Warranty

Applications

• Large commercial vehicle & transit fleet lower-cycle operations extended-length service vehicles and transit maintenance facilities on 24V systems where 325 feet of reach is required but retraction frequency is moderate and the lighter 1/3 HP motor draw suits the vehicle's electrical budget
• Large agricultural & rural facilities 24V tractors and service units where 325 feet of hose reach covers the full width of large equipment sheds or field service areas and retraction frequency per shift is low enough that the 1/3 HP motor handles the drum load without strain
• Fixed plant & facility installations with 24V DC infrastructure lower cycle large-bay maintenance stations and warehouse MRO points running 24V DC power where 325 feet of capacity is required from a single ceiling or wall mount and retraction occurs infrequently enough to suit the 1/3 HP motor
• Municipal & utility fleet large-bay moderate duty bus depots and utility maintenance facilities on 24V systems where a single 325-foot reel covers the full bay length and the combined retraction duty cycle across the shift is within the 1/3 HP motor's capability
• Heavy construction equipment service lower-frequency use 24V service vehicles and field maintenance units where 325 feet of maximum reach is the primary requirement and the retraction frequency per shift is moderate rather than continuous-production

FAQs

Q: Is the 1/3 HP motor adequate for the 325-foot maximum-capacity drum?
A: For the right installation profile yes. The 1/3 HP motor is adequate on the 325-foot drum when the mounting is straightforward (ceiling drop or wall mount with minimal hose routing friction), the retraction frequency is moderate (not continuous production cycling), and the 24V battery system has sufficient capacity to handle the heavier startup current of the maximum-capacity drum without voltage drop. Where any of these conditions are not met high retraction frequency, significant routing friction through a service body bulkhead, or a battery system at the edge of its capacity the 1/2 HP -EB provides the additional torque margin that the heavier drum load demands. When in doubt at this drum size, the -EB is the safer choice.

Q: What is the difference between the 1125-4-325-EF and the 1125-4-325-EB?
A: Both are 24V DC reversible motors on the maximum-capacity 325-foot drum, but the -EF is 1/3 HP and the -EB is 1/2 HP. On the 325-foot drum, this difference matters more than on smaller drums the heavier startup inertia of a fully loaded 325-foot drum puts more demand on the motor at the beginning of every retraction cycle. The 1/3 HP -EF is the appropriate choice for lower-cycle installations with straightforward mounting; the 1/2 HP -EB is the appropriate choice for high-cycle production use, significant routing friction, or where the 325-foot drum load is consistently at maximum. If your installation falls in a gray area, choose the -EB.

Q: What is the difference between the 1125-4-325-EF and the 1125-4-100-EF?
A: The motor is identical 24V DC, 1/3 HP, non-explosion-proof, reversible. The difference is drum capacity and physical size. The 325-foot model is 31.75 inches wide versus approximately 19.75 inches wide on the 100-foot model, with a different mounting bolt pattern (21.44 inches × 10 inches versus 9.44 inches × 10 inches). The heavier drum load at 325 feet also means the motor operates closer to its output ceiling on every retraction the use case guidance above about retraction frequency and routing friction applies more critically to the 325-foot model than to the 100-foot model, where the 1/3 HP motor has more headroom above the drum load.

Q: What electrical connection does the 24V DC motor require?
A: The motor connects to a 24V DC power source typically a vehicle battery system, auxiliary battery, or DC power supply. Coxreels does not publish the exact amperage draw for this motor. On the 325-foot drum, confirm that the battery system can sustain the heavier startup current of the maximum-capacity drum without voltage drop that could affect motor performance, and size circuit fusing and wiring gauge with a qualified electrician for both peak startup current and sustained retraction operation.

Q: Does the reel come with hose included?
A: No the 1125-4-325-EF ships less hose. The drum accepts 1/2" ID / 7/8" OD hose up to 325 feet. Select hose rated for your working pressure and media (air, water, oil, or other compatible fluids at up to 3,000 PSI) and install it on the drum before use. At 325 feet, loaded hose weight adds substantially to the total reel weight factor this into the mounting structure load calculation and note that a fully loaded drum increases cranking demand compared to a partially loaded one.
