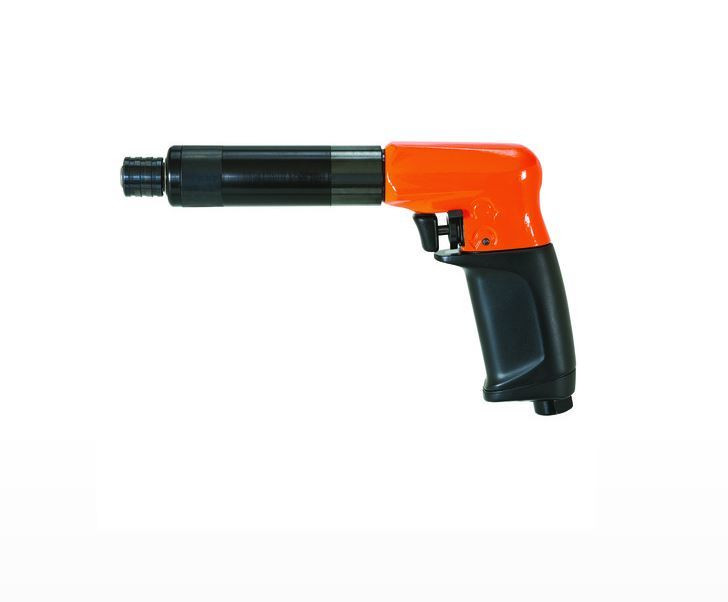

Cleco 19PTA15Q P-Handle Pneumatic Screwdriver | 19 Series | Trigger Start | 260 RPM | 3.7 - 10.8 (ft-lbs) Torque Range

For assembly stations that need higher torque in a pistol-style air screwdriver, the Cleco 19PTA15Q P-Handle Pneumatic Screwdriver delivers a 260 RPM free speed with a 3.7 - 10.8 ft-lbs torque range. The slower speed gives the operator better control at the upper end of the 19 Series torque range, making this model well-suited for prevailing torque fasteners, threaded inserts, brackets, covers, and assemblies where fastener consistency matters more than maximum run-down speed.

The 19 Series P-handle configuration lets the operator apply forward force during fastening, while the trigger start throttle provides familiar, deliberate start control. Its Clecomatic shut-off clutch stops the tool when the selected torque is reached, helping improve repeatability compared with basic clutch or manually controlled tools. A 1/4" hex quick-change drive accepts common screwdriver bits, and the included side handle gives added control when working near the top of the tool’s torque range.

Type: Pneumatic Screwdriver | Brand: Cleco | Model: 19PTA15Q | Series: 19 Series | Handle Style: P-Handle / Pistol Grip | Start Type: Trigger Start | Clutch Type: Clecomatic Shut-Off | Drive Size: 1/4" Hex Quick Change | Free Speed: 260 RPM | Torque Range: 3.7 - 10.8 ft-lbs | Torque Range: 45 - 130 in-lbs | Torque Range: 5.1 - 14.7 Nm | Air Inlet: 1/4" NPT | Min. Hose Size: 3/8" | Air Pressure: 90 PSI | Air Consumption: 11 SCFM | Overall Length: 9.7" | Tool Weight: 1.91 lb | Operation: Reversible

Features:

• Durable Clecomatic clutch supports torque repeatability and longer calibration cycles in controlled fastening work.
• P-handle shape helps operators apply forward pressure when driving prevailing torque fasteners.
• Trigger start control gives a familiar pistol-grip feel for production, repair, and bench assembly work.
• Reverse lever can be positioned for left-handed or right-handed operators.
• 1/4" hex quick change drive allows fast bit changes when switching between screw types.
• Included side handle provides added control for higher torque fastening tasks.
• All torque springs required to meet the indicated torque specification are included.

Applications:

• High-volume assembly: driving screws and threaded fasteners where torque repeatability is required across repeated cycles.
• Aerospace and precision manufacturing: controlled fastening on brackets, access panels, and assemblies that require consistent torque output.
• Automotive and heavy truck component assembly: fastening interior parts, covers, light brackets, housings, and service-access hardware.
• Appliance and equipment production: installing higher-torque screws into sheet metal, molded parts, and subassemblies.
• Maintenance and repair benches: removing and reinstalling fasteners during inspection, rework, and component rebuild tasks.

FAQs:

• Q: What makes the 19PTA15Q different from faster 19 Series models?
  A: The 19PTA15Q runs at 260 RPM and covers the higher 3.7 - 10.8 ft-lbs torque range. That makes it a better fit for slower, more controlled fastening at higher torque levels.
• Q: What does the Clecomatic shut-off clutch do?
  A: The Clecomatic shut-off clutch stops the screwdriver when the set torque is reached. This helps reduce over-tightening and supports more consistent fastening from part to part.
• Q: Does the Cleco 19PTA15Q include a side handle?
  A: Yes. The 19PTA15Q includes a side handle, which helps the operator control the tool during higher torque fastening applications.
• Q: What bits does this screwdriver use?
  A: This model uses a 1/4" hex quick change drive. Use compatible 1/4" hex screwdriver bits matched to the fastener head style and application.
• Q: What air setup is required for this tool?
  A: Tool performance is rated at 90 PSI. Use a 3/8" minimum hose size and an air supply capable of supporting the listed 11 SCFM air consumption.
