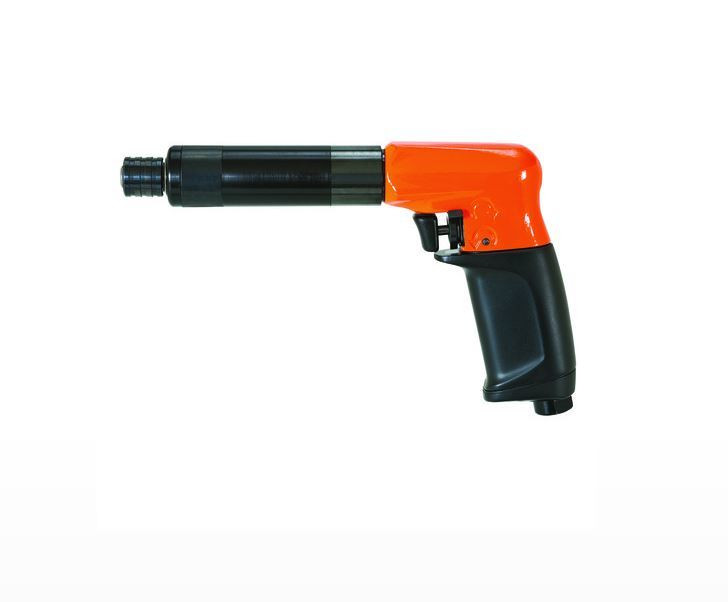

Cleco 19PTA05Q P-Handle Pneumatic Screwdriver | 19 Series | Trigger Start | 660 RPM | 0.8 - 3.7 (ft-lbs) Torque Range

Built for controlled fastening in light manufacturing, appliance assembly, electronics work, and general production benches, the Cleco 19PTA05Q P-handle pneumatic screwdriver combines a trigger start throttle with a 660 RPM free speed for steady screw run-down without the higher speed of lighter-torque models. Its 0.8 - 3.7 ft-lbs torque range gives assemblers practical control for repeated fastening on small machine screws, brackets, panels, and component assemblies where consistent torque matters more than raw speed.

The 19 Series uses Cleco’s Clecomatic clutch, a shut-off clutch system that stops the tool when the preset torque is reached to improve repeatability and reduce fastener or workpiece damage. The P-handle configuration gives the operator a centered grip for bench and fixture work, while the reversible design supports both installation and fastener removal during assembly, service, or rework.

Type: P-Handle Pneumatic Screwdriver | Series: Cleco 19 Series | Model: 19PTA05Q | Start Type: Trigger Start | Clutch Type: Clecomatic Shut-Off Clutch | Drive Size: 1/4" Hex Quick Change | Free Speed: 660 RPM | Torque Range: 0.8 - 3.7 ft-lbs / 10 - 45 in-lbs / 1.1 - 5.1 Nm | Length: 8.4" | Weight: 1.50 lbs | Air Consumption: 11 SCFM | Air Inlet: 1/4" | Minimum Hose I.D.: 3/8" | Operating Pressure: 90 PSI

Features:

• Clecomatic shut-off clutch helps deliver repeatable torque by stopping the tool when the selected torque setting is reached.
• Trigger start throttle gives the operator familiar fingertip control for paced assembly and rework tasks.
• P-handle configuration supports comfortable gripping in bench, fixture, and production-line fastening positions.
• 660 RPM free speed provides controlled run-down for small fasteners without excessive speed on delicate assemblies.
• 1/4" hex quick-change drive accepts common screwdriver bits used in assembly and maintenance fastening.
• Reversible operation allows the same tool to install and remove fasteners during assembly, repair, and adjustment work.
• Standard equipment includes operating instructions and service manual, suspension bail, and torque springs required to meet the indicated torque range.

Applications:

• Electronics and light assembly — fastening covers, brackets, housings, and small machine screws where controlled torque helps protect components.
• Appliance and equipment production — repeat screwdriving on panels, frames, guards, and subassemblies at a fixed torque setting.
• Automotive interior and trim work — installing light fasteners in dashboards, brackets, modules, and non-structural assemblies.
• Industrial maintenance and rework stations — removing and reinstalling screws during inspection, repair, and component replacement.
• Bench and fixture operations — supporting repeated fastening tasks where a P-handle grip and suspension bail can help organize the workstation.

FAQs:

• Q: What type of clutch does the Cleco 19PTA05Q use?
  A: The 19PTA05Q uses a Clecomatic shut-off clutch. A shut-off clutch stops the screwdriver when the preset torque is reached, making it better suited for repeat assembly than a basic stall or cushion clutch tool.
• Q: What bit size does this screwdriver accept?
  A: This model uses a 1/4" hex quick-change drive, which fits standard 1/4" hex screwdriver bits used for production fastening and general assembly work.
• Q: Is 660 RPM fast enough for production assembly?
  A: Yes, 660 RPM is a controlled fastening speed for small-to-medium screw applications. It is slower than high-speed light-torque models, but it gives better control when working in the 0.8 - 3.7 ft-lbs torque range.
• Q: Can this tool remove screws as well as install them?
  A: Yes. The 19PTA05Q is reversible, so it can be used for fastener removal during repair, rework, and adjustment tasks.
• Q: What air supply is required?
  A: Cleco rates this tool for 90 PSI operation. Use a clean, regulated air supply with a 3/8" minimum hose I.D. and a properly sized FRL to help maintain consistent performance.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.

Need help selecting the correct Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
