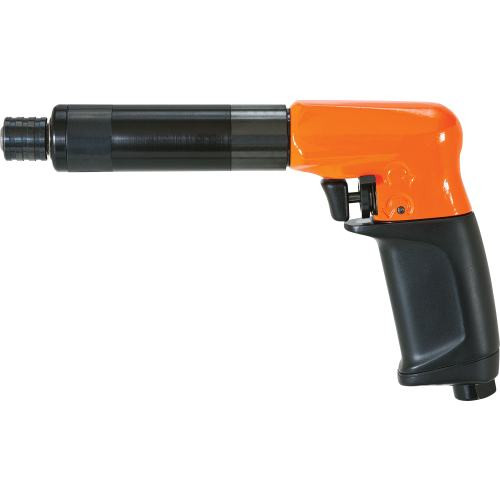

Cleco 19PTA04Q P-Handle Pneumatic Screwdriver | 19 Series | Trigger Start | 1,100 RPM | 0.8 - 3.3 (ft-lbs) Torque Range

Built for light assembly jobs that need more torque than high-speed, low-torque screwdrivers can provide, the Cleco 19PTA04Q P-Handle Pneumatic Screwdriver delivers controlled fastening in a compact trigger-start layout. Its 0.8 - 3.3 ft-lbs torque range supports small-to-medium production screws, threaded inserts, covers, brackets, and component fasteners, while the 1,100 RPM free speed provides a measured rundown rate for applications where torque capacity is more important than maximum speed.

Part of Cleco’s 19 Series, the 19PTA04Q uses a Clecomatic clutch, a torque shut-off clutch that stops the tool once the preset torque is reached. That shut-off action helps reduce over-tightening, stripped fasteners, and operator-to-operator variation in production fastening. The P-handle trigger-start configuration gives operators a natural way to apply forward force during rundown, especially when driving prevailing torque fasteners or working at bench-mounted assembly stations.

Type: P-Handle Pneumatic Screwdriver | Brand: Cleco | Model: 19PTA04Q | Series: 19 Series | Start Type: Trigger Start | Clutch Type: Clecomatic Clutch | Drive: 1/4" Hex Quick Change | Torque Range: 0.8 - 3.3 ft-lbs / 10 - 40 in-lbs / 1.1 - 4.5 Nm | Free Speed: 1,100 RPM | Air Consumption: 11 SCFM | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 3/8" | Length: 8.0" | Weight: 1.41 lbs

Features:

• Clecomatic clutch provides torque shut-off control for repeatable fastening in production assembly.
• 1,100 RPM free speed supports controlled rundown on applications that require higher torque than faster 19 Series variants.
• P-handle configuration helps operators apply forward pressure when seating prevailing torque fasteners.
• Trigger start provides familiar pistol-style activation for line, bench, and fixture-based workstations.
• 1/4" hex quick-change drive allows fast screwdriver bit changes during repeated fastening tasks.
• Reverse lever can be rotated to accommodate left- or right-handed operation.
• Easy-access torque verification port supports routine torque checks and process control.
• Supplied with operating instructions, service manual, suspension bail, and torque springs required to meet the indicated torque specification.

Applications:

• Appliance and equipment assembly — fastening covers, panels, housings, brackets, and light structural components where shut-off torque helps maintain consistency.
• Automotive component production — installing trim hardware, module fasteners, light brackets, clips, and interior assembly screws.
• Aerospace and precision manufacturing — controlled screwdriving on small assemblies where repeatability and torque verification support production quality.
• Electronics and electromechanical assembly — driving screws into inserts, frames, and enclosures that require more torque than the lowest-range tools provide.
• Maintenance and repair benches — removing and reinstalling small fasteners with reversible operation and quick bit changes.

FAQs:

• Q: What type of fastening work is the Cleco 19PTA04Q used for?
  A: The 19PTA04Q is used for repetitive low-to-medium torque screwdriving in production assembly. Its 0.8 - 3.3 ft-lbs torque range makes it suitable for small fasteners that need more torque than the faster, lower-range 19 Series models provide.
• Q: What does the Clecomatic clutch do?
  A: The Clecomatic clutch shuts the tool off when the preset torque is reached. This helps improve fastening repeatability and reduces the chance of over-tightening or stripping screws.
• Q: How does the 19PTA04Q compare with the 1,900 RPM 19PTA03Q?
  A: The 19PTA04Q runs slower at 1,100 RPM but provides a higher torque range. Choose it when the fastener requires more seating torque and the application does not require the fastest possible rundown speed.
• Q: What bits fit this screwdriver?
  A: This model uses a 1/4" hex quick-change drive, so it accepts compatible 1/4" hex screwdriver bits used in production screwdriving applications.
• Q: What air supply should be used with this tool?
  A: Use a compressed air system that can support the listed 11 SCFM air consumption, a 1/4" NPT inlet connection, and a 3/8" minimum hose I.D. Clean, regulated, lubricated air helps the screwdriver maintain consistent performance.
