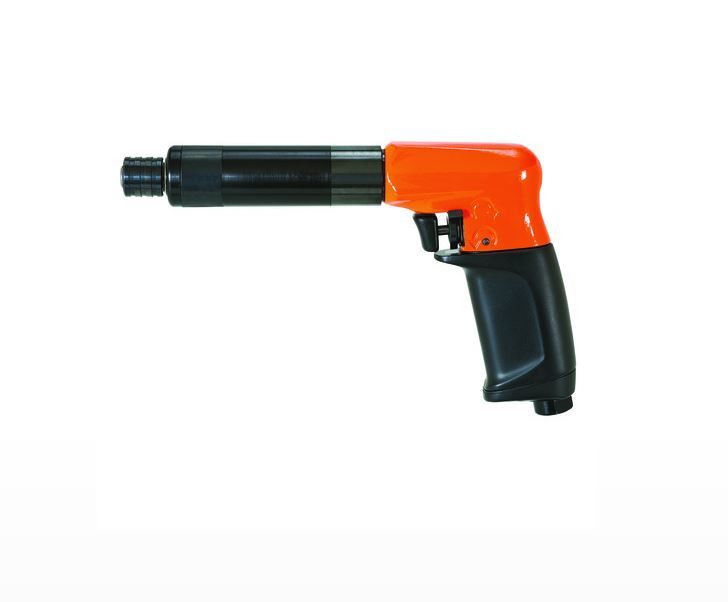

Cleco 19PTA09Q P-Handle Pneumatic Screwdriver | 19 Series | Trigger Start | 470 RPM | 1.2 - 6.5 (ft-lbs) Torque Range

When assembly work calls for controlled fastening in a pistol-style tool, the Cleco 19PTA09Q P-Handle Pneumatic Screwdriver delivers a 470 RPM free speed and a 1.2 - 6.5 ft-lbs torque range for repeatable screw and fastener installation. Its Clecomatic shut-off clutch helps stop the tool when the set torque is reached, which supports more consistent fastening than manual clutch control in production, repair, and bench assembly work.

The 19 Series P-handle configuration gives the operator a firm pistol-style grip with added leverage for prevailing torque fasteners, while the trigger start throttle keeps start control familiar for technicians moving between different air tools. A 1/4" hex quick-change drive accepts common insert bits, and the reversible operation allows the same tool to install and remove fasteners during assembly, inspection, and rework tasks.

Type: Pneumatic Screwdriver | Brand: Cleco | Model: 19PTA09Q | Series: 19 Series | Handle Style: P-Handle / Pistol Grip | Start Type: Trigger Start | Clutch Type: Clecomatic Shut-Off | Drive Size: 1/4" Hex Quick Change | Free Speed: 470 RPM | Torque Range: 1.2 - 6.5 ft-lbs | Torque Range: 15 - 79 in-lbs | Air Inlet: 1/4" NPT | Min. Hose Size: 3/8" | Air Pressure: 90 PSI | Air Consumption: 11 CFM | Overall Length: 9-3/4" | Tool Weight: 1.6 lb | Operation: Reversible | Vibration Level: 0.6 m/s²

Features:

• Durable Clecomatic clutch supports torque repeatability and longer calibration intervals in fastening work.
• P-handle shape allows force to be applied more comfortably when driving prevailing torque fasteners.
• Trigger start throttle gives operators familiar start control for bench, line, and repair-station use.
• 1/4" hex quick change drive works with common screwdriver bits for faster bit swaps during mixed assembly tasks.
• Reversible operation allows fastener installation and removal without changing tools.
• Torque springs are included to meet the indicated torque specification.
• Supplied with operating instructions, service manual, and suspension bail according to manufacturer's product information.

Applications:

• Production assembly: installing screws and threaded fasteners where repeatable shut-off torque is required.
• Aerospace and precision manufacturing: controlled fastening on assemblies where consistent torque output helps reduce rework.
• Appliance and equipment assembly: driving medium-torque fasteners on panels, brackets, covers, and subassemblies.
• Automotive and heavy truck component work: fastening trim, interior parts, light brackets, and service-access hardware.
• Maintenance and repair benches: removing and reinstalling screws during inspection, rebuild, and tool-room service tasks.

FAQs:

• Q: What does a shut-off clutch do on this Cleco screwdriver?
  A: A shut-off clutch stops the tool when the selected torque is reached. This helps improve fastening consistency compared with tools that rely only on operator feel.
• Q: What bits fit the Cleco 19PTA09Q?
  A: This model uses a 1/4" hex quick change drive, so it accepts compatible 1/4" hex screwdriver bits matched to the fastener style.
• Q: Is the 19PTA09Q reversible?
  A: Yes. The tool is reversible, allowing operators to install and remove fasteners with the same screwdriver.
• Q: What air supply is required?
  A: Tool performance is rated at 90 PSI. Use a properly sized air line with at least a 3/8" minimum hose size and make sure the air system can support the listed 11 CFM consumption.
• Q: Is this screwdriver suited for high-volume assembly?
  A: Yes, the 19 Series P-handle trigger-start models are intended for assembly work where repeatable torque, reversible operation, and controlled handling are important.
