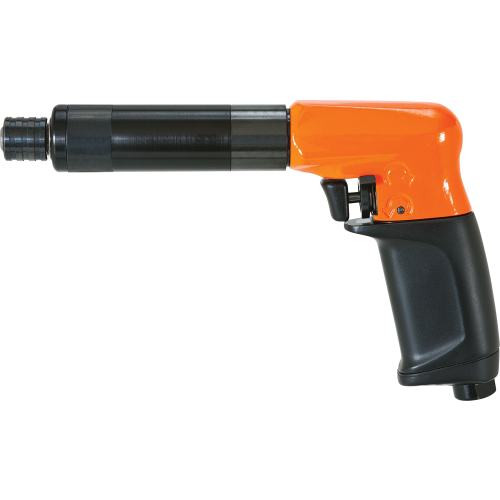

Cleco 19PTA03Q P-Handle Pneumatic Screwdriver | 19 Series | Trigger Start | 1,900 RPM | 0.4 - 2.1 (ft-lbs) Torque Range

Built for low-torque production fastening where speed and repeatability both matter, the Cleco 19PTA03Q P-Handle Pneumatic Screwdriver gives assembly operators controlled rundown in a compact trigger-start tool. Its 0.4 - 2.1 ft-lbs torque range supports small screws and light threaded fasteners that need consistent clamp load, while the 1,900 RPM free speed balances fast cycle times with added torque capacity compared with higher-speed models in the same family.

Part of Cleco’s 19 Series, the 19PTA03Q uses a Clecomatic clutch, a torque shut-off clutch that stops the tool when the preset torque is reached. That shut-off action helps reduce stripped screws, over-tightening, and variation between operators. The P-handle trigger-start configuration lets the operator apply forward pressure during rundown, making it useful for prevailing torque fasteners and repetitive bench or line assembly work.

Type: P-Handle Pneumatic Screwdriver | Brand: Cleco | Model: 19PTA03Q | Series: 19 Series | Start Type: Trigger Start | Clutch Type: Clecomatic Clutch | Drive: 1/4" Hex Quick Change | Torque Range: 0.4 - 2.1 ft-lbs / 5 - 25 in-lbs / 0.6 - 2.8 Nm | Free Speed: 1,900 RPM | Air Consumption: 11 SCFM | Air Inlet: 1/4" NPT | Minimum Hose I.D.: 3/8" | Length: 8.0" | Weight: 1.41 lbs

Features:

• Clecomatic clutch provides torque shut-off control for repeatable screwdriving in production assembly.
• 1,900 RPM free speed supports efficient rundown while providing a higher torque range than faster low-torque variants.
• P-handle configuration helps operators apply forward pressure when driving prevailing torque fasteners.
• Trigger start provides familiar pistol-style activation for bench, line, and fixture-based fastening stations.
• 1/4" hex quick-change drive allows fast screwdriver bit changes during repeated assembly tasks.
• Reverse lever can be rotated to accommodate left- or right-handed operation.
• Easy-access torque verification port supports routine torque checks and fastening process control.
• Supplied with operating instructions, service manual, suspension bail, and torque springs required to meet the indicated torque specification.

Applications:

• Electronics and appliance assembly — fastening housings, brackets, panels, and threaded inserts where controlled shut-off helps protect small components.
• Automotive interior and component work — installing trim, covers, light brackets, clips, and low-torque fasteners on production or repair benches.
• Aerospace and precision manufacturing — repetitive screwdriving on light assemblies where torque verification and repeatability are important.
• General light manufacturing — bench-mounted or line-based fastening on fixtures, subassemblies, and small mechanical products.
• MRO and repair benches — removing and reinstalling small fasteners with reversible operation and quick bit changes.

FAQs:

• Q: What is the Cleco 19PTA03Q used for?
  A: The 19PTA03Q is used for low-torque production screwdriving on small fasteners. Its 0.4 - 2.1 ft-lbs torque range makes it better suited to light assembly work than high-torque bolting.
• Q: What does the Clecomatic clutch do?
  A: The Clecomatic clutch shuts the tool off once the preset torque is reached. This helps improve fastening consistency and reduces the risk of over-tightening screws.
• Q: How does the 19PTA03Q differ from a faster 2,800 RPM model?
  A: The 19PTA03Q runs at 1,900 RPM and offers a higher maximum torque range. It is a better fit when the fastener needs more torque than the faster low-torque model can provide.
• Q: What screwdriver bits fit this tool?
  A: This model uses a 1/4" hex quick-change drive, so it accepts compatible 1/4" hex screwdriver bits commonly used in assembly operations.
• Q: What air supply is required?
  A: Use a compressed air system that can support the listed 11 SCFM air consumption, a 1/4" NPT inlet connection, and a 3/8" minimum hose I.D. A properly sized FRL helps maintain clean, regulated, lubricated air to the tool.

Looking for more information about Cleco Screwdriver? Click here to view the Catalog.

Need help selecting the correct Cleco Screwdrivers for your application? Please call (800) 608-5210 or email info@intlairtool.com
