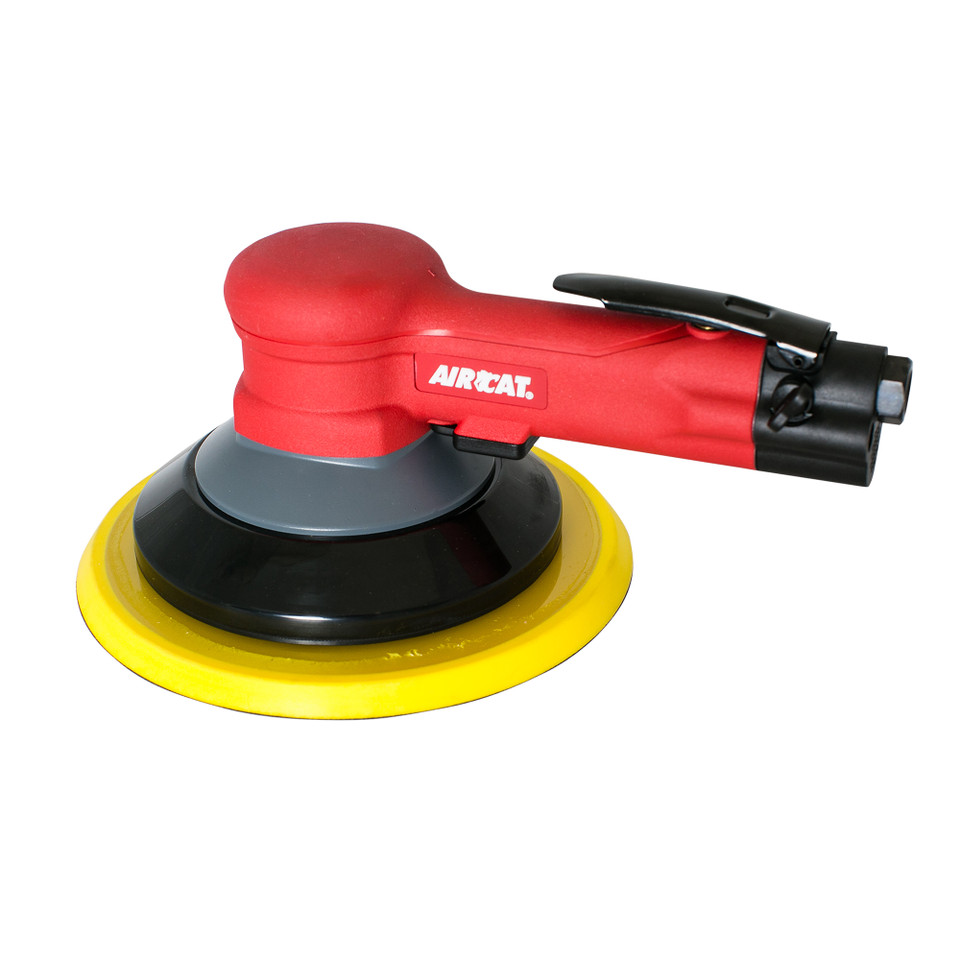

Built for controlled surface preparation, finishing, and polishing applications, the AIRCAT 6700-8G Non Vac Geared Planetary Motion Sander delivers 900 RPM operating speed with a large 8" pad size for precision sanding and finishing across automotive, fabrication, and maintenance surfaces. The 3/16" orbit combined with geared planetary motion provides a consistent sanding pattern designed for blending, surface refinement, and finishing applications where controlled pad movement is required.
The AIRCAT 6700-8G features a non-vacuum configuration with hook and loop pad attachment for efficient abrasive changes during sanding operations. Its geared planetary motion design provides controlled, slower-speed sanding compared with standard orbital sanders, making it suited for applications requiring consistent finish quality across larger work areas.
Type: Non Vac Geared Planetary Motion Sander | Model: 6700-8G | Pad Size: 8" | Free Speed: 900 RPM | Orbit Diameter: 3/16" | Pad Attachment: Hook & Loop
Features:
- Geared planetary motion sanding system provides controlled pad movement for consistent finishing and surface preparation applications.
- 900 RPM operating speed supports slower, controlled sanding operations where precision and finish quality are important.
- 8" pad size provides expanded surface coverage for larger sanding areas.
- 3/16" orbit creates a consistent sanding pattern for blending and surface refinement tasks.
- Hook and loop pad attachment allows quick changes between compatible sanding discs.
- Non-vacuum configuration provides a straightforward sanding solution for applications without integrated dust extraction requirements.
Applications:
- Automotive refinishing: supporting paint preparation, blending, and finishing operations across larger vehicle surfaces.
- Body shops and restoration facilities: handling controlled sanding tasks where consistent surface results are required.
- Metal fabrication: preparing and finishing larger components before coating or final assembly.
- Industrial maintenance and MRO: performing surface preparation on equipment parts and assemblies.
- Professional workshop finishing: providing controlled pneumatic sanding capability for repair and finishing applications.
FAQs:
- Q: What is a geared planetary motion sander?
A: A geared planetary motion sander uses a gear-driven pad movement pattern designed to provide controlled sanding action for finishing and surface preparation applications. - Q: What is the advantage of an 8" sanding pad?
A: An 8" pad provides a larger sanding area compared with smaller pad sizes, helping cover broader surfaces during finishing and preparation work. - Q: What abrasives fit the AIRCAT 6700-8G?
A: The tool uses an 8" pad with hook and loop attachment. Use compatible 8" hook and loop sanding discs for the intended application. - Q: Why choose a 900 RPM geared planetary motion sander?
A: The controlled operating speed and geared pad motion are suited for applications where consistent sanding results and surface finish are important.
| SKU | Description | Pad Size (in) |
Pad Thread (in) |
Orbit (in) |
Pad Type |
Pad Holes |
Free Speed (RPM) |
Weight (lbs) |
Length W/Pad Fitted (in) |
Width W/Pad Fitted (in) |
Height W/Pad Fitted (in) |
Noise Level d(B)A |
Vibration m/sec2 |
Average Air Cons. (CFM) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6700-1-332 | Non Vac Nib Palm Sander | 1 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 8,000 | 1.7 | 6.7 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336 | Non Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 1.8 | 5.5 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336CV | Central Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 1.8 | 7.2 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336 | Non Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.7 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336CV | Central Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6G | Non Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.4 | 10.2 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-6GCV | Central Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 900 | 3.4 | 11.0 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8G | Non Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.5 | 11.2 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8GCV | Central Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | 8 | 900 | 3.5 | 12.0 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
Looking for more information about the Aircat Pneumatic Planetary Motion Sanders? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
