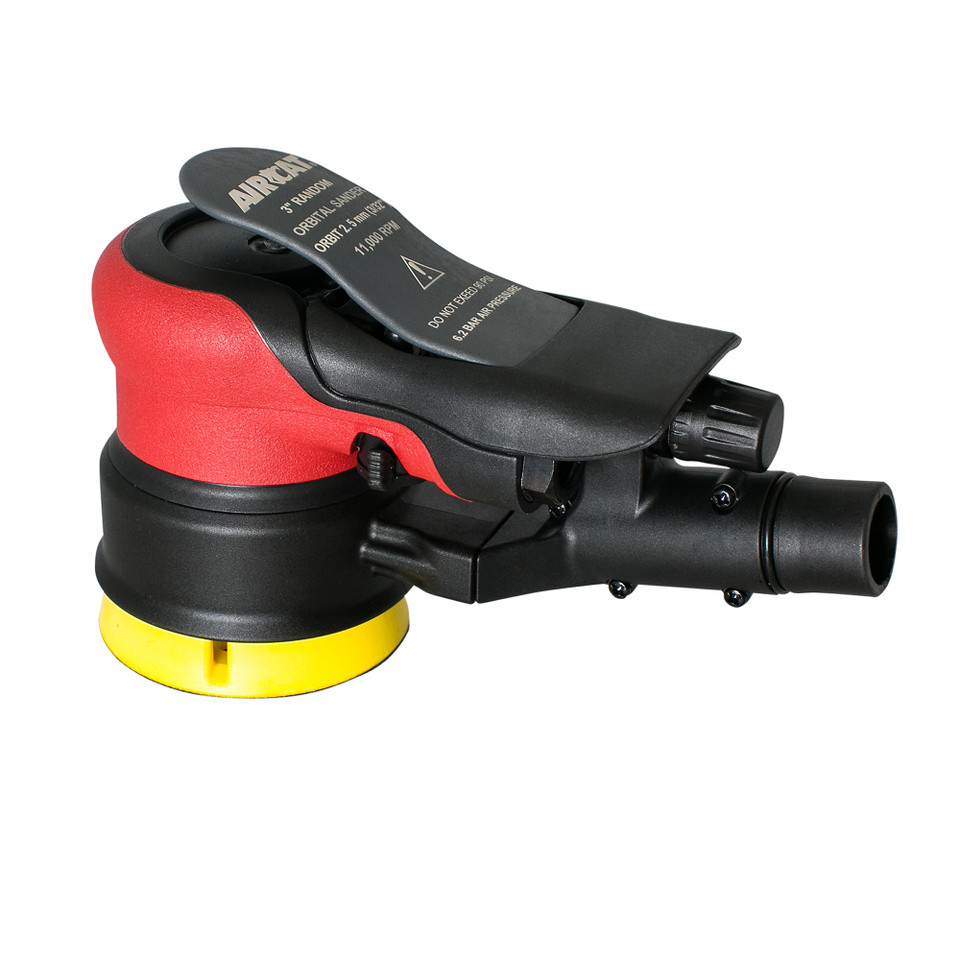

Built for professional surface finishing, paint preparation, and polishing applications, the AIRCAT 6700-3-336CV Central Vac Orbital Palm Sander/Polisher delivers 11,000 RPM free speed with a 3" pad size for controlled sanding and polishing on smaller work areas. The 3/32" orbit creates a fine orbital motion suited for blending, finishing, and surface refinement, while the central vacuum design helps connect the tool to dust extraction systems for improved debris management during sanding operations.
The AIRCAT 6700-3-336CV combines a compact palm-style configuration with central vacuum capability, making it a practical choice for environments where surface cleanliness and controlled finishing are important. The hook and loop pad attachment allows quick abrasive changes, while the 3" pad size provides access for detail work in automotive refinishing, fabrication, and maintenance applications.
Type: Central Vac Orbital Palm Sander/Polisher | Model: 6700-3-336CV | Pad Size: 3" | Free Speed: 11,000 RPM | Orbit Diameter: 3/32" | Pad Attachment: Hook & Loop
Features:
- Central vacuum orbital palm sander/polisher configuration supports connection to compatible dust extraction systems.
- 11,000 RPM free speed provides rapid abrasive movement for sanding and polishing applications.
- 3" pad size supports detail finishing work on smaller surfaces and components.
- 3/32" orbit provides controlled orbital movement for blending and fine surface finishing.
- Hook and loop pad attachment allows quick changes between compatible abrasives and polishing pads.
- Compact palm-style design supports maneuverability during detailed sanding and polishing operations.
Applications:
- Automotive refinishing and body shops: preparing paint surfaces, blending repair areas, and performing detail sanding with dust extraction capability.
- Vehicle restoration and detailing: supporting polishing and finishing tasks on smaller vehicle surfaces and components.
- Metal fabrication: smoothing and preparing small metal parts before coating or final finishing.
- Industrial maintenance and MRO: handling localized surface preparation where debris control is beneficial.
- Workshop finishing projects: providing controlled sanding and polishing capability for detailed applications.
FAQs:
- Q: What is the advantage of a central vacuum orbital sander?
A: A central vacuum model allows connection to a compatible dust extraction system to help collect sanding debris during operation and maintain a cleaner work area. - Q: What does a 3/32" orbit mean on this palm sander?
A: Orbit size describes the movement pattern of the sanding pad. A 3/32" orbit provides a controlled sanding action suited for blending and fine finishing work. - Q: What abrasives fit the AIRCAT 6700-3-336CV?
A: The sander uses a 3" pad with hook and loop attachment. Select compatible 3" hook and loop abrasives or polishing pads for the application. - Q: Is this model suitable for automotive paint work?
A: Yes, the compact 3" pad size and orbital action make it suited for detail sanding, blending, and finishing tasks in automotive refinishing applications.
| SKU | Description | Pad Size (in) |
Pad Thread (in) |
Orbit (in) |
Pad Type |
Pad Holes |
Free Speed (RPM) |
Weight (lbs) |
Length W/Pad Fitted (in) |
Width W/Pad Fitted (in) |
Height W/Pad Fitted (in) |
Noise Level d(B)A |
Vibration m/sec2 |
Average Air Cons. (CFM) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6700-1-332 | Non Vac Nib Palm Sander | 1 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 8,000 | 1.7 | 6.7 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336 | Non Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 1.8 | 5.5 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336CV | Central Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 1.8 | 7.2 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336 | Non Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.7 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336CV | Central Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6G | Non Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.4 | 10.2 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-6GCV | Central Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 900 | 3.4 | 11.0 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8G | Non Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.5 | 11.2 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8GCV | Central Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | 8 | 900 | 3.5 | 12.0 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
Looking for more information about the Aircat Pneumatic Orbital Palm Sandes? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
