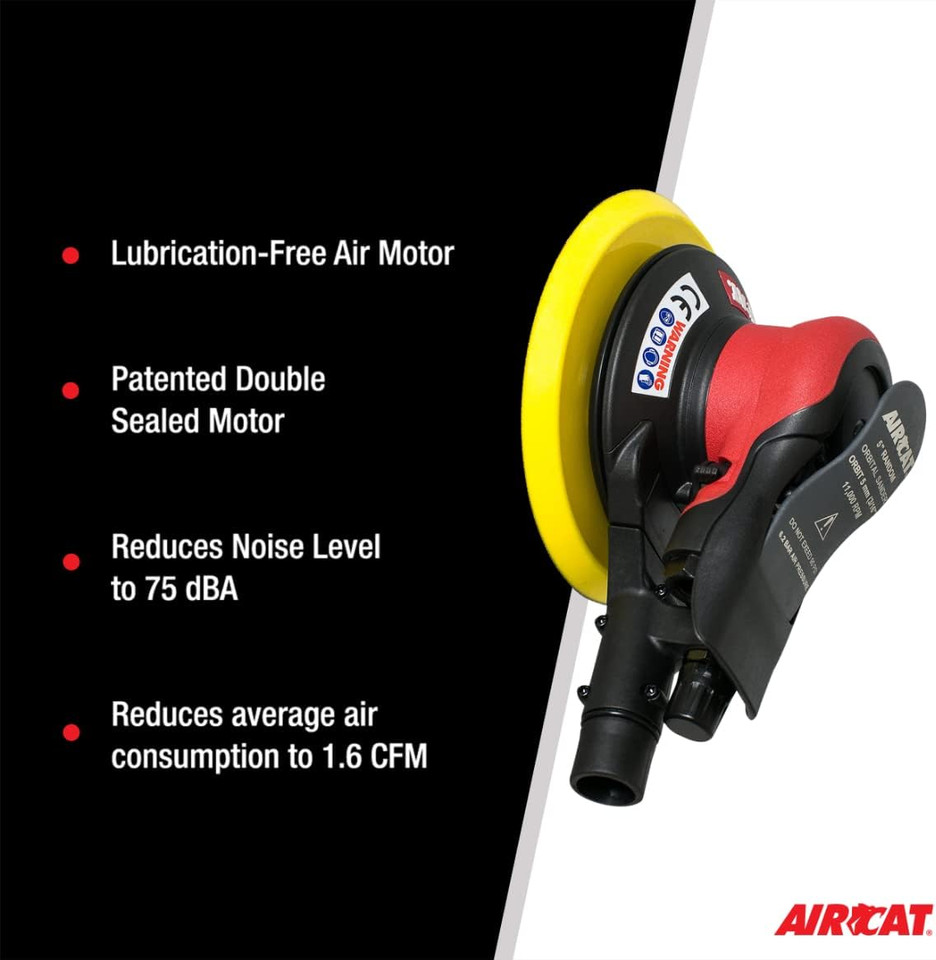

Built for professional surface preparation, blending, and finishing applications, the AIRCAT 6700-5-336CV Central Vac Orbital Palm Sander delivers 11,000 RPM free speed with a larger 5" pad size for efficient sanding across automotive, fabrication, and maintenance surfaces. The 3/16" orbit provides a broader orbital sanding pattern suited for material removal, surface blending, and finishing work, while the central vacuum configuration allows connection to compatible dust extraction systems for improved debris control.
The AIRCAT 6700-5-336CV combines a 5" orbital palm sander design with central vacuum capability to support cleaner sanding operations in professional environments. Its hook and loop pad attachment allows quick abrasive changes, while the compact palm-style configuration provides control during larger-area sanding, refinishing, and surface preparation tasks.
Type: Central Vac Orbital Palm Sander | Model: 6700-5-336CV | Pad Size: 5" | Free Speed: 11,000 RPM | Orbit Diameter: 3/16" | Pad Attachment: Hook & Loop
Features:
- Central vacuum orbital palm sander configuration supports connection to compatible dust extraction systems.
- 11,000 RPM free speed provides rapid abrasive movement for sanding, blending, and finishing applications.
- 5" pad size provides broader surface coverage for larger sanding areas compared with smaller detail pads.
- 3/16" orbit creates a wider sanding pattern for surface preparation and material removal tasks.
- Hook and loop pad attachment allows quick changes between compatible sanding discs.
- Compact palm-style design provides operator control during professional refinishing and maintenance work.
Applications:
- Automotive refinishing: preparing vehicle panels, blending repair areas, and smoothing surfaces before paint application.
- Body shops and restoration facilities: performing controlled sanding work while supporting dust extraction requirements.
- Metal fabrication: finishing fabricated components, removing surface imperfections, and preparing parts for coating.
- Industrial maintenance and MRO: supporting surface preparation tasks where cleaner sanding operation is beneficial.
- Workshop finishing projects: providing pneumatic sanding capability for repair, restoration, and general finishing applications.
FAQs:
- Q: What is the advantage of a central vacuum orbital sander?
A: A central vacuum orbital sander can be connected to a compatible dust extraction system to help collect sanding debris during operation and maintain a cleaner workspace. - Q: What does a 3/16" orbit mean on the AIRCAT 6700-5-336CV?
A: Orbit size describes the movement pattern of the sanding pad. A 3/16" orbit provides a broader sanding action suited for blending and surface preparation tasks. - Q: What abrasives fit the AIRCAT 6700-5-336CV?
A: The tool uses a 5" pad with hook and loop attachment. Use compatible 5" hook and loop sanding discs for the intended application. - Q: Is this model suitable for automotive refinishing?
A: Yes, the 5" pad size and orbital action make this model suitable for sanding, blending, and surface preparation work in automotive refinishing environments.
| SKU | Description | Pad Size (in) |
Pad Thread (in) |
Orbit (in) |
Pad Type |
Pad Holes |
Free Speed (RPM) |
Weight (lbs) |
Length W/Pad Fitted (in) |
Width W/Pad Fitted (in) |
Height W/Pad Fitted (in) |
Noise Level d(B)A |
Vibration m/sec2 |
Average Air Cons. (CFM) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6700-1-332 | Non Vac Nib Palm Sander | 1 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 8,000 | 1.7 | 6.7 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336 | Non Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 1.8 | 5.5 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336CV | Central Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 1.8 | 7.2 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336 | Non Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.7 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336CV | Central Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6G | Non Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.4 | 10.2 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-6GCV | Central Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 900 | 3.4 | 11.0 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8G | Non Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.5 | 11.2 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8GCV | Central Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | 8 | 900 | 3.5 | 12.0 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
Looking for more information about the Aircat Pneumatic Orbital Palm Sanders? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
