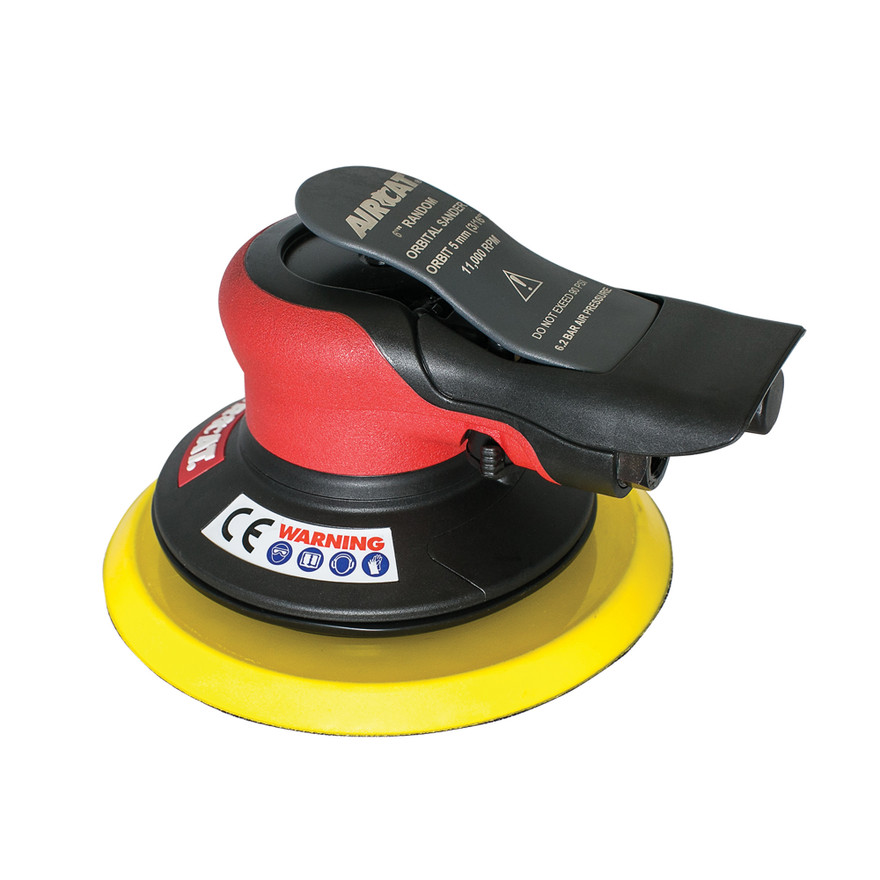

Built for professional surface preparation, blending, and finishing applications, the AIRCAT 6700-6-336 Non Vac Orbital Palm Sander delivers 11,000 RPM free speed with a large 6" pad size for efficient sanding across automotive, fabrication, and maintenance surfaces. The 3/16" orbit provides a broader orbital sanding pattern suited for material removal, surface blending, and general finishing work, while the hook and loop attachment allows quick abrasive changes during sanding operations.
The AIRCAT 6700-6-336 features a non-vacuum orbital palm sander configuration designed for applications where external dust extraction is not required. Its larger 6" pad provides increased coverage compared with smaller detail sanders, making it a practical option for technicians working on larger panels, assemblies, and surface preparation projects where controlled orbital sanding performance is needed.
Type: Non Vac Orbital Palm Sander | Model: 6700-6-336 | Pad Size: 6" | Free Speed: 11,000 RPM | Orbit Diameter: 3/16" | Pad Attachment: Hook & Loop
Features:
- Non-vacuum orbital palm sander design provides a practical solution for general sanding and surface finishing applications.
- 11,000 RPM free speed delivers rapid abrasive movement for sanding, blending, and material preparation tasks.
- 6" pad size provides increased surface coverage for larger work areas compared with smaller sanding pads.
- 3/16" orbit creates a wider sanding pattern suited for surface preparation and material removal applications.
- Hook and loop pad attachment allows quick changes between compatible sanding discs.
- Palm-style configuration supports operator control during extended sanding operations.
Applications:
- Automotive refinishing: preparing vehicle panels, blending repair areas, and smoothing surfaces before painting or coating.
- Body shops and restoration facilities: performing controlled sanding operations on larger surface areas.
- Metal fabrication: finishing components, removing surface imperfections, and preparing parts for additional processing.
- Industrial maintenance and MRO: supporting surface preparation work on equipment parts and assemblies.
- Workshop finishing projects: providing pneumatic sanding capability for repair, restoration, and general finishing applications.
FAQs:
- Q: What is the advantage of a 6" orbital palm sander?
A: A 6" pad provides greater surface coverage than smaller pad sizes, helping users complete larger sanding areas while maintaining orbital sanding control. - Q: What does a 3/16" orbit mean on the AIRCAT 6700-6-336?
A: Orbit size describes the movement pattern of the sanding pad. A 3/16" orbit provides a broader sanding action suited for surface preparation and blending tasks. - Q: What abrasives fit the AIRCAT 6700-6-336?
A: The sander uses a 6" pad with hook and loop attachment. Use compatible 6" hook and loop sanding discs for the intended application. - Q: Is this model equipped for vacuum dust extraction?
A: This model is identified as a non-vacuum orbital palm sander and does not include a vacuum extraction configuration.
| SKU | Description | Pad Size (in) |
Pad Thread (in) |
Orbit (in) |
Pad Type |
Pad Holes |
Free Speed (RPM) |
Weight (lbs) |
Length W/Pad Fitted (in) |
Width W/Pad Fitted (in) |
Height W/Pad Fitted (in) |
Noise Level d(B)A |
Vibration m/sec2 |

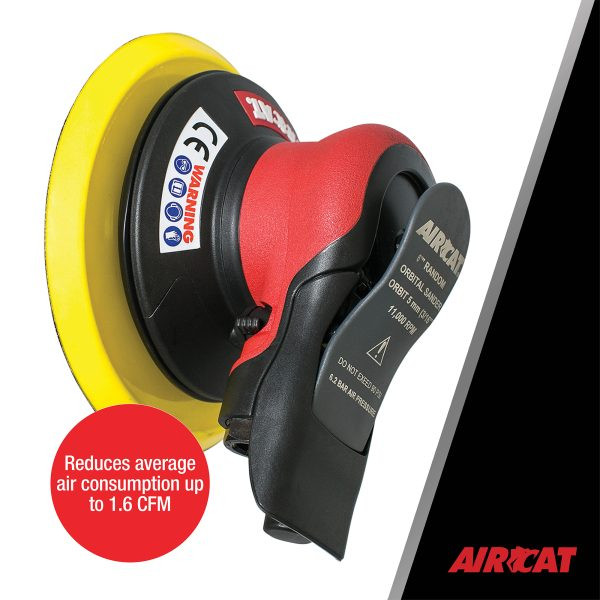

Average Air Cons. (CFM) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6700-1-332 | Non Vac Nib Palm Sander | 1 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 8,000 | 1.7 | 6.7 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336 | Non Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 1.8 | 5.5 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336CV | Central Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 1.8 | 7.2 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336 | Non Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.7 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336CV | Central Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6G | Non Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.4 | 10.2 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-6GCV | Central Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 900 | 3.4 | 11.0 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8G | Non Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.5 | 11.2 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8GCV | Central Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | 8 | 900 | 3.5 | 12.0 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
Looking for more information about the Aircat Pneumatic Orbital Palm Sanders? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Orbital Palm Sander
- Pad Size (in.)
- 6
- Pad Thread (in.)
- 5/16 x 24
- Orbit (in.)
- 3/16
- Pad Type
- Hook & Loop
- RPM
- 11000
- Noise Level d(B)A
- 75
- Vibration m/sec2
- 1.8
