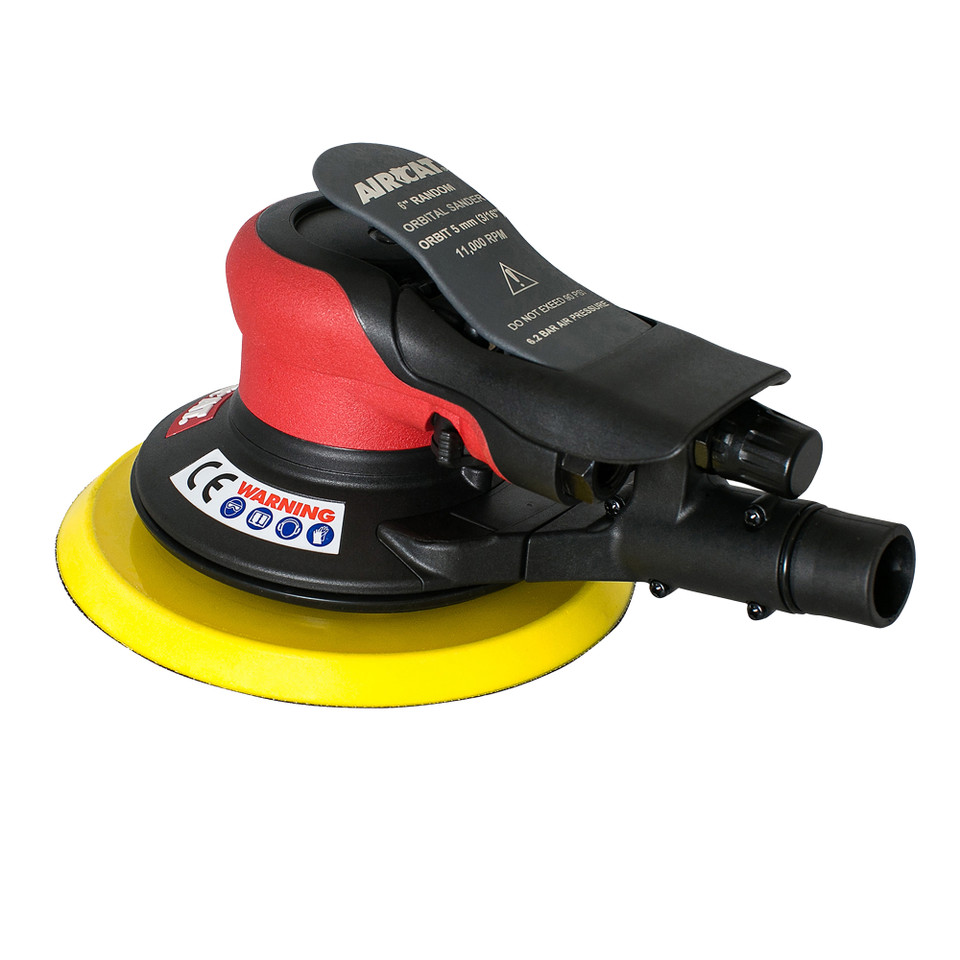

Built for professional surface preparation, blending, and finishing applications, the AIRCAT 6700-6-336CV Central Vac Orbital Palm Sander delivers 11,000 RPM free speed with a large 6" pad size for efficient sanding across automotive, fabrication, and maintenance surfaces. The 3/16" orbit provides a broader orbital sanding pattern suited for material removal, surface blending, and general finishing work, while the central vacuum configuration allows connection to compatible dust extraction systems for improved debris management during sanding operations.
The AIRCAT 6700-6-336CV combines a 6" orbital palm sander design with central vacuum capability to support cleaner sanding processes in professional environments. Its hook and loop pad attachment allows quick abrasive changes, while the palm-style configuration provides operator control for larger-area finishing, repair, and surface preparation tasks.
Type: Central Vac Orbital Palm Sander | Model: 6700-6-336CV | Pad Size: 6" | Free Speed: 11,000 RPM | Orbit Diameter: 3/16" | Pad Attachment: Hook & Loop
Features:
- Central vacuum orbital palm sander configuration supports connection to compatible dust extraction systems.
- 11,000 RPM free speed provides rapid abrasive movement for sanding, blending, and finishing applications.
- 6" pad size provides increased surface coverage for larger sanding areas compared with smaller pad configurations.
- 3/16" orbit creates a wider sanding pattern suited for surface preparation and material removal tasks.
- Hook and loop pad attachment allows quick changes between compatible sanding discs.
- Palm-style design supports maneuverability and operator control during professional sanding operations.
Applications:
- Automotive refinishing: preparing vehicle panels, blending repair areas, and smoothing surfaces before painting or coating.
- Body shops and restoration facilities: performing controlled sanding operations while supporting dust extraction requirements.
- Metal fabrication: finishing components, removing surface imperfections, and preparing parts for additional processing.
- Industrial maintenance and MRO: supporting surface preparation work where cleaner sanding operation is beneficial.
- Workshop finishing projects: providing pneumatic sanding capability for repair, restoration, and general finishing applications.
FAQs:
- Q: What is the advantage of a central vacuum orbital palm sander?
A: A central vacuum orbital palm sander can connect to a compatible dust extraction system to help collect sanding debris during operation and maintain a cleaner work area. - Q: What does a 3/16" orbit mean on the AIRCAT 6700-6-336CV?
A: Orbit size describes the movement pattern of the sanding pad. A 3/16" orbit provides a broader sanding action suited for blending, surface preparation, and material removal tasks. - Q: What abrasives fit the AIRCAT 6700-6-336CV?
A: The tool uses a 6" pad with hook and loop attachment. Use compatible 6" hook and loop sanding discs for the intended application. - Q: How is a central vacuum sander different from a non-vacuum model?
A: A central vacuum model is designed to connect to an external dust extraction system, helping manage sanding debris during operation.
| SKU | Description | Pad Size (in) |
Pad Thread (in) |
Orbit (in) |
Pad Type |
Pad Holes |
Free Speed (RPM) |
Weight (lbs) |
Length W/Pad Fitted (in) |
Width W/Pad Fitted (in) |
Height W/Pad Fitted (in) |
Noise Level d(B)A |
Vibration m/sec2 |
Average Air Cons. (CFM) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6700-1-332 | Non Vac Nib Palm Sander | 1 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 8,000 | 1.7 | 6.7 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336 | Non Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 1.8 | 5.5 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336CV | Central Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 1.8 | 7.2 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336 | Non Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.7 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336CV | Central Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6G | Non Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.4 | 10.2 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-6GCV | Central Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 900 | 3.4 | 11.0 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8G | Non Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.5 | 11.2 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8GCV | Central Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | 8 | 900 | 3.5 | 12.0 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
Looking for more information about the Aircat Pneumatic Orbital Palm Sanders? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
