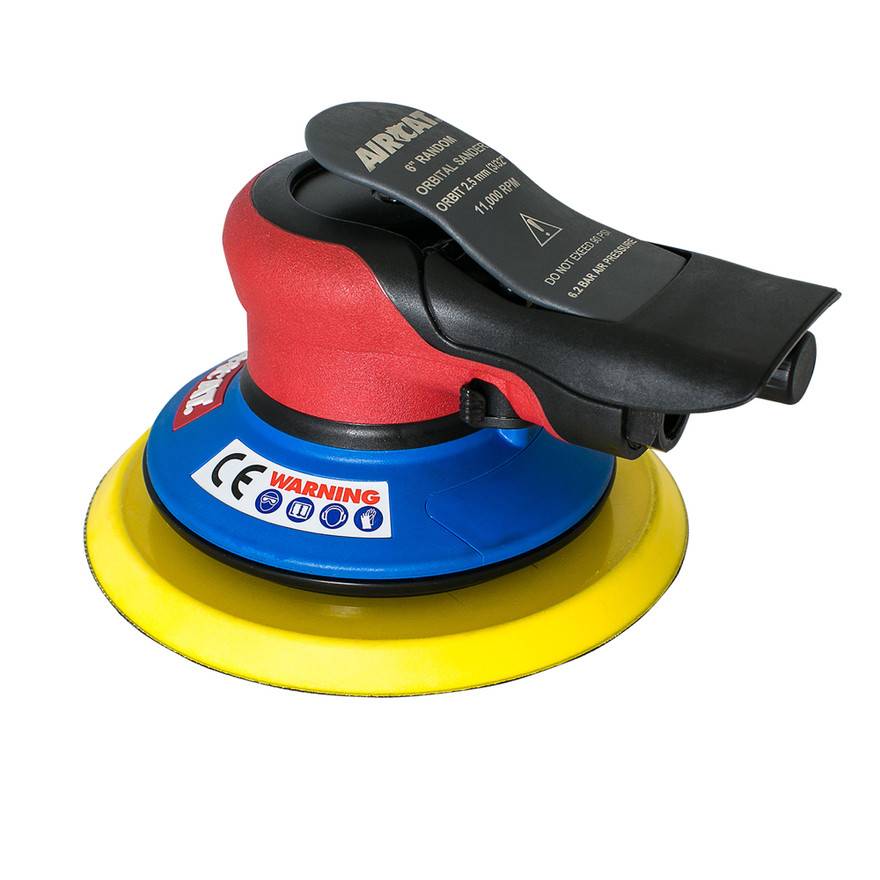

Built for professional surface preparation, blending, and finishing applications, the AIRCAT 6700-6-332 Non Vac Orbital Palm Sander delivers 11,000 RPM free speed with a larger 6" pad size for efficient sanding across automotive, fabrication, and maintenance surfaces. The 3/32" orbit provides a controlled orbital sanding pattern suited for fine finishing, blending, and surface refinement, while the hook and loop attachment allows quick abrasive changes during sanding operations.
The AIRCAT 6700-6-332 features a non-vacuum orbital palm sander configuration designed for general sanding applications where external dust extraction is not required. Its larger 6" pad provides increased surface coverage compared with smaller detail sanders, making it a practical option for technicians working on panels, assemblies, and broader finishing areas.
Type: Non Vac Orbital Palm Sander | Model: 6700-6-332 | Pad Size: 6" | Free Speed: 11,000 RPM | Orbit Diameter: 3/32" | Pad Attachment: Hook & Loop
Features:
- Non-vacuum orbital palm sander design provides a practical solution for surface preparation and finishing applications.
- 11,000 RPM free speed delivers rapid abrasive movement for sanding, blending, and finishing work.
- 6" pad size provides expanded surface coverage for larger sanding areas.
- 3/32" orbit creates a controlled sanding pattern suited for fine finishing and surface blending.
- Hook and loop pad attachment allows quick changes between compatible sanding discs.
- Palm-style configuration supports operator control during extended sanding operations.
Applications:
- Automotive refinishing: preparing vehicle panels, blending repair areas, and smoothing surfaces before painting or coating.
- Body shops and restoration facilities: performing controlled sanding operations on larger surface areas.
- Metal fabrication: finishing components, removing surface imperfections, and preparing parts for additional processing.
- Industrial maintenance and MRO: supporting general surface preparation work on equipment and assemblies.
- Workshop finishing projects: providing pneumatic sanding capability for repair, restoration, and finishing tasks.
FAQs:
- Q: What is the benefit of a 6" orbital palm sander?
A: A 6" pad provides greater sanding coverage than smaller pad sizes, helping users work more efficiently on larger surfaces while maintaining orbital sanding control. - Q: What does a 3/32" orbit mean on the AIRCAT 6700-6-332?
A: Orbit size describes the movement pattern of the sanding pad. A 3/32" orbit provides a controlled sanding action suited for blending and finishing applications. - Q: What abrasives fit the AIRCAT 6700-6-332?
A: The sander uses a 6" pad with hook and loop attachment. Use compatible 6" hook and loop sanding discs for the intended application. - Q: Is this model equipped for vacuum dust extraction?
A: This model is identified as a non-vacuum orbital palm sander and does not include a vacuum extraction configuration.
| SKU | Description | Pad Size (in) |
Pad Thread (in) |
Orbit (in) |
Pad Type |
Pad Holes |
Free Speed (RPM) |
Weight (lbs) |
Length W/Pad Fitted (in) |
Width W/Pad Fitted (in) |
Height W/Pad Fitted (in) |
Noise Level d(B)A |
Vibration m/sec2 |
Average Air Cons. (CFM) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6700-1-332 | Non Vac Nib Palm Sander | 1 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 8,000 | 1.7 | 6.7 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336 | Non Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 1.8 | 5.5 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336CV | Central Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 1.8 | 7.2 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336 | Non Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.7 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336CV | Central Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6G | Non Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.4 | 10.2 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-6GCV | Central Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 900 | 3.4 | 11.0 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8G | Non Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.5 | 11.2 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8GCV | Central Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | 8 | 900 | 3.5 | 12.0 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
Looking for more information about the Aircat Pneumatic Orbital Palm Sanders? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
