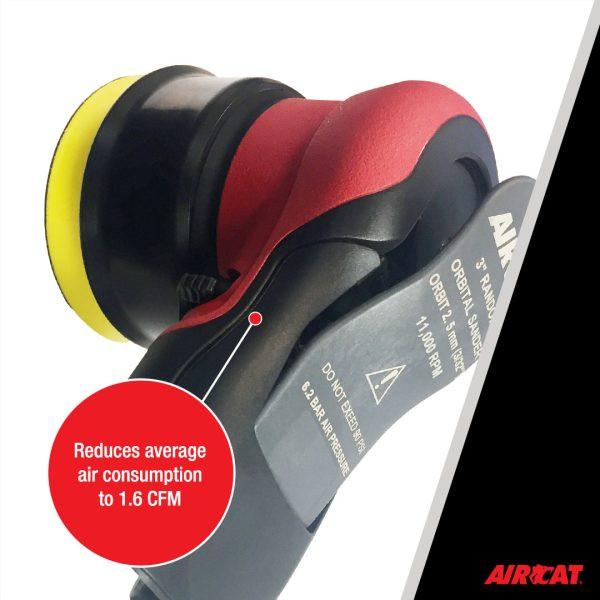

Built for surface finishing, polishing, and detail sanding applications, the AIRCAT 6700-3-336 Non Vac Orbital Palm Sander/Polisher delivers 11,000 RPM free speed with a 3" pad size for controlled abrasive and polishing work in automotive, fabrication, and maintenance environments. The 3/32" orbit creates a fine orbital sanding pattern suited for blending, finishing, and surface preparation, while the hook and loop attachment allows quick abrasive and pad changes.
The AIRCAT 6700-3-336 combines a compact palm-style design with orbital sanding and polishing capability, giving technicians a versatile pneumatic tool for smaller surface areas and detail work. Its non-vacuum configuration is suited for applications where external dust extraction is not required and precise control is the priority.
Type: Non Vac Orbital Palm Sander/Polisher | Model: 6700-3-336 | Pad Size: 3" | Free Speed: 11,000 RPM | Orbit Diameter: 3/32" | Pad Attachment: Hook & Loop
Features:
- Non-vacuum orbital palm sander/polisher configuration provides a compact solution for finishing and surface preparation work.
- 11,000 RPM free speed delivers fast abrasive movement for sanding and polishing applications.
- 3" pad size supports detail work on smaller surfaces and components.
- 3/32" orbit provides controlled orbital movement for blending and fine finishing tasks.
- Hook and loop pad attachment allows quick changes between compatible abrasives and polishing pads.
- Palm-style design supports maneuverability during detailed sanding and polishing operations.
Applications:
- Automotive refinishing: performing spot sanding, paint blending, surface preparation, and polishing work on vehicle components.
- Body shops and restoration: smoothing repair areas and finishing smaller surfaces where controlled sanding is required.
- Metal fabrication: preparing and finishing small metal components before coating or final assembly.
- Industrial maintenance and MRO: handling localized surface preparation tasks on equipment parts and assemblies.
- Workshop and detailing projects: providing pneumatic sanding and polishing capability for smaller finishing applications.
FAQs:
- Q: What is the difference between an orbital palm sander and a standard rotary sander?
A: An orbital palm sander moves the pad in a small circular orbit pattern, helping create a more controlled finish. It is commonly used for blending, preparation, and finishing applications. - Q: What does a 3/32" orbit mean on the AIRCAT 6700-3-336?
A: Orbit size describes the movement pattern of the sanding pad. A 3/32" orbit provides a controlled sanding action suited for fine finishing and surface blending. - Q: What accessories fit the AIRCAT 6700-3-336?
A: The tool uses a 3" pad with hook and loop attachment. Use compatible 3" hook and loop abrasives or polishing pads. - Q: Is this model equipped for vacuum dust extraction?
A: This model is identified as a non-vacuum orbital palm sander/polisher and does not include a vacuum extraction configuration.
| SKU | Description | Pad Size (in) |
Pad Thread (in) |
Orbit (in) |
Pad Type |
Pad Holes |
Free Speed (RPM) |
Weight (lbs) |
Length W/Pad Fitted (in) |
Width W/Pad Fitted (in) |
Height W/Pad Fitted (in) |
Noise Level d(B)A |
Vibration m/sec2 |
Average Air Cons. (CFM) |
Air Inlet NPT (in.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6700-1-332 | Non Vac Nib Palm Sander | 1 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 8,000 | 1.7 | 6.7 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336 | Non Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 1.8 | 5.5 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-3-336CV | Central Vac Orbital Palm Sander/Polisher | 3 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 1.8 | 7.2 | 3.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336 | Non Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.7 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-5-336CV | Central Vac Orbital Palm Sander | 5 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 5.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-332SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/32 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336 | Non Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 11,000 | 2.0 | 6.8 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336CV | Central Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.4 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6-336SV | Self Vac Orbital Palm Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 11,000 | 2.0 | 8.1 | 6.0 | 4.3 | 75 | 1.8 | 1.6 | 1/4 |
| 6700-6G | Non Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.4 | 10.2 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-6GCV | Central Vac Geared Planetary Motion Sander | 6 | 5/16 x 24 | 3/16 | Hook & Loop | 6 | 900 | 3.4 | 11.0 | 6.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8G | Non Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | NA | 900 | 3.5 | 11.2 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
| 6700-8GCV | Central Vac Geared Planetary Motion Sander | 8 | 5/16 x 24 | 3/16 | Hook & Loop | 8 | 900 | 3.5 | 12.0 | 8.0 | 4.5 | 78 | 2.5 | 3.0 | 1/4 |
Looking for more information about the Aircat Pneumatic Orbital Palm Sanders? For help choosing the correct Aircat Pneumatic Tools, please call (800) 608-5210 or email info@intlairtool.com
- Type
- Orbital Palm Sander/Polisher
- Pad Size (in.)
- 3
- Pad Thread (in.)
- 5/16 x 24
- Orbit (in.)
- 3/32
- Pad Type
- Hook & Loop
- RPM
- 11000
- Noise Level d(B)A
- 75
- Vibration m/sec2
- 1.8
